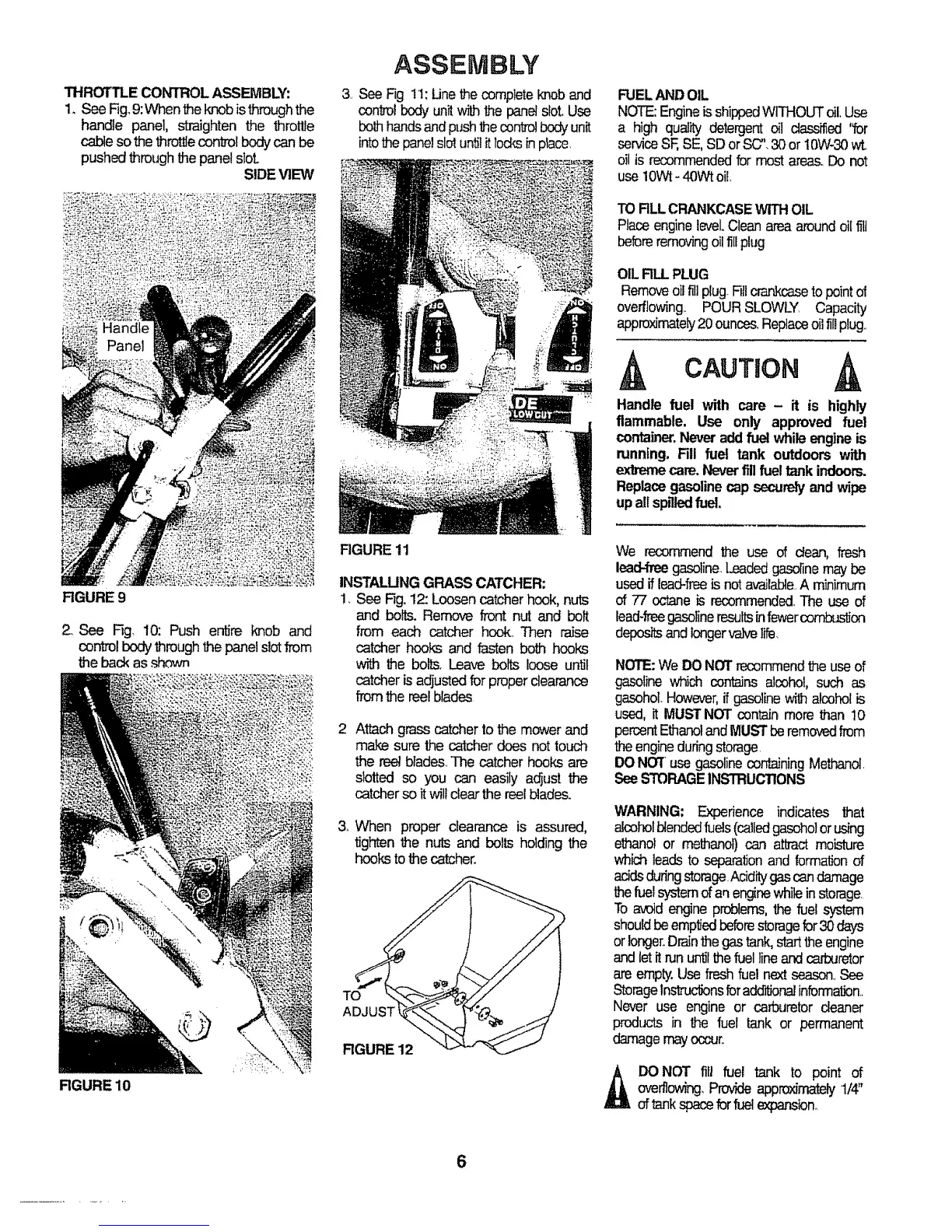

THROTTLECONTROLASSEMBLY:
1oSee Fig,9:When theknobisthroughthe
handle panel, straighten the throttle
cableso thethrottlecontrolbodycan be
pushedthroughthe panel slot.
SIDE VIEW
FIGURE 9
2, See Fig, 10: Push en_Jreknob and
controlbody throughthe panelslotfrom
the back as,_own
RGURE 10
ASSEMBLY
3, See Fig 11:Unethecompleteknoband
controlbody unitwith the panelslot.Use
bothhandsandpushthecontrolbodyunit
intothepanelslo!unfititlocksin place,
FIGURE 11
INSTALUNGGRASS CATCHER:
!, See Fig.12: Loosen catcher hook, nuts
and bolts. Remove front nut and bolt
from each catcher hook, Then raise
catcher hooks and fasten beth hooks
with the bolls. Leave bolts loose until
catcherisadjustedfor proper clearance
from the reelblades
Attachgrass catcherto the mower and
make sure the catcherdoes not touch
the reel blades The catcherhooks are
slotted so you can easily adjust the
catcherso itwillclearthe reelblades.
& When proper clearance is assured,
tighten the nuts and bolts holding the
hookstothe catcher.
TO
ADJU;
FIGURE 12
FUELANDOIL
NOTE:Engineis shippedWITHOUToil.Use
a high quality detergent oil dashed 'for
serviceSF,SE,SD orSC".30or t0W-30 wt
oil is recommendedfor most area& Do not
use 1OWl-40Wt oil,
TORLLCRANKCASEWITHOIL
Placeenginelevel.,Cleanarea aroundoil flU
beforeremovingoilfillplug
OILR_ PLUG
Removeoilfillplug.Fillcrarakcasetopointof
overflowing POURSLOWLY, Capacity
approximately20ounces.Replaceoilfillplug
CAUTION
Handle fuel with rare - it is highly
flammable. Use only approved fuel
container.Neveraddfuel whileengineis
running. Fill fuel tank outdoors with
extremecare,Neverfillfuel tankindoors.
Replacegasolinecap securelyandwipe
upall spilledfuel.
We recommend the use of dean, fresh
lead4me gasolineLeadedgasolinemay be
usedif lead-freeis notavailableA minimum
of 77 octane is recommendedThe use of
lead4reegasolineresultsinfewercombustion
depositsandlongervak,e life,
NOTE:WeDONOT recommendthe use of
gasolinewhich contains alcohol, such as
gasohoLHowever,if gasolinewith alcoholis
used, it MUSTNOT contain more than 10
percentEthanolandMUSTberemovedfrom
1heengineduringstorage
IX) NOT usegasolinecontainingMethanol
SeeSTORAGEINSTRUCTIONS
WARNING: Experience indicates that
alcoholblendedfuels(calledgasoho]or using
ethanol or methanol)can attract moisture
which leadsto separationand forma_onof
addsduringstorageAciditygascandamage
thefuelsystemofaqenginewhileinstorage
Toavoid engineproblems,the fuel system
shouldbeemptiedbeforestoragefor30days
orlonger°Drainthegastank.,starttheengine
andletitrun u_l thefuel lineand cad3uretor
areempty.Use fresh fuelnext season,,See
Storagel_ns foradcrr_bnalinformalbn.
Never use engine or carburetor cleaner
products in the fuel tank or permanent
damagemayoccur,,
_ DONOT rift fuel tank to point of
overflowing,Provideapproximat_y1/4"
oftankspaceforfuelexpansion_
6
