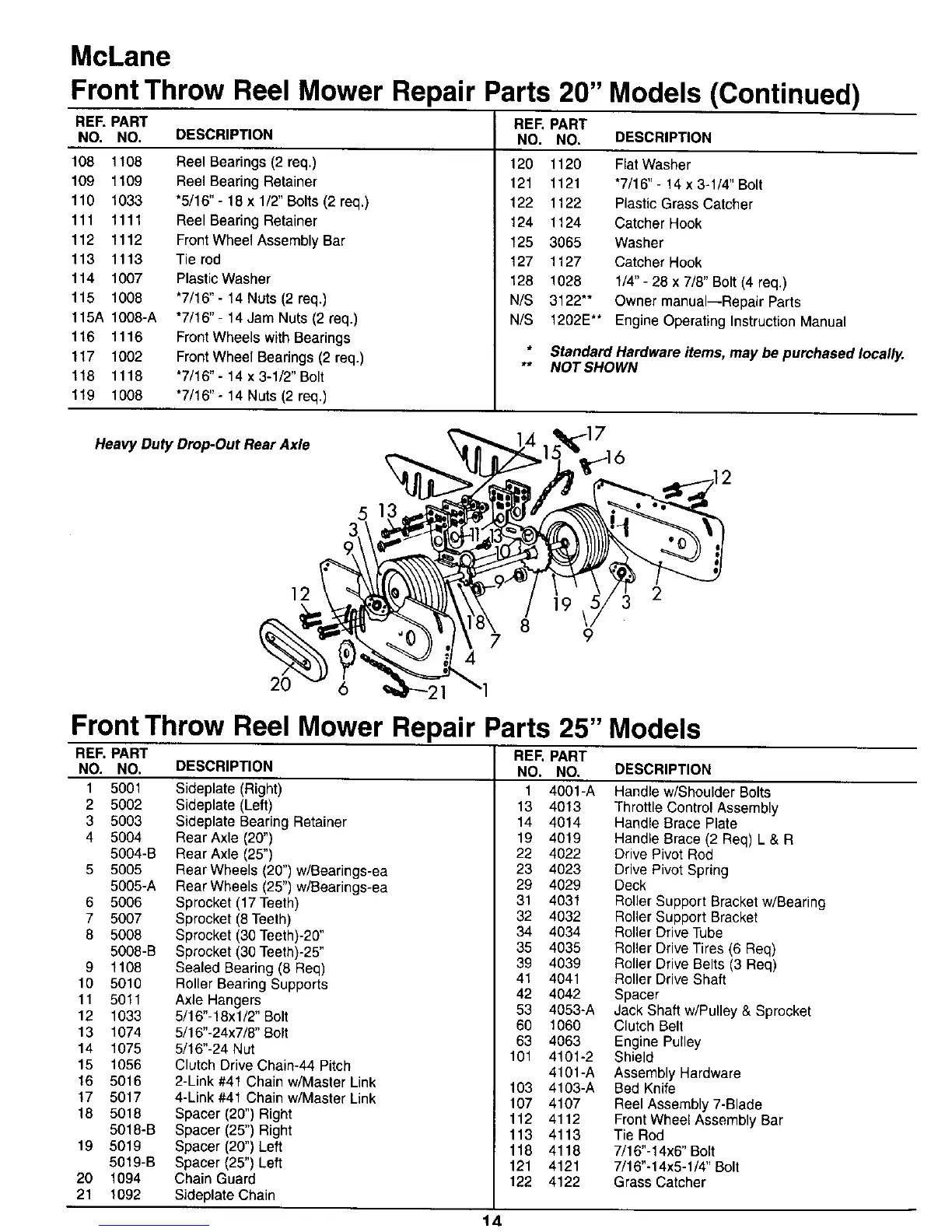

Mclane Throw Reel Mower - Repair Parts List (20 Models Continued)

McLane
Front Throw Reel Mower Repair Parts 20" Models (Continued)
REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
108 1t08
109 1109
110 1033
111 1111
112 1112
113 1113
114 1007
115 1008
115A 1008-A
116 1116
117 1002
118 1118
119 1008
Reel Bearings (2 req.)
Reel Bearing Retainer
"5/16" - 18 x 1/2"Bolts (2 req.)
Reel Bearing Retainer
Front Wheel Assembly Bar
Tie rod
Plastic Washer
"7/16"- 14 Nuts (2 req.)
"7/16"- 14 Jam Nuts (2 req.)
Front Wheels with Bearings
Front Wheel Bearings (2 req.)
"7/16" - 14 x 3-1/2" Bolt
"7/16"- 14 Nuts (2 req.)
120 1120 Flat Washer
121 1121 "7/16"- 14 x 3-1/4" Bolt
122 1122 Plastic Grass Catcher
124 1124 Catcher Hook
125 3065 Washer
127 1127 Catcher Hook
128 1028 1/4" - 28 x 7/8" Bolt (4 req.)
N/S 3122"* Owner manual--Repair Parts
N/S 1202E** Engine Operating Instruction Manual
Standard Hardware items, may be purchased locally.
NOT SHOWN
Heavy Duty DropOut Rear Axle
5
12 3 2
2O
4
6
7
8
9
Front Throw Reel Mower Repair Parts 25" Models
REF.PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 5001 Sideplate (Right)
2 5002 Sideplate (Left)
3 5003 Sideplate Bearing Retainer
4 5004 Rear Axle (20")
5004-B Rear Axle (25")
5 5005 RearWheels (20") w/Bearings-ea
5005-A RearWheels (25") w/Bearings-ea
6 5006 Sprocket (17Teeth)
7 5007 Sprocket (8 Teeth)
8 5008 Sprocket (30 Teeth)-20"
5008-B Sprocket (30Teeth)-25"
9 1108 Sealed Bearing (8 Req)
10 5010 Roller Bearing Supports
11 5011 Axle Hangers
12 1033 5/16"-18xl/2" Bolt
13 1074 5/16"-24x7/8" Bolt
14 1075 5/16"-24 Nut
15 1056 Clutch Drive Chain-44 Pitch
16 5016 2-Link #41 Chain w/Master Link
t7 5017 4-Link #41 Chain w/Master Link
18 5018 Spacer (20") Right
5018-B Spacer (25") Right
19 5019 Spacer (20") Left
5019-B Spacer (25") Left
20 1094 Chain Guard
21 1092 Sideplate Chain
1 4001-A
13 4013
14 4014
19 4019
22 4022
23 4023
29 4029
31 4031
32 4032
34 4034
35 4035
39 4039
41 4041
42 4042
53 4053-A
60 1060
63 4063
101 4101-2
4101-A
103 4103-A
107 4107
112 4112
113 4113
118 4118
121 4121
122 4122
Handle w/Shoulder Bolts
Throttle Control Assembly
Handle Brace Plate
Handle Brace (2 Req) L & R
Drive Pivot Rod
Drive Pivot Spring
Deck
Roller Support Bracket w/Bearing
Roller Support Bracket
Roller Drive Tube
Roller Drive Tires (6 Req)
Roller Drive Belts (3 Req)
Roller Drive Shaft
Spacer
Jack Shaft w/Pulley & Sprocket
Clutch Belt
Engine Pulley
Shield
Assembly Hardware
Bed Knife
Reel Assembly 7-Blade
Front Wheel Assembly Bar
Tie Rod
7/16"- 14x6" Bolt
7/16"-14x5-1/4" Bolt
Grass Catcher
14
