4.7.2 Float-free enclosure

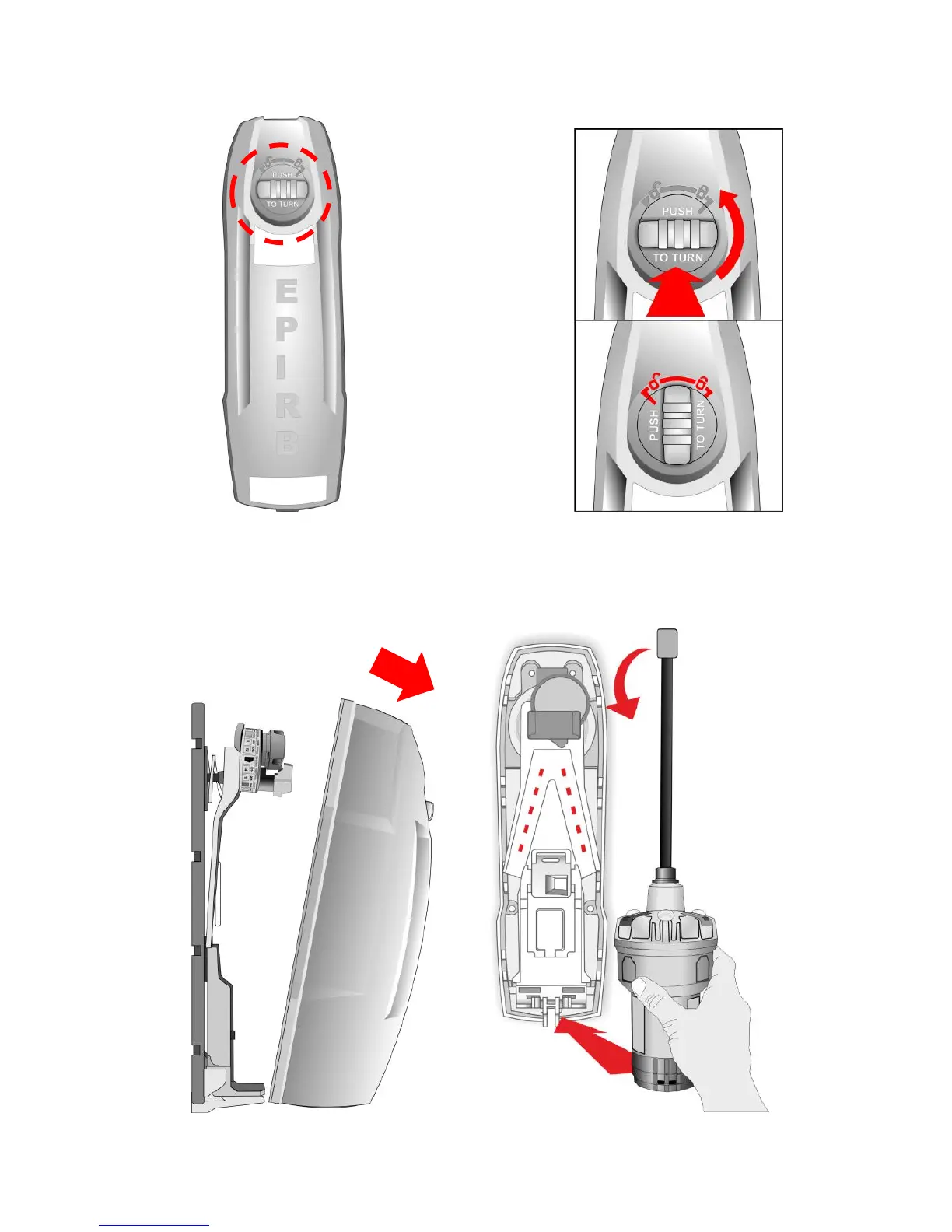

1. Locate the
locking dial.
2. Push the dial in
and turn anti-
clockwise to the
unlocked position.
3. Remove the cover
by pulling the top away
from the bulkhead.
4. Position the EPIRB in the enclosure
with the lanyard towards the rear.
5. Bend the
antenna
backwards
and retain it in
the recess to
left or right.
6. Engage the
base of the
EPIRB into the
recess in the
lever arm.
