© 2008 McNeilus Truck and Manufacturing, Inc.
Rear Loader
42
1.1.3 Fuse Panel

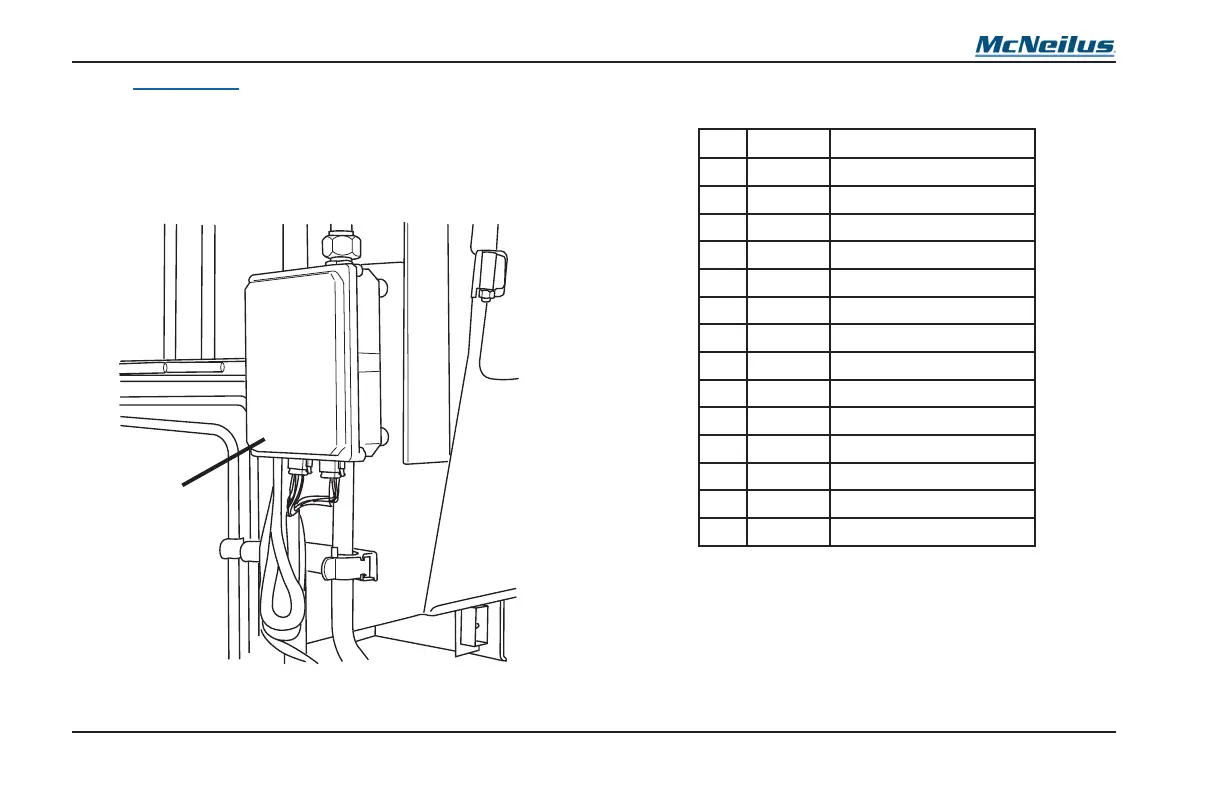

The fuse panel (Figure 10) is located inside the Power
Distribution Model (PDM) (Figure 9, Item 1). The fuse panel
protects the control box from an electrical overload condition.
The PDM is located on the street side head frame behind the
cab. Open the PDM cover to gain access to the fuse panel.
1
Figure 9
The following table describes the fuse locations shown in
Figure 10.
No. Amp Description
1 5 Front Strobe Light
2 5 Strobe/Pump
3 3 Reverse Alarm
4 3 Reverse Alarm
5 2 Tag Axle
6 2 Pusher Axle
7 2 Work Light
8 15 Heater Power
9 10 Light and Spare
10 15 Switch Power
11 2 Buzzer
12 5 Spare
13 5 Proximity Switch Power
14 10 Control Power
Operation
