4.7.7 Water Tank Operation

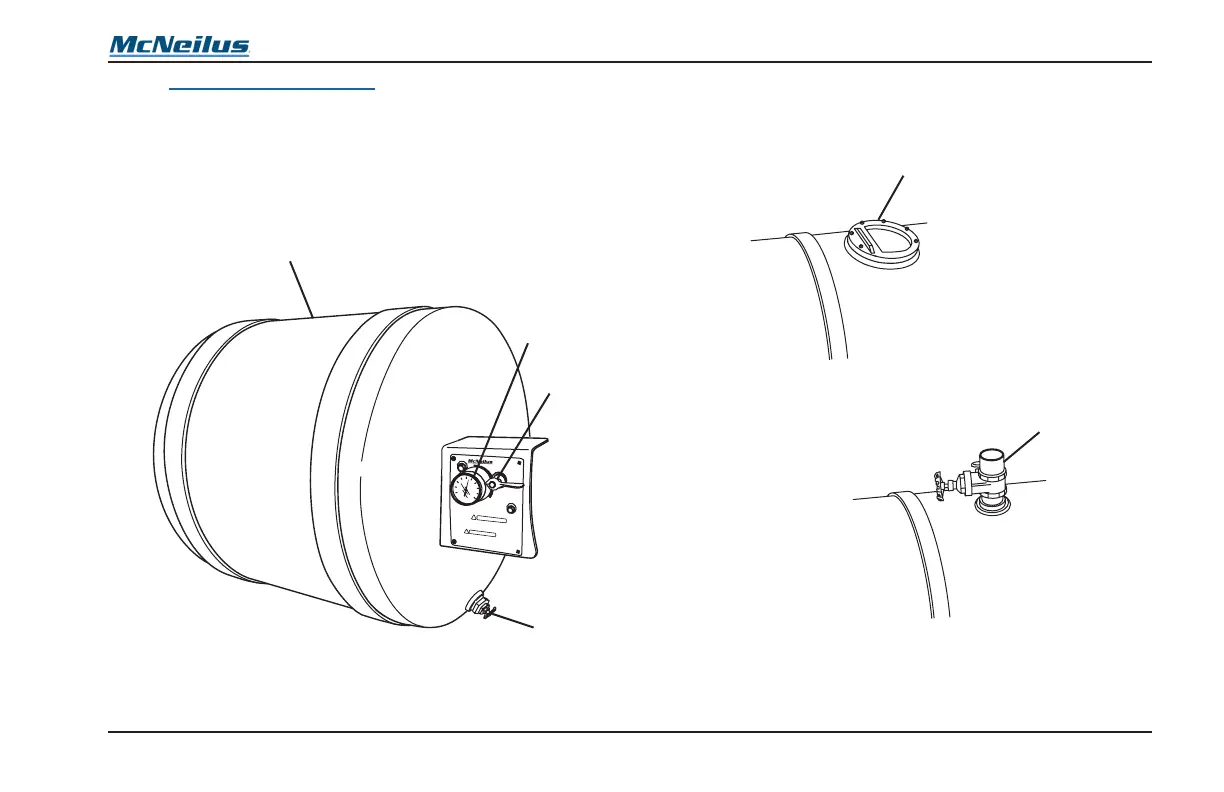

The water tank (Figure 34, Item 1) can be mounted in any one
of several locations, depending on the options your refuse
vehicle is equipped with. The system will be equipped with a
pressure gauge (Figure 34, Item 2), an air pressure control
valve (Figure 34, Item 3), and a drain valve (Figure 34, Item
4).
P
RES
S
U
R
IZE
E
XH
AUST
PR
ESSUR
E
W
A
T
ER
SYS
TEM
O
F
F
W
ARN
IN
ADVERTENCIA
20
0
40
60
8
0
10
0
!
!
G
E
XHAUST
1
2
3
4
Figure 34
4.7.7.1 Filling the Tank
The tank can be lled through the opper valve (Figure 35,
Item 1) or through the optional gate valve (Figure 35, Item 2).
2
1
OR
Figure 35
