McQuay CE 10C User Manual

1-7
English
!
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.

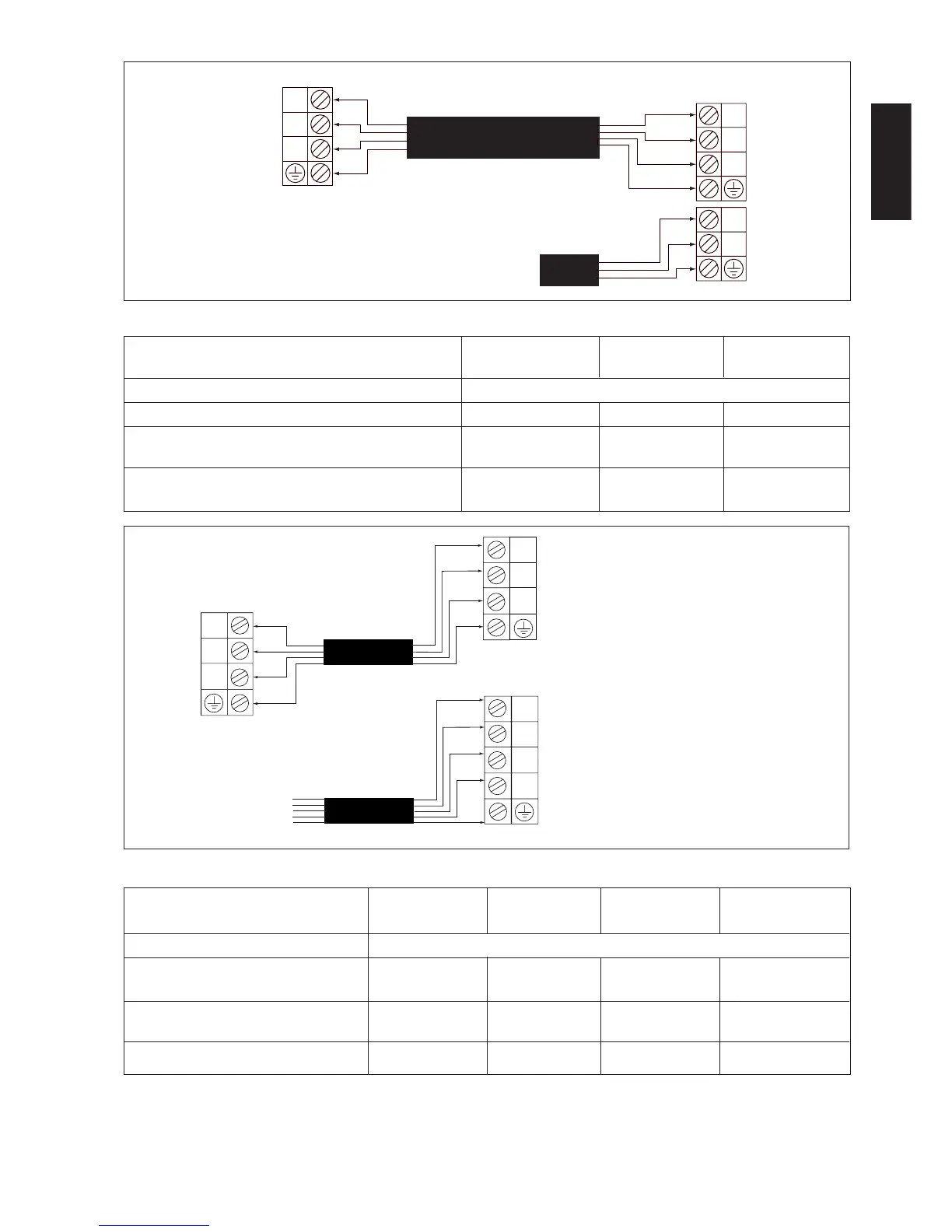

Electrical Wiring Connection For CE Series 40 ~ 62C
Indoor Unit CE 40C CE 50C CE 61C/CE 62C
Outdoor Unit SL 40C SL 50C SL 60C/SL 61C
Voltage range (2) 380V – 420V/3Ph/50Hz+N + ! or 208V-230V/3Ph/60Hz+N+!
Recommended fuse (1) A (50/60Hz) 10/20 16/25 16/25
Power Supply Cable size mm
2
(50/60Hz) 1.5/2.5 2.5/4.0 2.5/4.0
Number of conductors (1) 55 5
Interconnection Cable size mm
2
(50/60Hz) 1.5/1.5 1.5/1.5 1.5/1.5
Number of conductors (1) 44 4
IMPORTANT: (1) These values are for information only, they should be checked and selected to comply with the local and/
or national codes and regulations. They are also subjected to the type of installation and size of conductors
used.
(2) The appropriate voltage range should be checked with label data on the unit. ETL listed unit is only
applicable to 60Hz power supply only.
The electrical power must be provided with
protection devices (circuit breaker or fuse)
with double pole separation system (phase +
neutral) with minimum contact gap of 3mm.
!
COMP
COMP
L
N
L
N
L
N
Terminal Strip
Indoor
Unit
Interconnection Cable
Terminal Strip
Outdoor
Unit
Power Supply
Cable
Terminal Strip
Indoor
Unit
Interconnection Cable
Terminal Strip
Outdoor
Unit
Power Supply
Cable
Electrical Wiring Connection For CE 10/15/20/25CR (Heat Pump)
L
N
COMP
L
N
COMP
S
N
T
R
Indoor Unit CE 10CR CE 15CR CE 20CR CE 25CR
Outdoor Unit SL 10BR SL 15BR SL 20BR SL 25BR
Voltage range (2) 220V – 240V/1Ph/50Hz + ! or 208V – 230V/1Ph/60Hz + !
Power Supply Cable size mm
2
1.5 1.5 2.5 2.5
Number of conductors (1) 33 3 3
Interconnection Cable size mm
2
1.5 1.5 2.5 2.5
Number of conductors (1) 55 5 5
Recommended fuse A 10 10 16 20
CE 30C
CE 40C/50C/61C
