Ø Tube, D A (mm)
Inch mm Imperial Rigid
1/4" 6.35 1.3 0.7
3/8" 9.52 1.6 1.0
1/2" 12.70 1.9 1.3
5/8" 15.88 2.2 1.7
3/4" 19.05 2.5 2.0
Spanar Torque Wrench
Indoor Piping
Flare Nut
Flared Tube
Flare Joint
Pipe Size (mm/in) Torque (Nm)
6.35 (1/4) 18
9.53 (3/8) 42
12.7 (1/2) 55
15.88 (5/8) 65
19.05 (3/4) 78

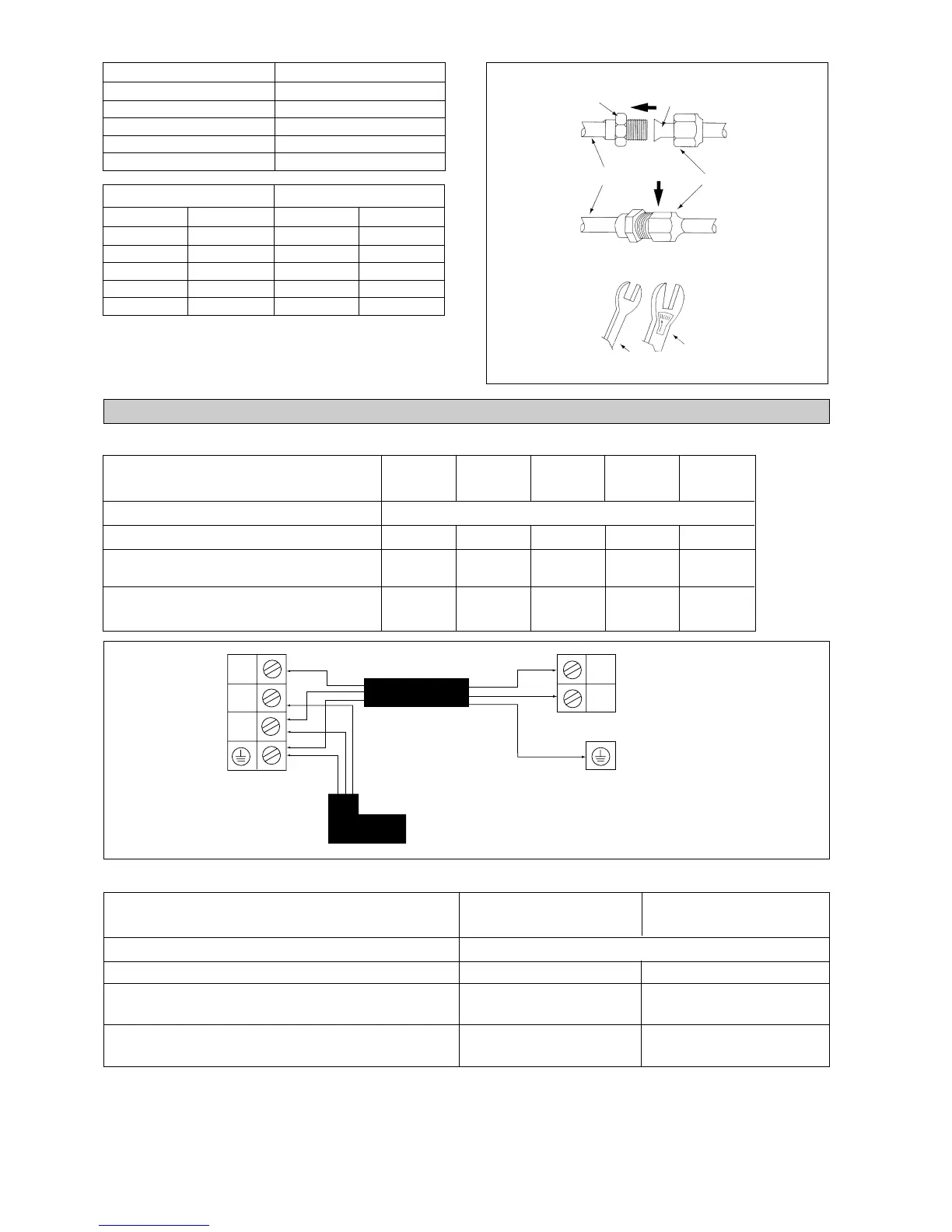

ELECTRICAL WIRING CONNECTION
Electrical Wiring Connection For CE Series 10~25C
Indoor Unit CE 30C CE 35C
Outdoor Unit SL 30C SL 35C
Voltage range (2) 220V – 240V/1Ph/50Hz + ! or 208V - 230V/1Ph/60Hz+!
Recommended fuse (1) A 25 25
Power Supply Cable size mm
2
4.0 4.0
Number of conductors (1) 33
Interconnection Cable size mm
2
4.0 4.0
Number of conductors (1) 44
Electrical Wiring Connection For CE Series 30~35C
The electrical power must be provided with
protection devices (circuit breaker or fuse)
with double pole separation system (phase +
neutral) with minimum contact gap of 3mm.
!
Terminal Strip
Indoor Unit
Interconnection Cable
Terminal Strip
Outdoor Unit
COMP
L
N
COMP
N
Indoor Unit CE 10C CE 15C CE 18C CE 20C CE 25C
Outdoor Unit SL 10B SL 15B SL 18B SL 20B SL 25B
Voltage range (2) 220V – 240V/1Ph/50Hz + ! or 208V - 230V/1Ph/60Hz+!
Recommended fuse (1) A 10 10 16 16 20
Power Supply Cable size mm
2
1.5 1.5 2.5 2.5 2.5
Number of conductors (1) 3333 3
Interconnection Cable size mm
2
1.5 1.5 2.5 2.5 2.5
Number of conductors (1) 3333 3
CE 10~25C
Power Supply
Cable
IMPORTANT: (1) These values are for information only, they should be checked and selected to comply with the local and/
or national codes and regulations. They are also subjected to the type of installation and size of conductors
used.
(2) The appropriate voltage range should be checked with label data on the unit. ETL listed unit is only
applicable to 60Hz power supply only.
