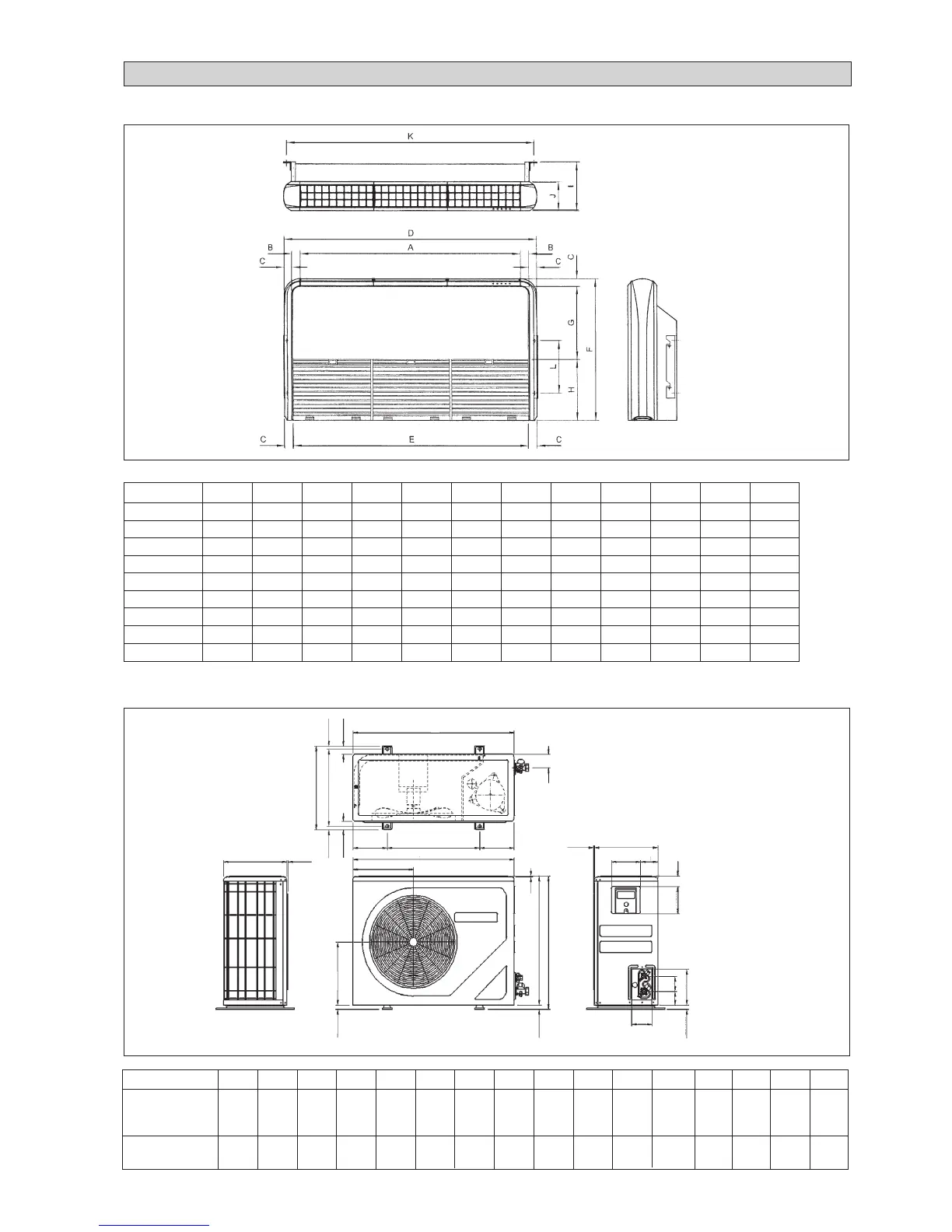

OUTLINE AND DIMENSIONS
Indoor Unit (CE - C Series)
i
All dimensions are in mm
Model A B C D E F G H I J K L
10C 700 40 36 853 780 680 352 292 235 140 830 250
15C 1050 40 36 1203 1130 680 352 292 235 140 1180 250
20C 1050 40 36 1203 1130 680 352 292 235 140 1180 250
25C 1050 40 36 1203 1130 680 352 292 235 140 1180 250
30C 1400 40 36 1553 1480 680 352 292 235 140 1530 250
40C 1750 40 36 1903 1830 680 352 292 235 140 1880 250
50C 1750 40 36 1903 1830 680 352 292 235 140 1880 250
61C 1750 40 36 1903 1830 680 352 292 285 140 1880 250
62C 1750 40 36 1903 1830 680 352 292 285 140 1880 250
Outdoor Unit (SL-B Series)
All dimensions are in mm
Dimension A B C D E F G H J K L M N P Q R
07B / 07BR
10B / 10BR 740 494 270 266 233 474 47 55 65 166 92 348 318 129 482 68,5
15B / 15BR
20B / 20BR
840 646 330 297 309 626 41 85 75 177 106 408 378 124 592 78,5
25B / 25BR
E
15
39
A
M
P
P
840
D
15
39
5
C
20
20
2.5
F
B
C
5
160
H
G
141
K
J
65
L
20
R
Q
N
