19
Application Information M5MSY-2010

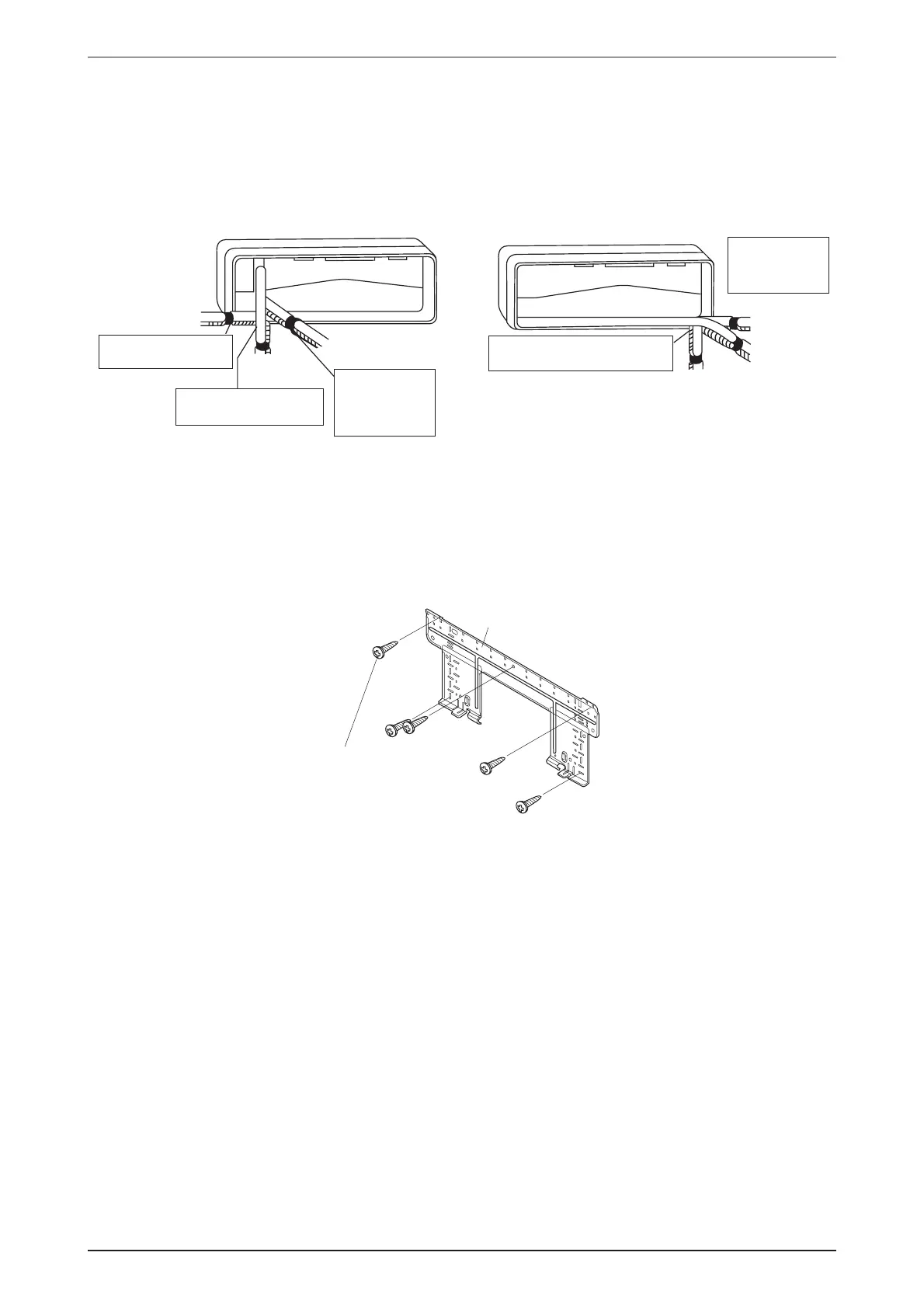

Routing of Piping
The refrigerant piping can be routed to the unit in a number of ways (left or right from the back of the unit),
by using the cut-out holes on the casing of the unit . Bend the pipes carefully to the required position in
order to align it with the holes. For the side and bottom out, hold the bottom of the piping and then position
it to the required direction. The condensation drain hose can be taped to the pipes.
Right-side, right-back or right-bottom piping
Right-back piping
Bind coolant pipe
and drain hose
together with
insulating tape.
Right-bottom
piping
Remove pipe port cover
here for right-bottom piping
Right-side
piping
Remove pipe port cover
here for right-side piping
Remove pipe port cover here for
left-bottom piping
Remove pipe port
cover here for
left-side piping
Left-back
piping
Left-side
piping
Left-bottom piping
Left-side, left-back or left-bottom piping
Mounting Installation Plate
Paste the installation plan provided on the desired location on the wall and marks the holes location
accordingly.
Ensure the wall is strong enough to withstand the weight of the unit. Otherwise, it is necessary to reinforce
the wall with plates, beams or pillars.
Ensure the levelness of the installation plate, and fi x with 5 suitable screws.
Mounting plate
Mounting plate
fixing screw
•
•
•
•
