McQuay MAC 100 C Installation And Maintenance

A
ir intake
A
ir Dischar
g
e

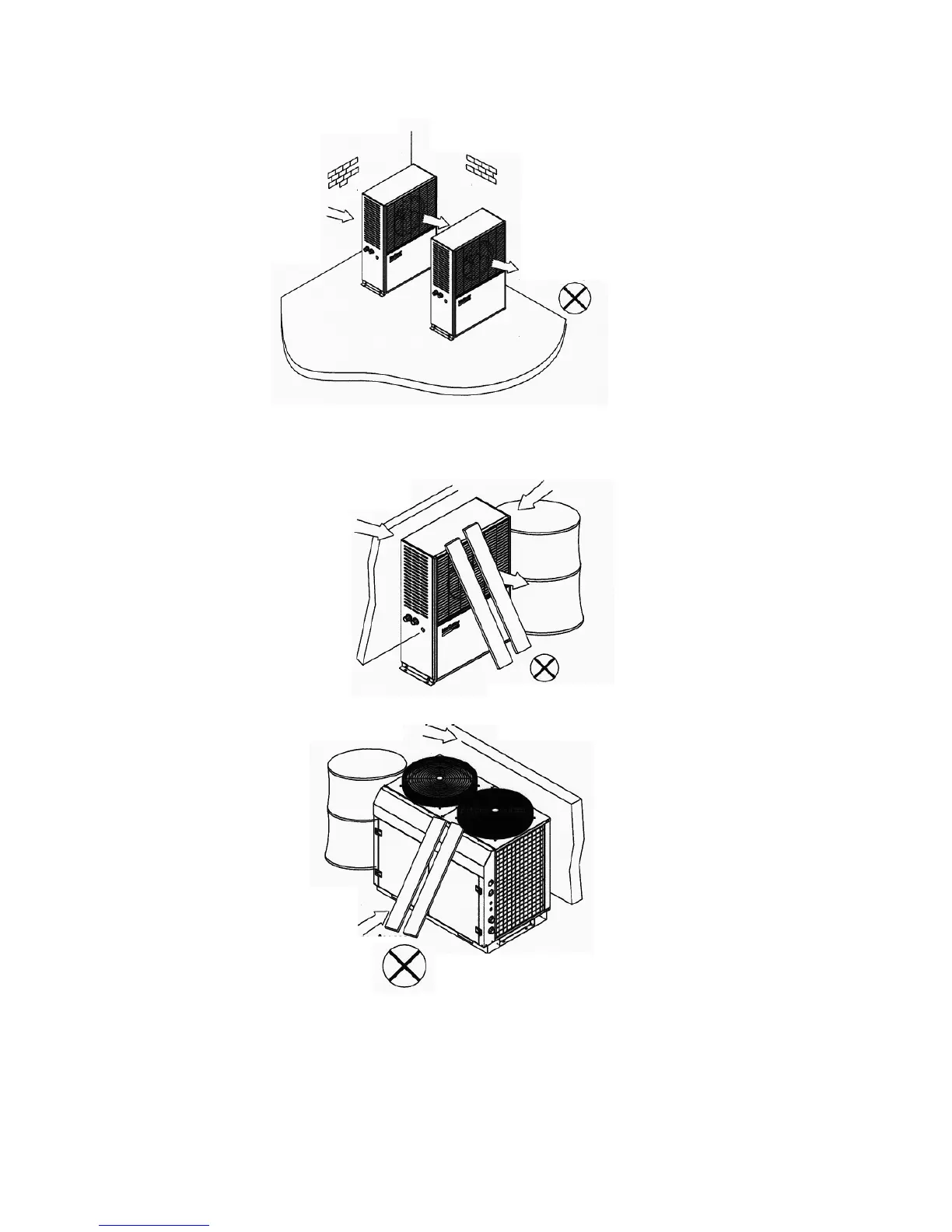

c) Ensure that there is no obstruction to air flow into or out of the unit. Remove obstacles which blocking
intake or discharge air if exist.
Obstacles Blocking Air intake
Obstacles Blocking Air intake
Obstacles Blockin
g
Air intake
Obstacles Blocking Servicing Access
d) For MAC080C(R) to MAC150C(R), if good ventilation cannot be guaranteed when unit being installed
indoors, it is advisable to induce discharge air from air outlet to outdoors
by installing duct which is as
short as possible.
Page 35
