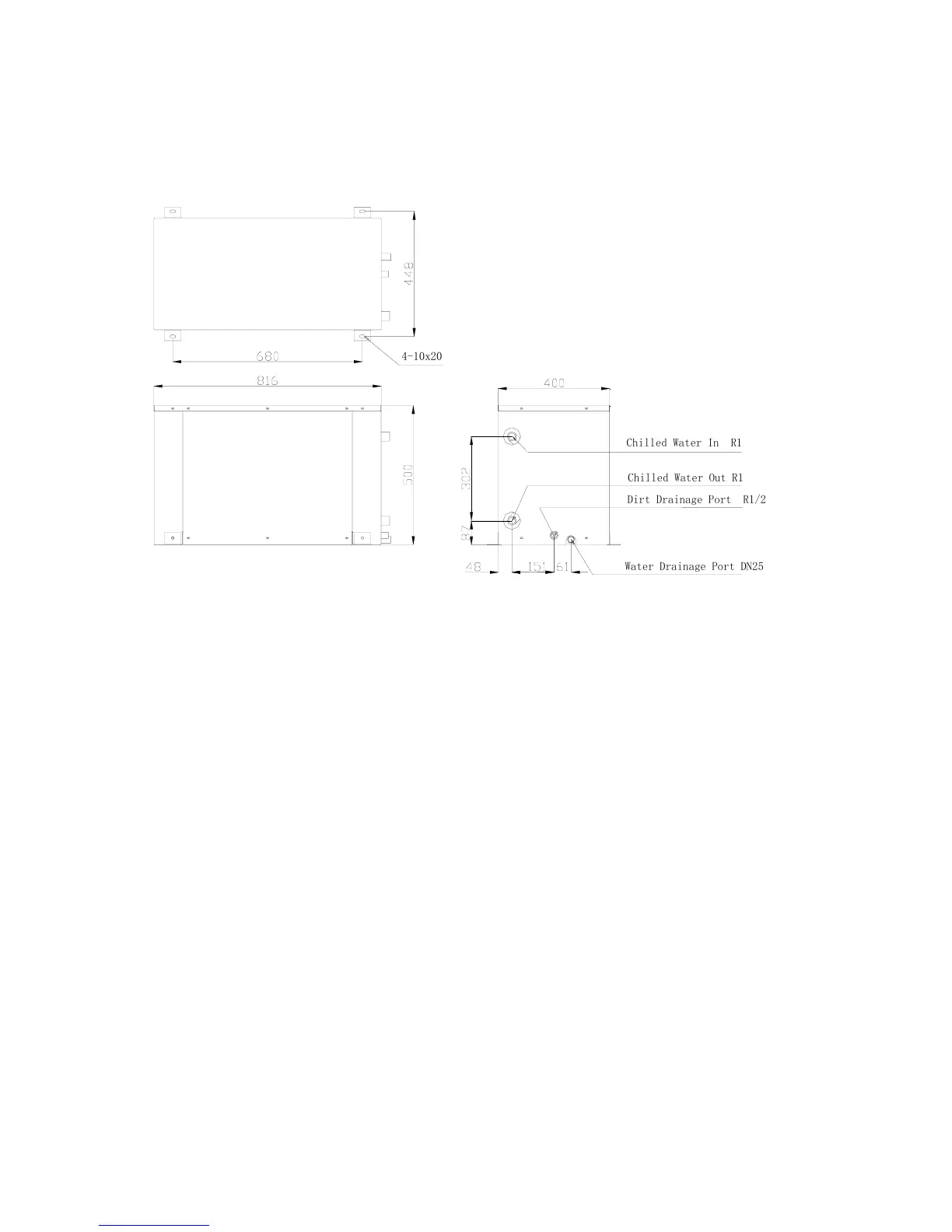

Accessory Hydraulic Kit
For MAC080C(R) to MAC150C(R), accessory hydraulic kit consists of 40L capacity stainless steel water
storage tank, safety valve, dirt drainage valve, and auto air vent valve etc. For MAC030C(R) to
MAC070C(R), with 8L volume water expansion chamber additionally.
W a t e r D r a i n a g e P o r t D N 2 5
C h i l l e d W a t e r O u t R 1
C h i l l e d W a t e r I n R 1
D i r t D r a i n a g e P o r t R 1 / 2
4 - 1 0 x 2 0
