McQuay MCK 020A User Manual

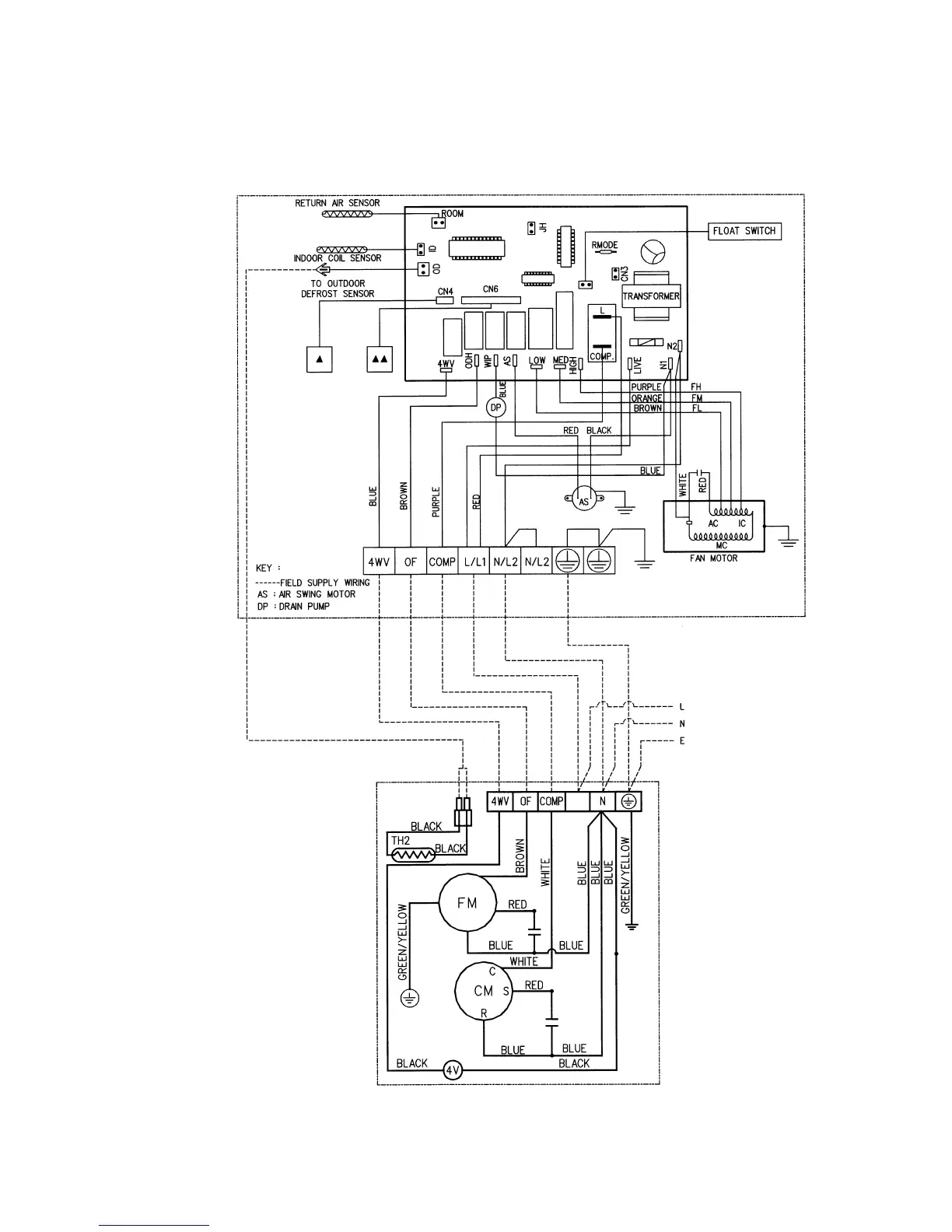

Indoor Unit (Heat Pump)
Model : MCK020/ 025AR
Outdoor Unit
Model : MLC / M4LC020/ 025BR
KEY:
FM – FAN MOTOR
CM – COMPRESSOR MOTOR
4V - 4 WAY VALVE
TH2 – OUTDOOR THERMISTOR
- - - - - - FIELD SUPPLY WIRING
▲ CN4 IS CONNECTED TO WIRED HANDSET
▲▲ CN6 IS CONNECTED TO SENSOR &
INDICATOR LIGHT OF WIRELESS HANSET
REMARK – EITHER CN4 OR CN6 CAN BE
CONNECTED AT ANY ONE TIME
49
