McQuay MCK 020A

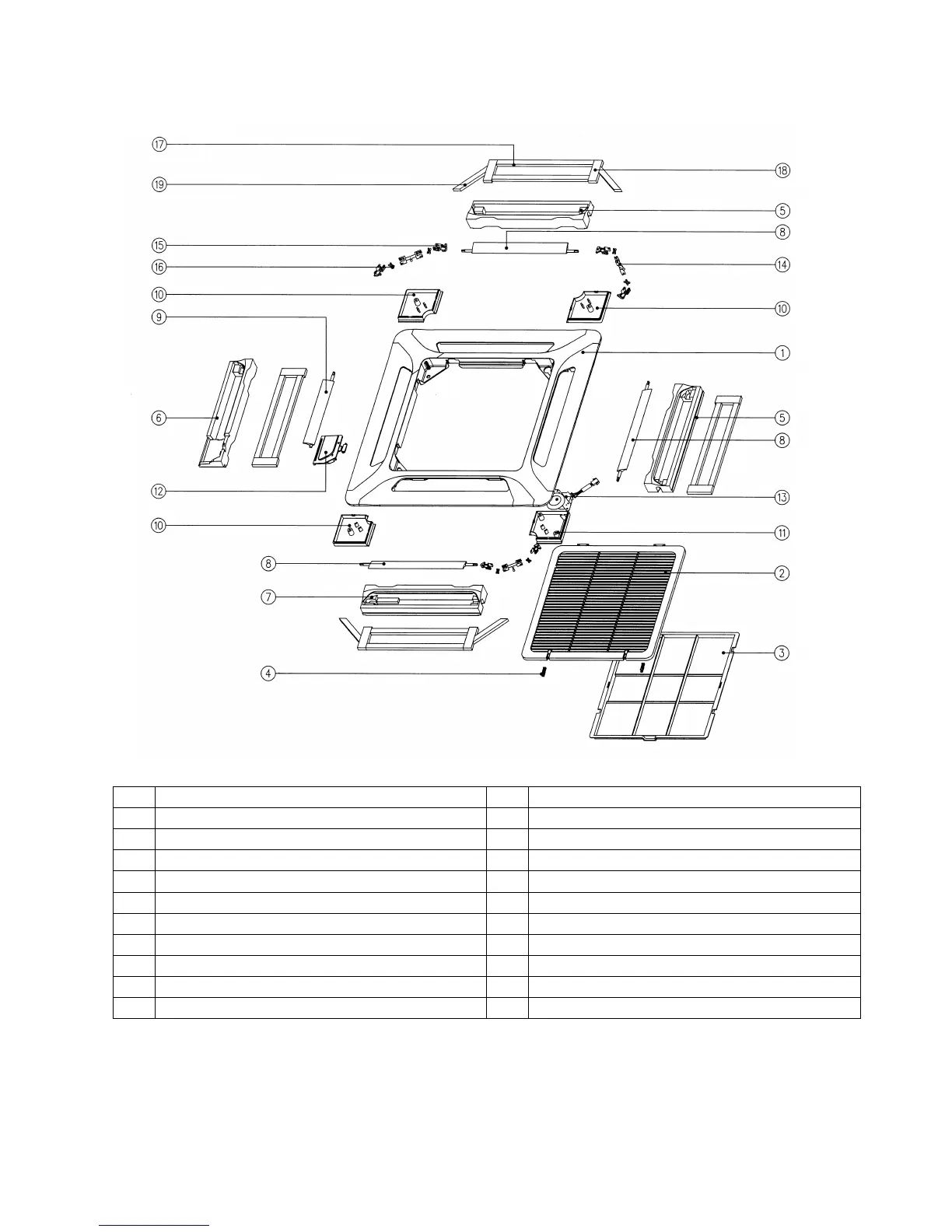

Panel : MCK010/ 015/ 020C/CR
NO. PART DESCRIPTION NO. PART DESCRIPTION
1 FRAME 11 LINKAGE
,
COVER MOTOR
2 INTAKE GRILLE 12 ASSY
,
BRACKET RECEIVER
(
LED/SLM
)
3 FILTER 13 AIR SWING MOTOR ASSY
4 GRILLE LOCK 14 CRANK CONNECTOR
5 DISCHARGE
,
FOAM 15 LOUVER HOLDER
6 DISCHARGE
,
FOAM LED 16 CRANK CROSS
7 DISCHARGE
,
FOAM SHORT 17 INSULATION LONG
8 LOUVER 18 INSULATION SHORT
9 LED LOUVER 19 INSULATION CORNER
10 LINKAGE
,
COVER
