107

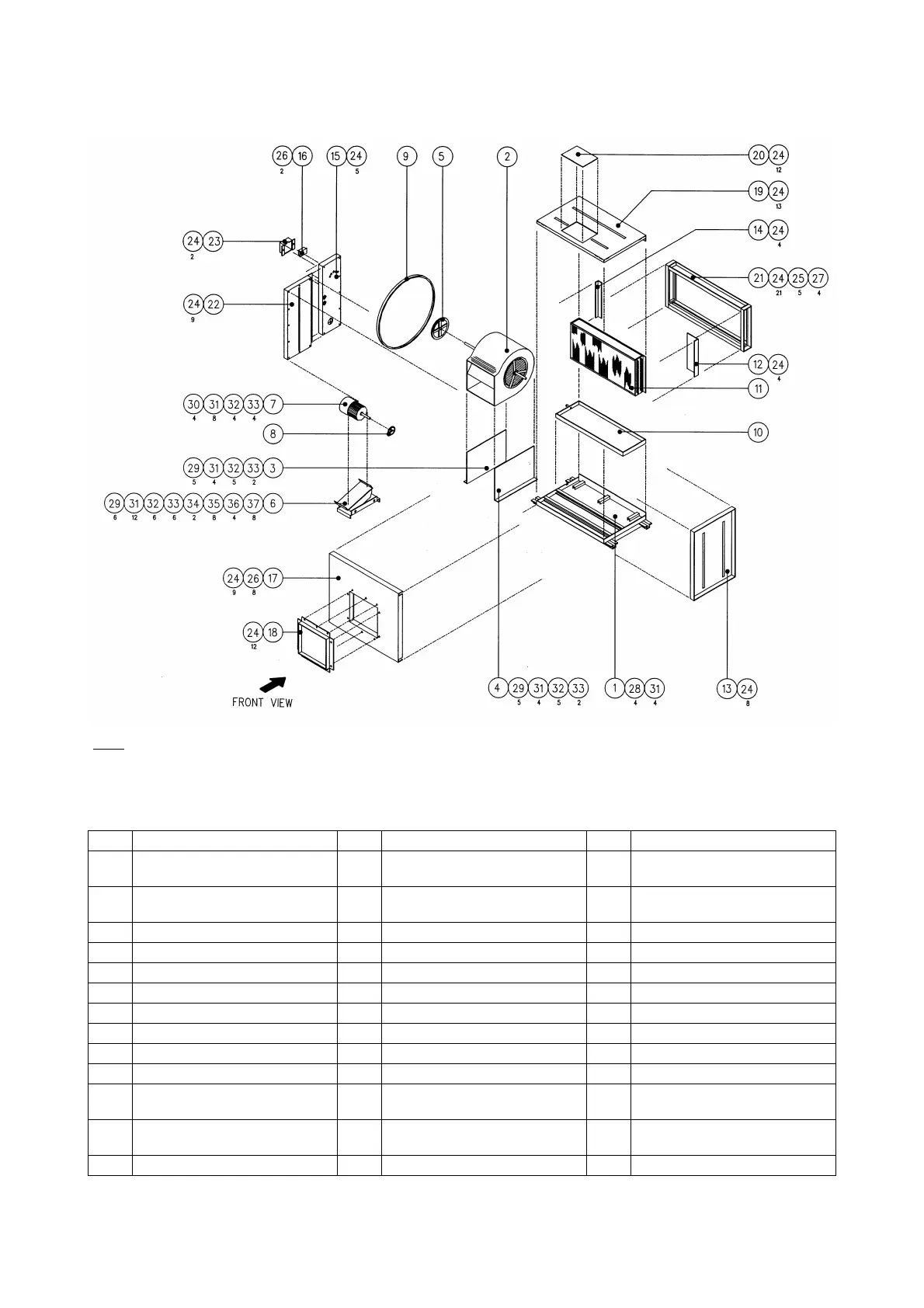

MODEL : MDB125B
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 14
ASSY., COIL SIDE COVER
LEFT
27 SCREW, TRUSS HEAD PHILIP
2 ASSY., BLOWER HOUSING 15
ASSY., SIDE PANEL SMALL
LEFT
28 SCREW, WOOD
3 SUPPORT, BLOWER LEFT 16 ASSY., TERMINAL BLOCK 29 BOLT, HEXAGON
4 SUPPORT, BLOWER RIGHT 17 ASSY., FRONT PANEL 30 BOLT, HEXAGON
5 PULLEY, BLOWER 18 ASSY., BLOWER FLANGE 31 WASHER, PLAIN
6 ASSY., MOTOR BRACKET 19 ASSY., TOP PANEL 32 WASHER, SPRING
7 MOTOR 20 BLOWER, COVER 33 NUT, HEXAGON
8 PULLEY, MOTOR 21 ASSY., FILTER SECTION 34 BOLT, ADJUSTING
9 V-BELT 22 ASSY., SIDE PANEL BIG LEFT 35 WASHER, PLAIN
10 ASSY., DRAIN PAN 23 COVER, TERMINAL 36 WASHER, SPRING
11 ASSY., COIL 24
SCREW, S.T. TRUSS HEAD
PHILIP
37 NUT, HEXAGON
12
ASSY., COIL SIDE COVER
RIGHT
25
SCREW, SELF TAPPING PAN
HEAD
13 ASSY., SIDE PANEL RIGHT 26 SCREW, TRUSS HEAD PHILIP
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) WITH ALCO THERMOSTATIC EXPANSION VALVE
4) FOR 400V/3PH/50Hz
5) FOR LOCAL AND EXPORT SPEC.
6) FOR HORIZONTAL AIR DISCHARGE
