McQuay MDB100B User Manual

108

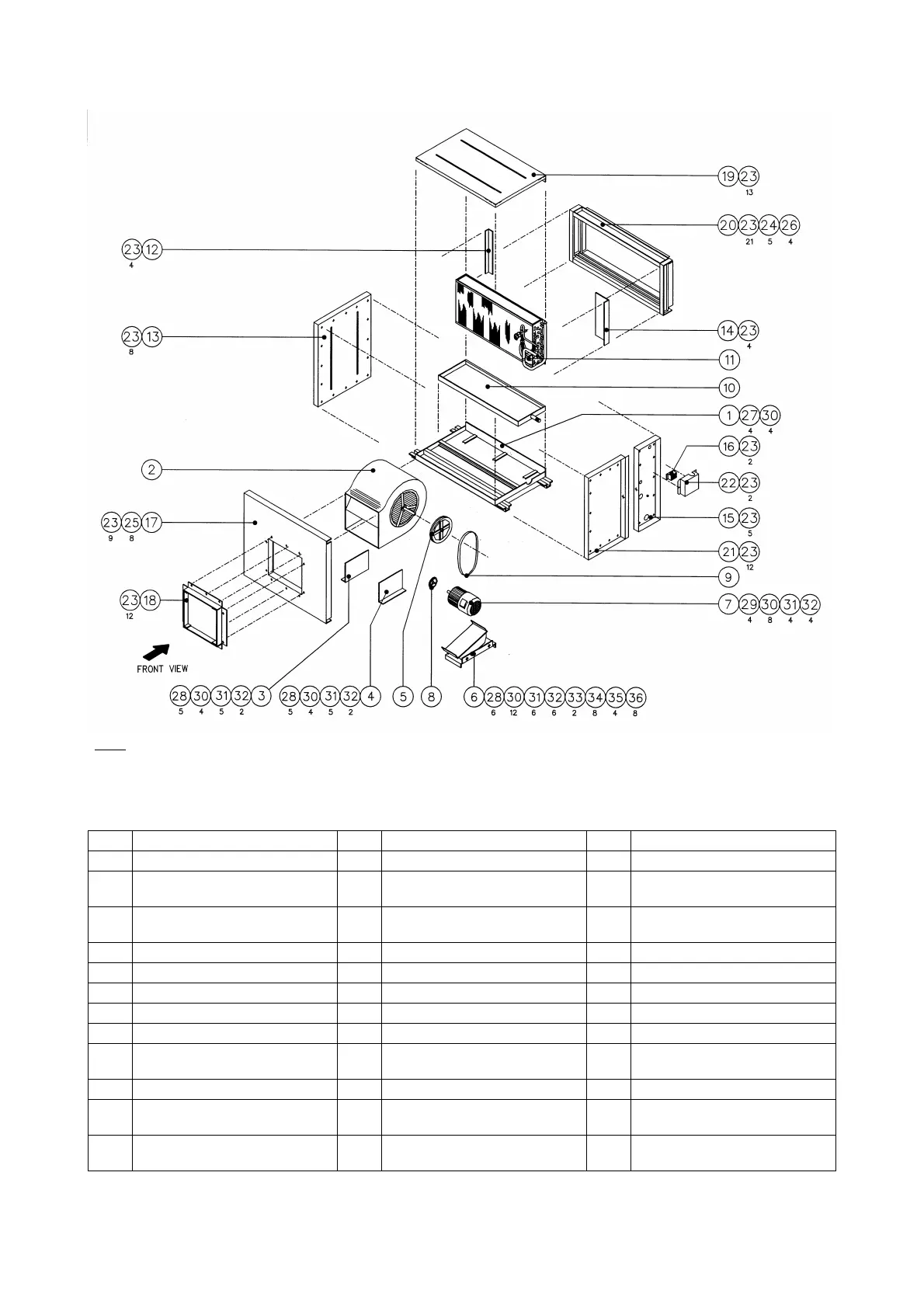

MODEL : MDB125C
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 13 ASSY., SIDE PANEL LEFT 25 SCREW, TRUSS HEAD PHILIP
2 ASSY., BLOWER HOUSING 14
ASSY., COIL SIDE COVER
RIGHT
26 SCREW, TRUSS HEAD PHILIP
3 SUPPORT, BLOWER LEFT 15
ASSY., SIDE PANEL SMALL
RIGHT
27 SCREW, WOOD
4 SUPPORT, BLOWER RIGHT 16 ASSY., TERMINAL BLOCK 28 BOLT, HEXAGON
5 PULLEY, BLOWER 17 ASSY., FRONT PANEL 29 BOLT, HEXAGON
6 ASSY., MOTOR BRACKET 18 ASSY., BLOWER FLANGE 30 WASHER, PLAIN
7 MOTOR 19 ASSY., TOP PANEL 31 WASHER, SPRING
8 PULLEY, MOTOR 20 ASSY., FILTER SECTION 32 NUT, HEXAGON
9 V-BELT 21
ASSY., SIDE PANEL BIG
RIGHT
33 BOLT, HEXAGON
10 ASSY., DRAIN PAN 22 COVER, TERMINAL 34 WASHER, PLAIN
11 ASSY., COIL 23
SCREW, S.T. TRUSS HEAD
PHILIP
35 WASHER, SPRING
12
ASSY., COIL SIDE COVER
LEFT
24
SCREW, SELF TAPPING PAN
HEAD
36 NUT, HEXAGON
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) WITH DANFOSS THERMOSTATIC EXPANSION VALVE
4) FOR 400V/3PH/50Hz
5) FOR LOCAL AND EXPORT SPEC.
6) FOR HORIZONTAL AIR DISCHARGE ONLY
