McQuay MDS030A Design & Installation Guide

-102-
Design & installation Guide For McQuay MDS Multi System

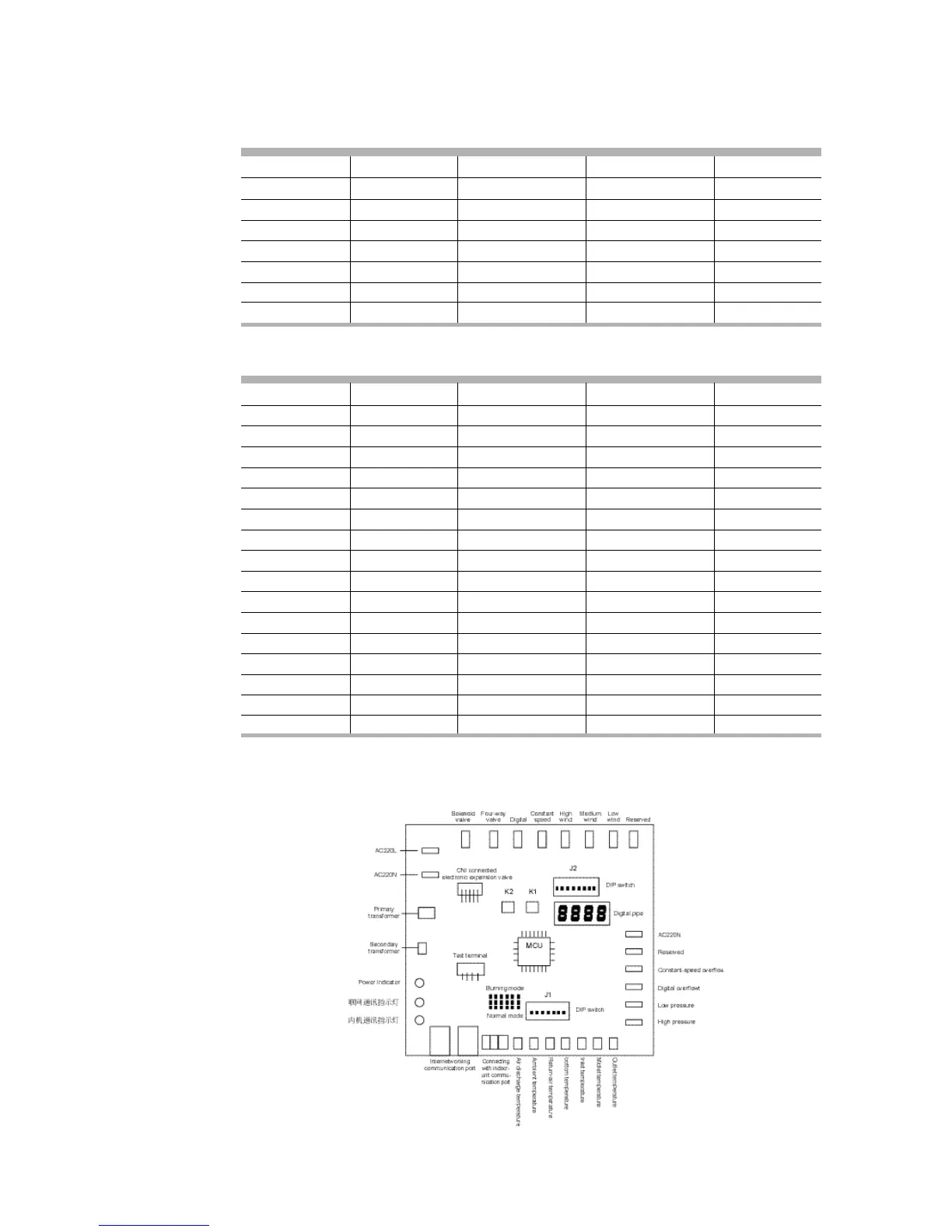

5.1.2 MDS-A series outdoor units
Model 1 setting（SW3.5 —— SW3.8）
Power SW3.1 SW3.2 SW3.3 SW3.4
0.8HP 0 0 0 0
1.0HP 0 0 0 1
1.5HP 0 0 1 0
1.8HP 0 0 1 1
2.0HP 0 1 0 0
2.5HP 0 1 0 1
3.0HP 0 1 1 0
4.0HP 0 1 1 1
5.0HP 1 0 0 0
6.0HP 1 0 0 1
7.0HP 1 0 1 0
8.0HP 1 0 1 1
9.0HP 1 1 0 0
10.0HP 1 1 0 1
11.0HP 1 1 1 0
12.0HP 1 1 1 1
Power setting（SW3.1 —— SW3.4）
Model 2 SW3.5 SW3.6 SW3.7 SW3.8
MCC 0 0 0 0
MCK 0 0 0 1
MCM 0 0 1 0
MWM 0 0 1 1
MDB 0 1 0 0
MDBX 0 1 0 1
Reserve
