Design & installation Guide For McQuay MDS Multi System
4.2 Outdoor unit installation
When the condensing temperature is increasing, the cooling capacity will decrease. In order
to get the maximum capacity, we should take the follows into account.
■ Make sure that the outlet air can not be introduced to the inlet air side directly, and there
should be enough space for the maintenance.
■ There should be no obstacle on both the air inlet and air outlet of unit;
■ The unit location must has good ventilation.
■ The base must be strong enough to support the weight of unit and the running vibration;
■ Avoid to install the unit in the environment of machine oil, saline gas and sulphide gas.
4.2.1 Lifting to mount the outdoor unit

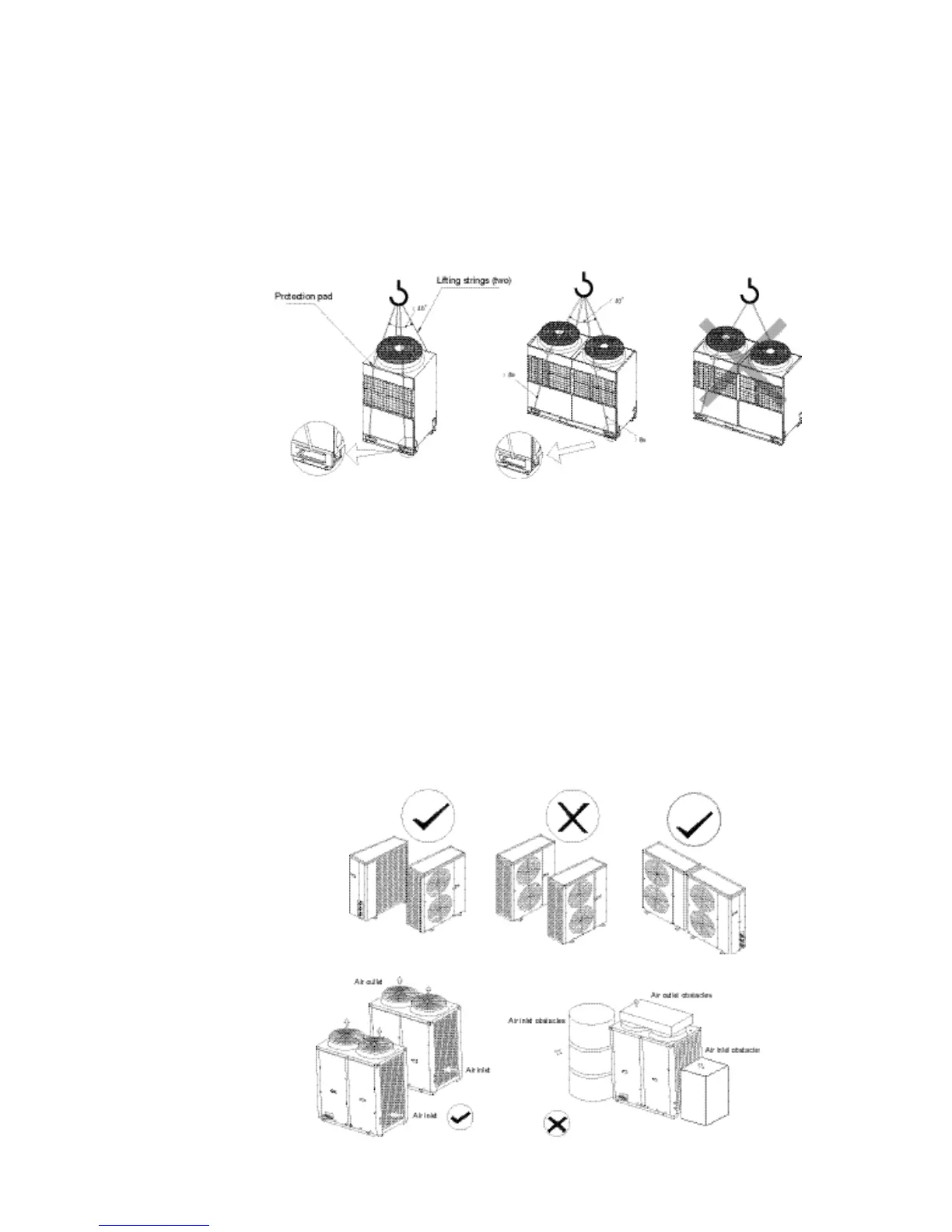

Please lift to mount the unit as shown below. When moving the outdoor unit, you should support it
on four points, instead of 3 support points. If only 3 support points, the unit may be unstable, and even
fall off.
Notes:
Make sure to move the outdoor unit carefully. If there is package belt with the product, this belt can not
be used to lift or move the product. As the belt is easy snapped and bring unexpected matters or
danger. Don’t touch the cooling fin of the heat exchanger with your hand, or your hand may be injured.
Treat the plastic package bag properly, and please prevent children from playing with it.
