McQuay MDS030A Design & Installation Guide

-34-
Design & installation Guide For McQuay MDS Multi System

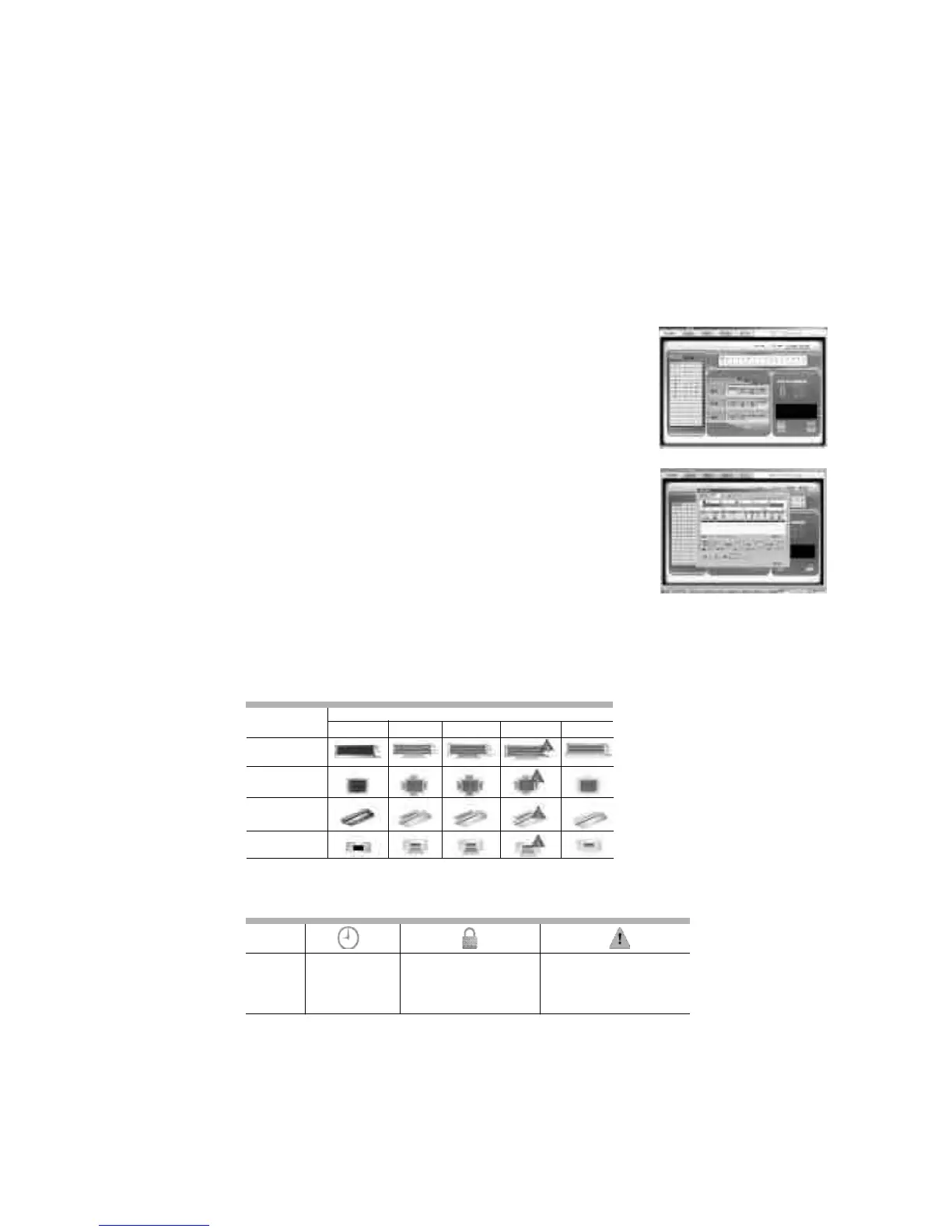

2.4 Software Management System
2.4.1 Real-time monitor software
■ System monitor software: The real time monitor software of MDS unit can perform such
functions as indoor monitor, system monitor and service monitor, for the purpose of making
the user or service test personnel see the detailed parameters and know the operation of
the unit.
Main control function:
2.4.1 Real-time monitor software
Indoor monitor
■ Set indoor mode/wind speed/auxiliary setting/temperat ure
and ON/OFF (they can be set in many units or the units in
groups at the same time).
■ Both indoor and outdoor units can be set in different groups
by self-defining. (The default group is set according to
outdoor unit)
■ Alarm display and alarm information query (you can choose
outdoor unit No. or indoor unit No. to query the corresponding
malfunction.)
■ Set timer mode and indoor unit timer mode. (The timer mode
can be set without limit and can be stored.)
■ System monitor
Display the model and status of all indoor units in the system (such as alarm and timer)
Indoor icon instruction
Small icon
Introduction
Introduction of the units
Indoor
Icon
unit model
Stop: Cooling Heating Dehumidity Air vent
MCC
MCK
MCM
MDB
The timer function
has been started.
The line controller has
been locked, we can not
use it to control the in-
door units at this time.
There is malfunction in this
indoor unit, double-click the
icon to know the details.
