McQuay MDS030A Design & Installation Guide

-33-
Design & installation Guide For McQuay MDS Multi System

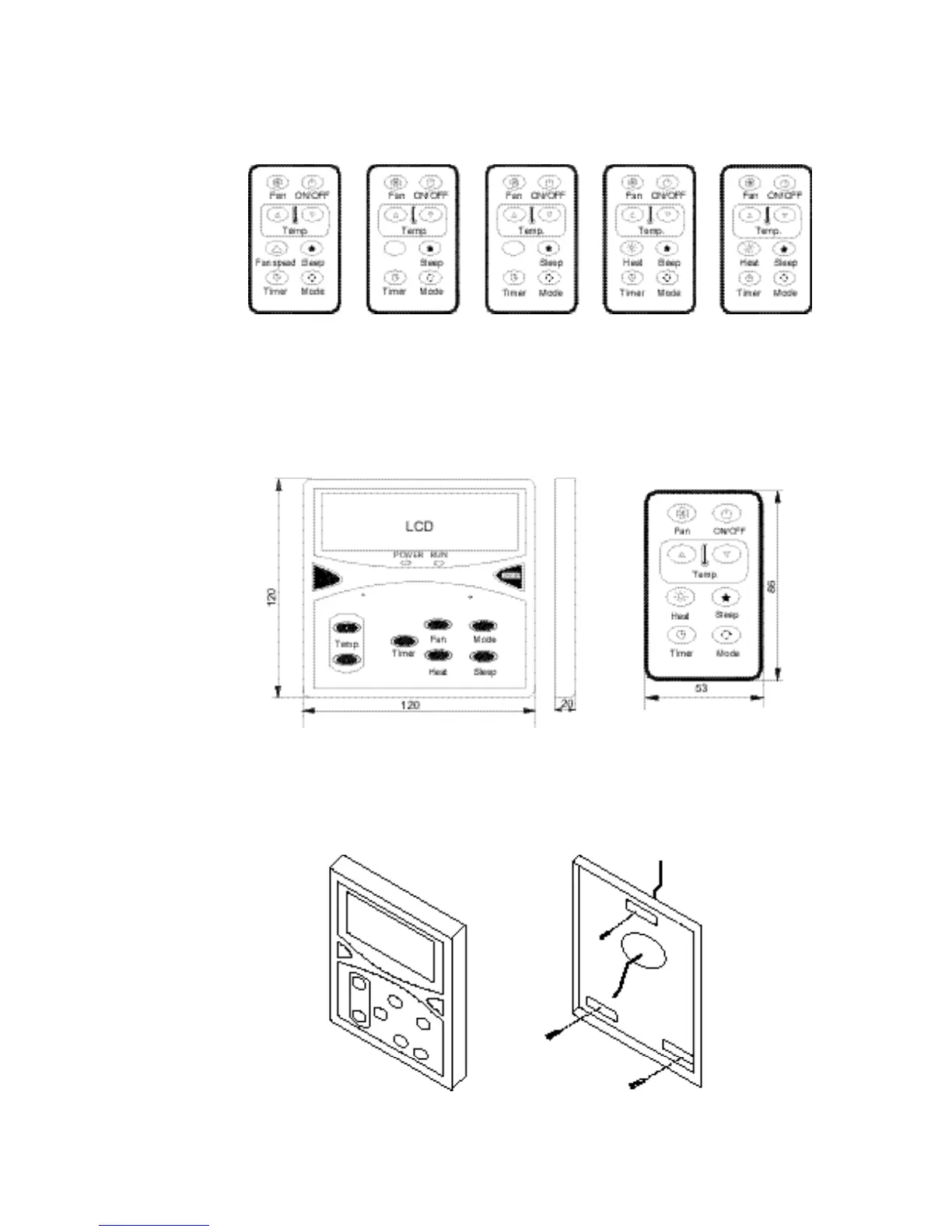

2.3.3 Wire control panel
2.3.4 Outline dimension
2.3.5 Installation type
■ concealed installation
Unit：mm
For three speed
unit with auxiliary
heater
For single speed
unit with auxiliary
heater
For three-speed unit
with wind wing
For the cooling and
heat pump unit with
three-speed
For the cooling and
heat pump unit with
single-speed
