-80-
Design & installation Guide For McQuay MDS Multi System

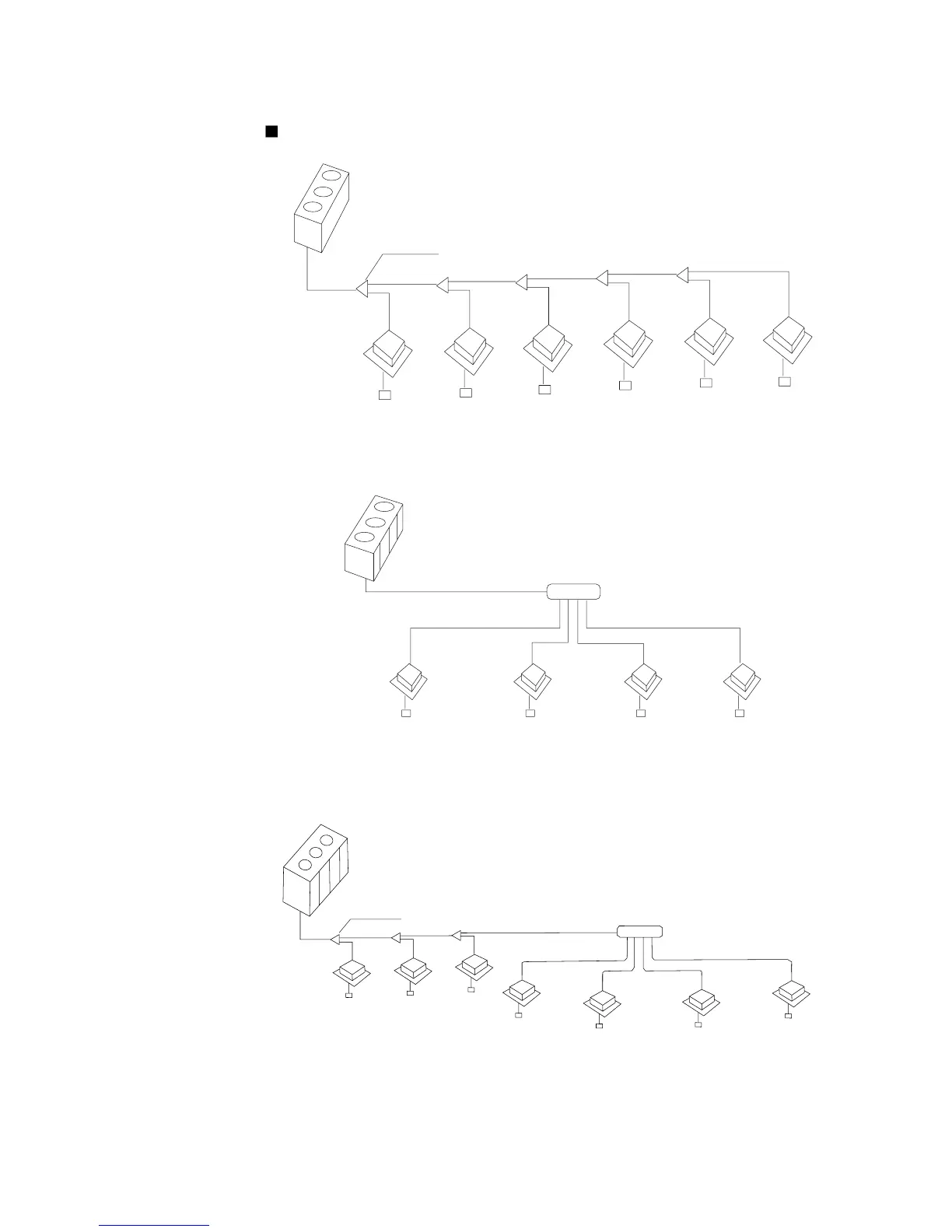

Only connected by the refnet joint
Outdoor unit
Distributor kit
Indoor unit
controller
Connection of refnet joint and distributor kit
Refnet joint
Outdoor unit
Indoor unit
controller
Only connected by the distributor kit
controller
Refnet joint
Outdoor unit
Distributor kit
Connected by the refnet joint and the distributor kit
