-81-
Design & installation Guide For McQuay MDS Multi System

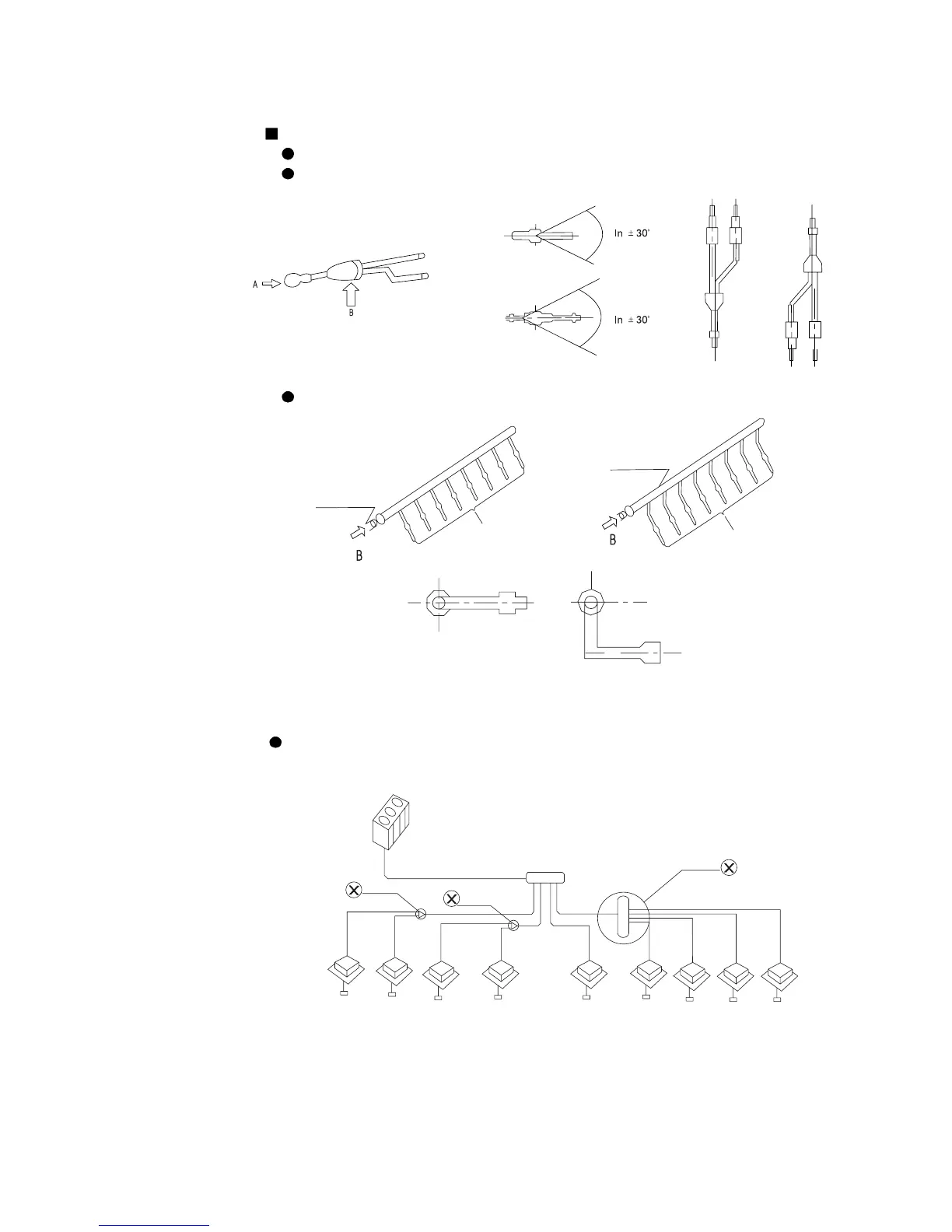

Refrigerant Piping Installation:
Refrigerant piping should use the appointed diameter pipe;
Refnet joint must be installed horizontally or vertically.
(Horizontal line)
(Horizontal line)
B viewer
A viewer
OR
Distributor kit must be installed horizontally.
To the indoor unit
Liquid distributor kit
To the indoor unit
Gas distributor kit
Horizontal line
B viewer
B viewer
(gas side)
(liquid side)
Distributor kit should be connected to indoor unit directly, it is not allowed to connected to the
distributor kit or refnet joint.
Controller
Indoor unit
Indoor unit
Distributor kit
To Next Page
