CC40CR/50CR/60CR
The electrical power must be
provided with protection devices
(circuit breaker or fuse) with double
pole separation system (phase +
neutral) with minimum contact gap
of 3mm.
!
Indoor unit CC 40CR CC 50CR CC 60CR
Outdoor unit SL 40CR SL 50CR SL 60CR
Voltage range 380V– 415V/ 3Ph/ 50Hz +N + !
Recommended fuse A 15 20 20
Power Supply Cable size mm
2
44 4
Number of conductors 44 4
Interconnection Cable size mm
2
1.5 1.5 1.5
Number of conductors 77 7
IMPORTANT: These values are for information only, they should be checked and selected to comply with the local and/or
national codes and regulations. They are also subjected to the type of installation and size of
conductors used.
(Heat pump units for Heat pump series 40CR with wire remote control & PCB)
! Caution
Ensure that the colors of wires on the outdoor unit and the terminal markings are the same as the indoor unit
respectively.

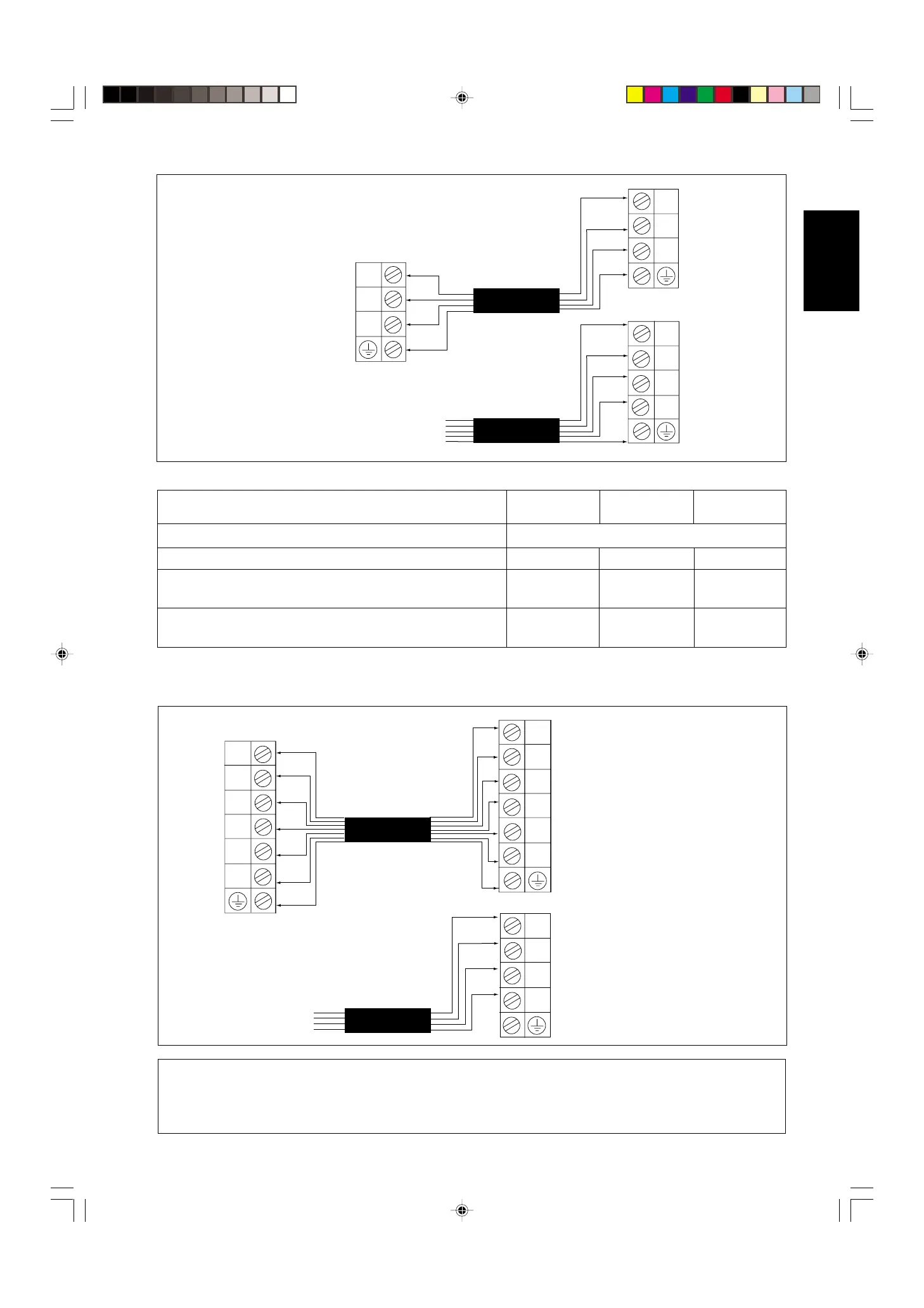

CC40C/50C/60C
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.
!
L
N
COMP
L
N
N
COMP
S
T
R
TERMINAL
STRIP
INDOOR
UNIT
INTERCONNECTION
CABLE
TERMINAL
STRIP
OUTDOOR
UNIT
N
L
COMP
4WV
OF
A
N
N
L
COMP
4WV
OF
A
S
T
R
TERMINAL
STRIP
INDOOR
UNIT
INTERCONNECTION
CABLE
TERMINAL
STRIP
OUTDOOR
UNIT
POWER SUPPLY
CABLE
POWER SUPPLY
CABLE
