1-5
English

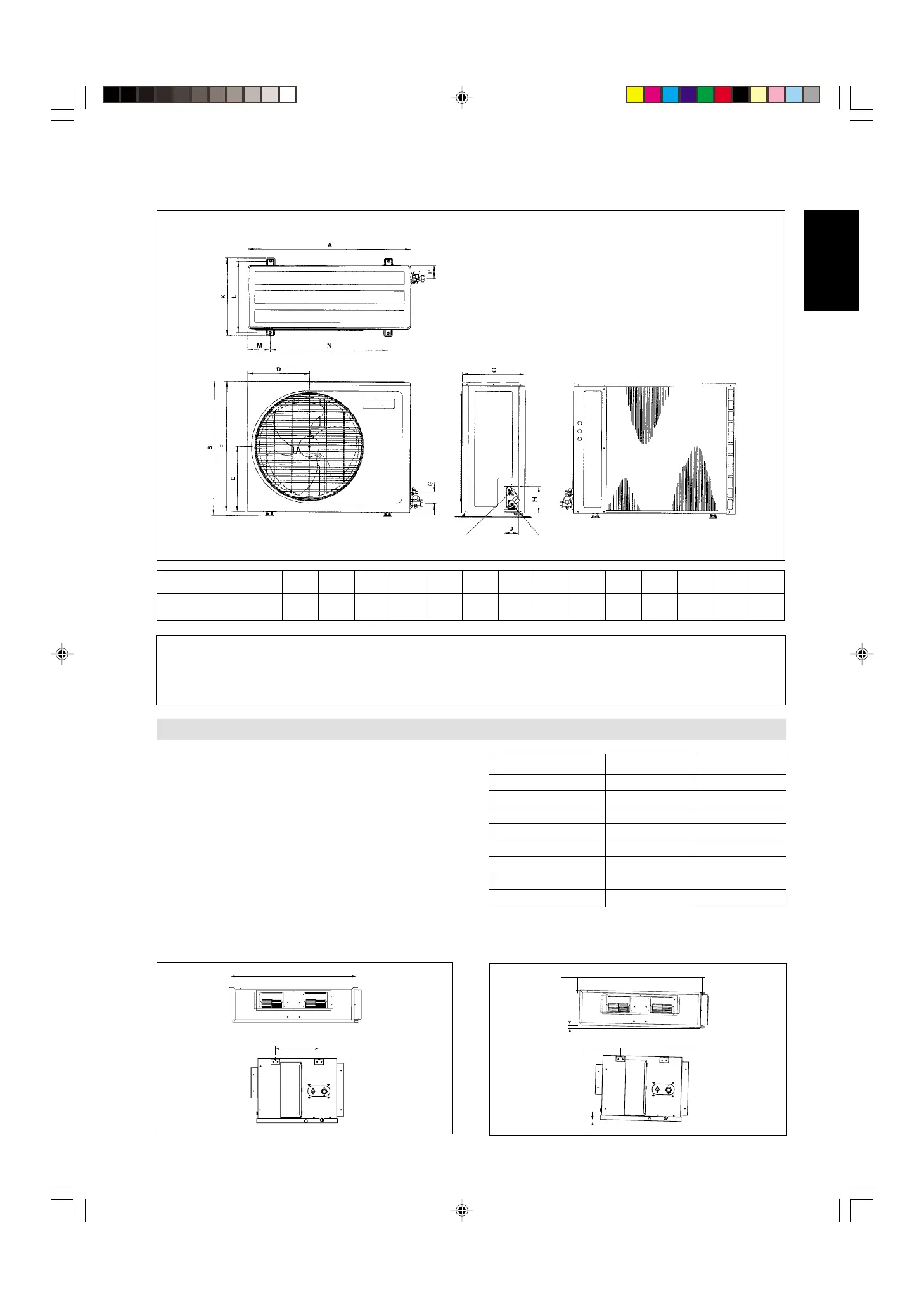

Outdoor Unit (SLC series)
SL A B C D E F G H J K L M N P
30C/40C/50C/60C 1030 850 400 390 414 827 72 196 91 488 448 141.5 746.5 82
SUCTION
LIQUID
Sharp edges and coil surfaces are potential locations which may cause injury
hazards. Avoid from being in contact with these places.
! Caution
INSTALLATION OF THE INDOOR UNIT
The indoor unit must be installed such that there is no short
circuit of the cool discharge. Respect the installation clear-
ance (see drawing C). Do not put the indoor unit where there
is direct sunlight on unit. The location is suitable for piping
and drainage and it must be have a large distance between a
door and unit.
CEILING CONCEALED MOUNTING
– Use the hanger supplied with the unit.
– Make sure that the wall is sufficiently strong to withstand
the weight.
Center distance of axle (see drawing below)
A
L
Provide clearance for servicing ease and optimal air flow as
shown in the diagram.
CC A L
10 C/CR 741 225
15 C/CR 881 225
20 C/CR 1041 225
25 C/CR 1176 225
30 C/CR 956 266
40 C/CR 1076 266
50 C/CR 1326 266
60 C/CR 1526 266
CCC-0700 (01~16) ENG* 2/1/01, 10:42 AM5
