The location must be well-ventilated, so that the unit can
draw in and distribute plenty of air thus lowering the
temperature.
A place capable of bearing the weight of the outdoor unit as
well as isolating noise and vibration.
A place protected from the direct sunlight. Use an
awning for protection if necessary.
Note:- If the obstacle is higher than 2m or if there is any
obstruction at the upper part of the unit allow more
space than indicated in the table above.
The installation location must not be susceptible to highly
concentrated dust, oil, salt or sulfide gas.
Outdoor unit SL series Clearance
RETURN AIR
OBSTACLE
OBSTACLE
OBSTACLE
OBSTACLE
SERVICE
ACCESS
DISCHARGE
AIR

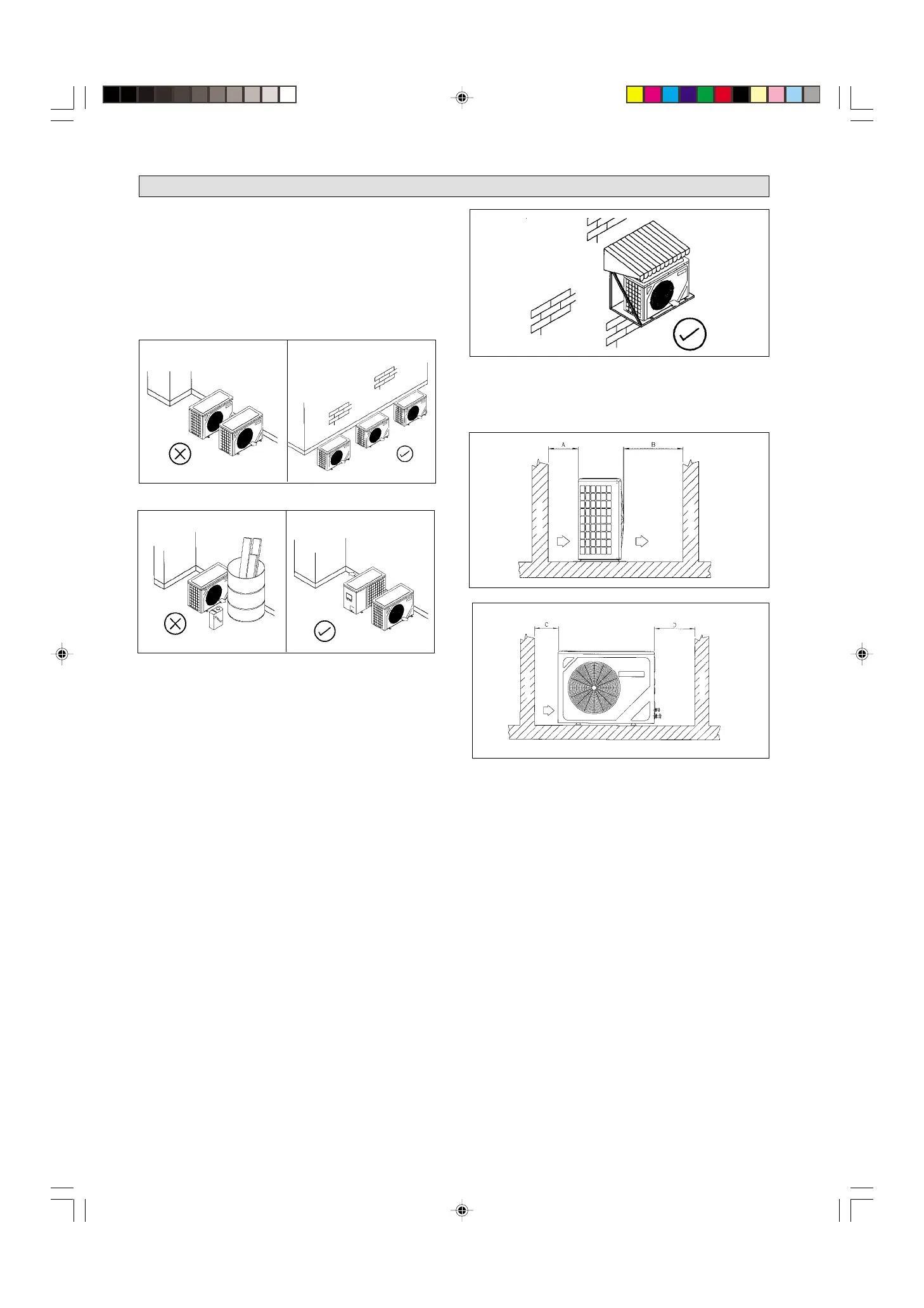

INSTALLATION OF THE OUTDOOR UNIT
The outdoor unit must be installed such that there is no short
circuit of the air discharge air or obstruction to smooth air
flow. Respect the installation clearance show on the table.
Select the coolest possible place where intake air should
not be higher than the outside temperature (maximum 45°C).
Ensure that there are no obstruction of air flow into or out
of the unit. Remove obstacles which block air intake or
discharge.
RETURN AIR
CCC-0700 (01~16) ENG* 2/1/01, 10:42 AM6
