McQuay MQC164060CFC216B

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
45

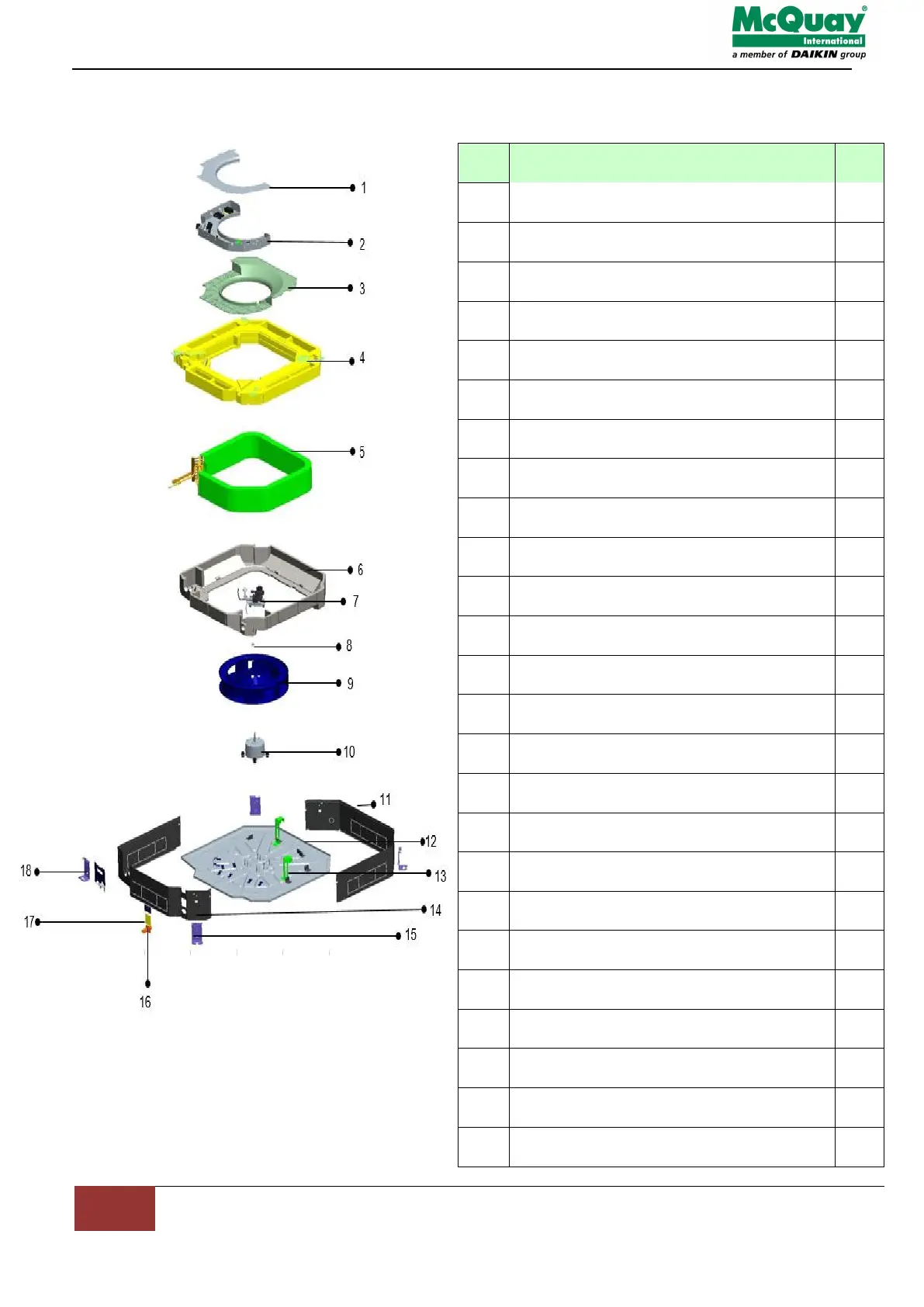

1.7. Exploded View
No.
Part Name
QTY
1
E-parts box cover
1
2
Eletric control components for indoor unit
1
2.1
1
2.2
Fan motor capacitor
1
2.3
Terminal
1
2.4
E-parts board for indoor unit
1
2.5
Temperature sensor
1
2.6
Temperature sensor
1
2.7
Welded chasis for E-parts box
1
2.8
Wires outlet board
1
3
Wind inlet guide assy
1
3.1
Wind inlet guide
1
4
Water pan
1
5
Evaporator components
1
5.1
Insulating pipe
1
5.2
Insulating pipe
1
5.3
Insulating pipe
1
5.4
Evaporator welding assy
1
5.4.1
Instalation tube for probe
2
5.4.2
Evaporator
1
5.4.3
Collecting capillary assy for evaporator
1
5.4.4
Splitter capillary assembly
1
6
Upper foam components
1
7
Water pump components
1
7.1
Water pump bracket
1
