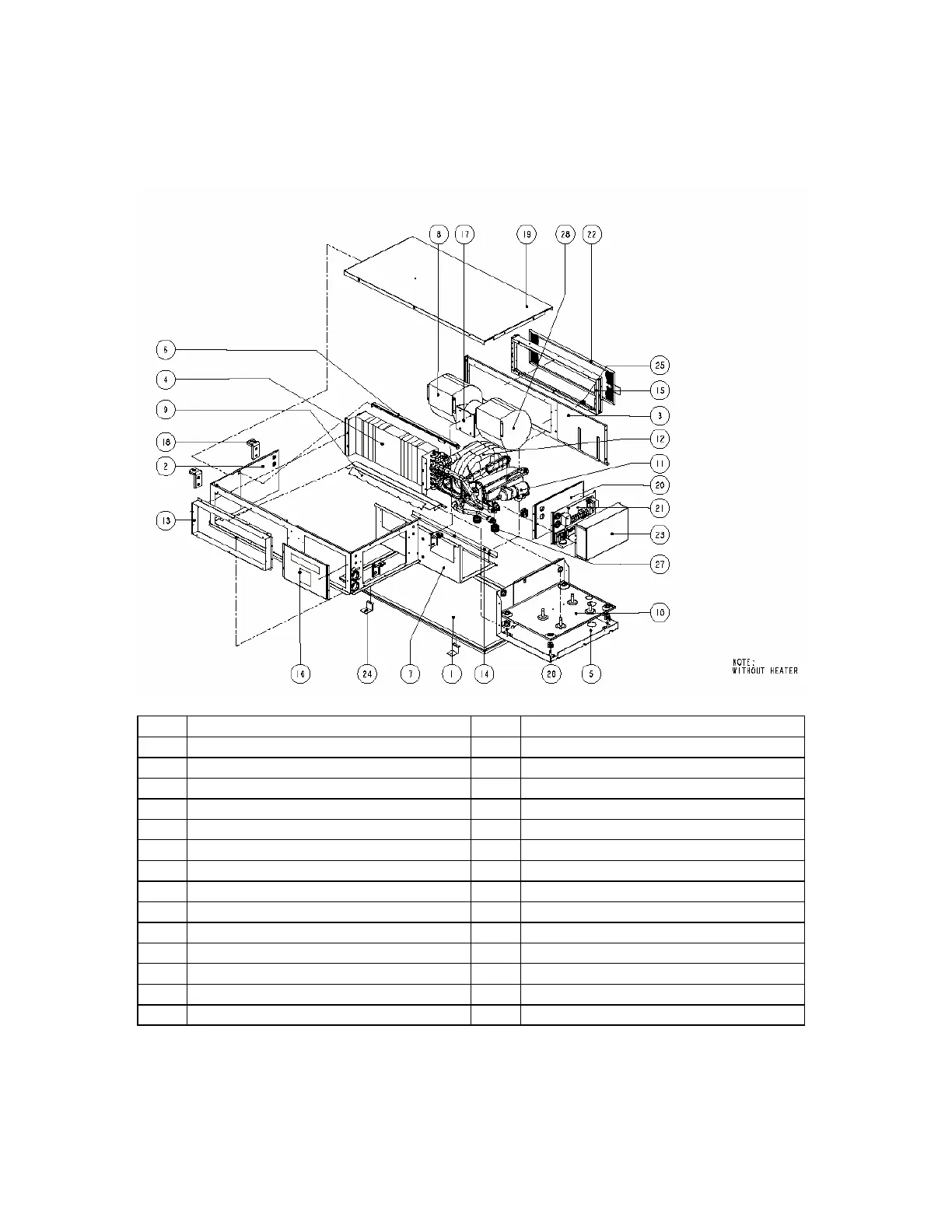

Part List

Model : MWH011B

No. Description No. Description

1 Assy., Ins. Drain Pan 15 Assy., Filter Flange

2 Assy., Ins. Front Panel 16 Assy., Ins. Service Panel

3 Assy., Ins. Back Panel 17 Motor

4 Assy., Coil 18 Hanger Bracket

5 Assy., Lower Base Panel 19 Assy., Ins. Top Panel

6 Assy., Ins. Fan Deck Hanger 20 Assy., Ins. Service Panel Right

7 Assy.,Ins. Fan Deck 21 Assy., Control Box

8 Right Blower 22 Filter

9 Assy., Ins Water Condensate Guide 23 Control Box Cover

10 Assy., Upper Base Panel 24 Packing Bracket

11 Horizontal Compressor 25 Thermistor Holder

12 Assy., Tubing 26 Rubber Grommet

13 Duct Flange 27 Compressor grommet

14 Assy., Fan Deck Support 28 Left Blower
