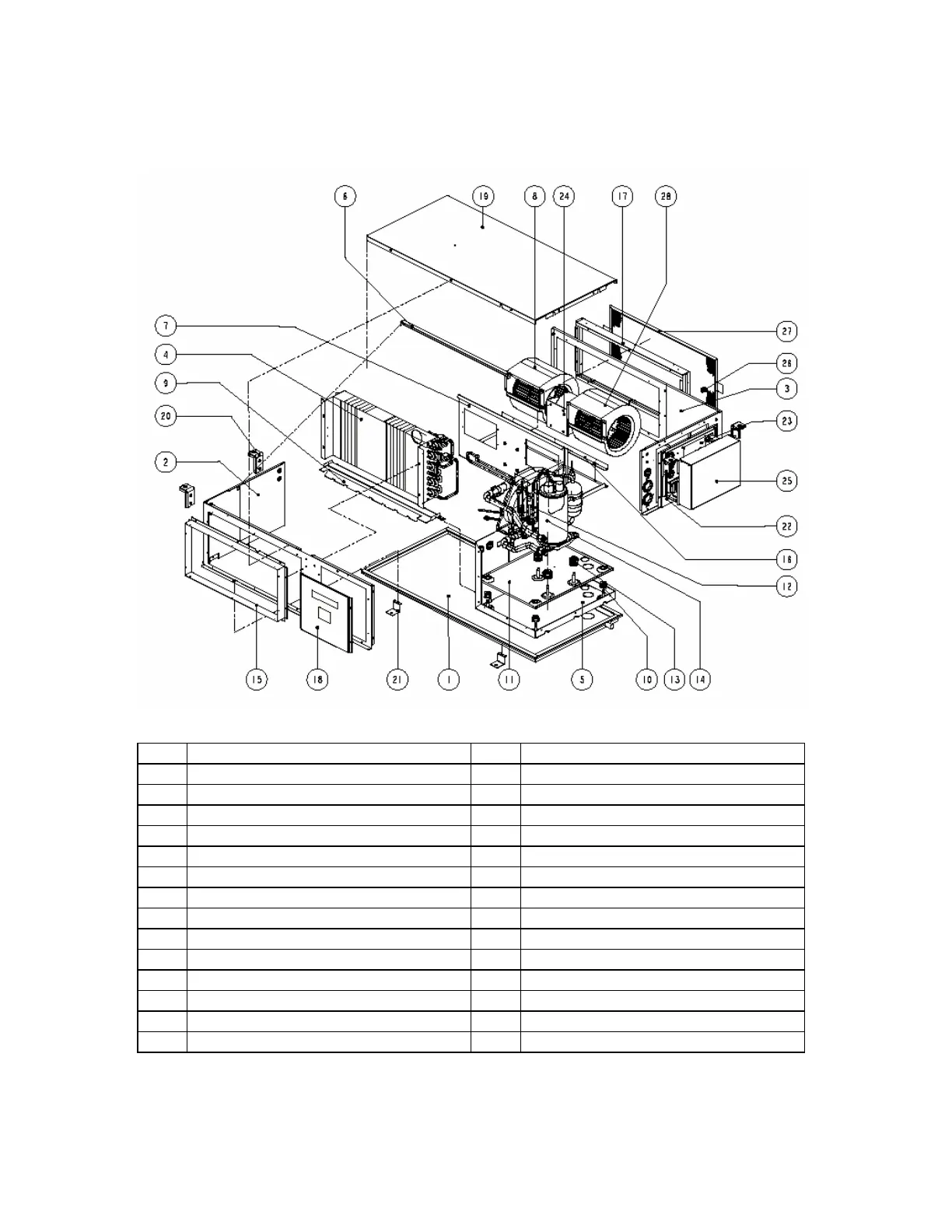

Model : MWH012/15B

No. Description No. Description

1 Assy., Ins. Drain Pan 15 Duct Flange

2 Assy., Ins. Front Panel 16 Assy., Fan Deck Support

3 Assy., Ins. Back Panel 17 Assy., Filter Flange

4 Assy., Coil 18 Assy., Ins. Service Panel

5 Assy., Lower Base Panel 19 Assy., Ins. Top Panel

6 Assy., Ins. Fan Deck Hanger 20 Hanger Bracket

7 Assy.,Ins. Fan Deck 21 Packing Bracket

8 Right Blower 22 Assy., Ins. Service Panel Right

9 Assy., Ins Water Condensate Guide 23 Assy., Control Box

10 Rubber Grommet 24 Motor

11 Assy., Upper Base Panel 25 Control Box Cover

12 Assy., Tubing 26 Thermister Holder

13 Compressor grommet 27 Filter

14 Compressor 28 Left Blower
