McQuay MWH020B User Manual

Model : MWH020B

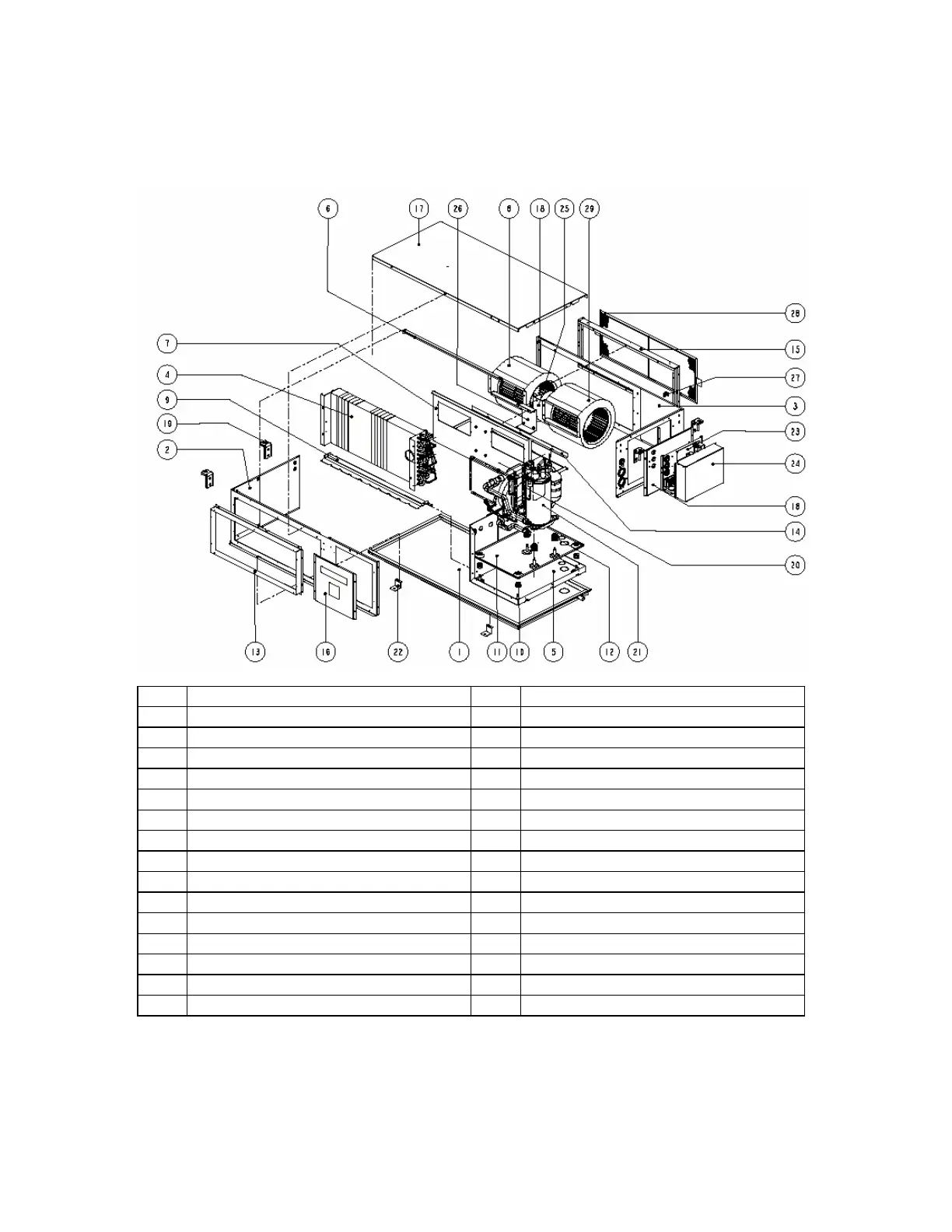

No. Part Description No. Part Description
1 Assy., Ins. Drain Panel 16 Assy., Ins. Front Service Panel
2 Assy., Ins. Front Panel 17 Assy., Ins. Top Panel
3 Assy., Ins. Back Panel 18 Assy., Ins. Right Service Panel
4 Assy., Coil 19 Hanger Bracket
5 Assy., Ins. Comp. Base Lower 20 Assy., Unit Tubing
6 Assy., Ins. Fan Dek Hanger 21 Compressor
7 Assy., Ins. Fan Deck 22 Packing Bracket
8 Blower Right 23 Assy., Electrical Box
9 Assy., Ins. Water Condensate Guide 24 Electrical Box Cover
10 Rubber Grommet 25 Motor
11 Assy., Ins. Comp. Base Upper 26 Assy., Motor Support
12 Compressor Grommet 27 Thermistor Holder
13 Duct Flange 28 Air Filter
14 Assy., Fan Deck Support 29 Blower Left
15 Assy., Filter Flange
52
