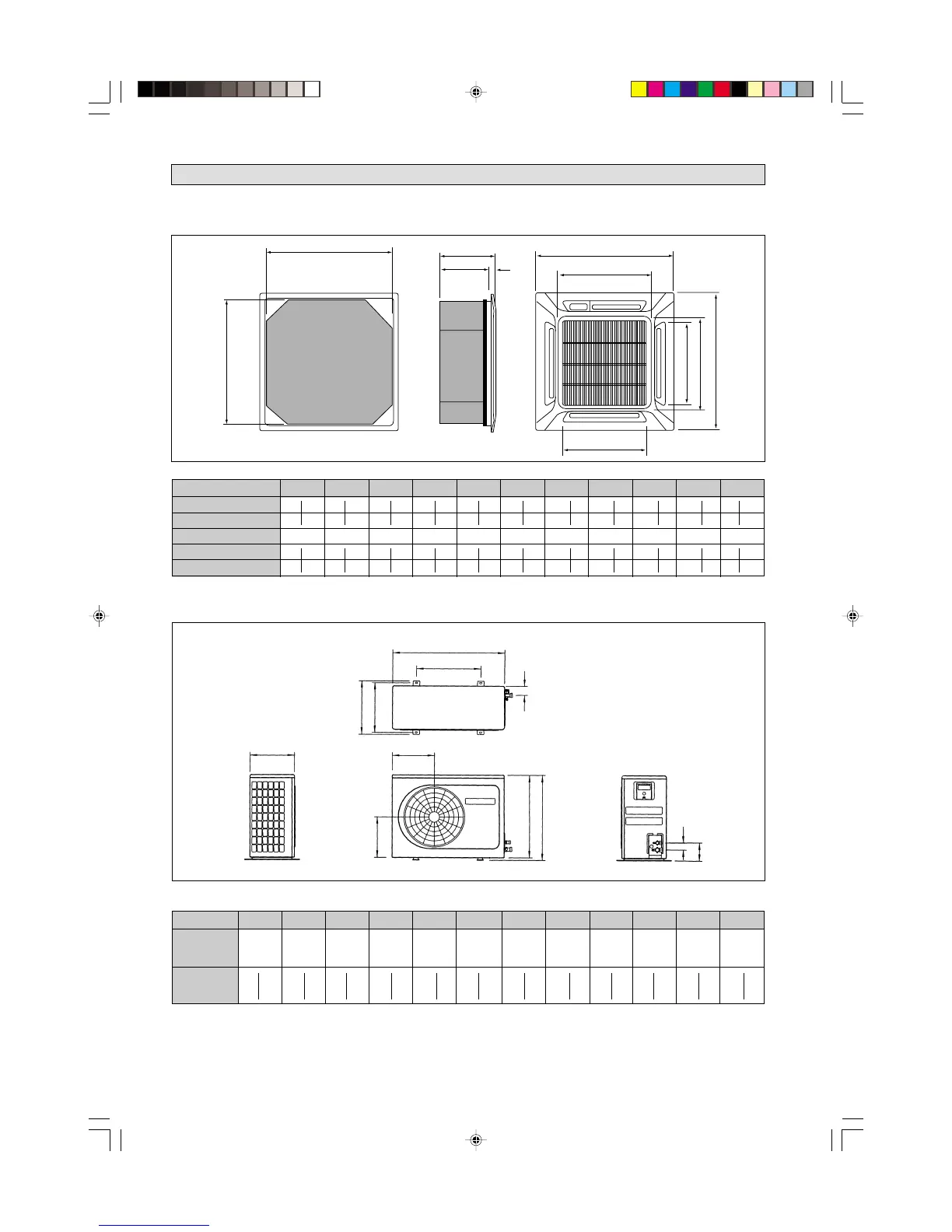

McQuay RCM20D

1-4
MODEL 20 25 30 40 50
A 1174 1174 1174 1674 1674
B 75 75 75 75 75
C 1082 1082 1082 1582 1582
D 68 68 68 68 68
E 58 58 93 93 93
F 156 156 156 156 156
G 1214 1214 1214 1714 1714
H 57 57 57 57 57
I 670 670 670 670 670
J 216 216 216 216 216
K 319 319 319 319 319
L 879 879 879 1379 1379
M 517 517 517 517 517

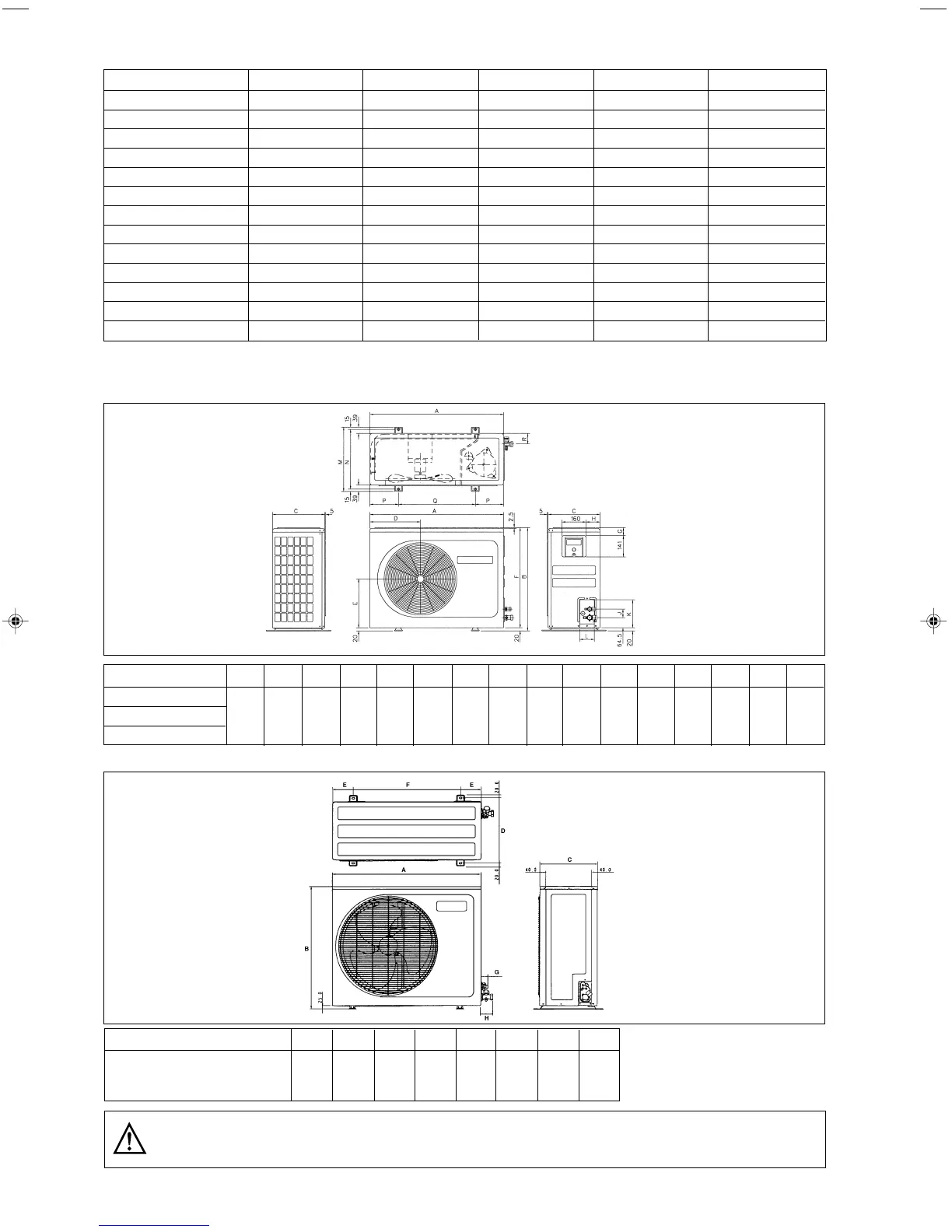

OUTDOOR UNIT
SL SERIES
MODEL A B C D E F G H J K L M N P Q R
SL 20B/20BR
SL 25B/25BR 840 646 330 297 309 626 46 90 64 177 106 408 378 124 492 78.5
SL 30B/30BR
SLC SERIES
All dimensions are in mm.
Sharp edges and coil surfaces are potential locations which may cause injury
hazards. Avoid from being in contact with these places.
Caution
All dimensions in mm.
MODEL A B C D E F G H
SL30C/40C/50C
30CR/40CR/50CR
1030 850 400 448 141.5 746.5 50 85
