PowerBook G4 (FireWire 800) 15-inch 26
Important: When reconnecting the keyboard cable, make sure
that it is inserted into the logic board connector straight so as to
ensure that the data lines in the cable line up with the appropriate
paths on the connector.
Important: When reconnecting the keyboard cable, make sure
that it is inserted into the logic board connector straight so as to
ensure that the data paths in the cable line up with the appropri-
ate points on the connector.
Step 17: Lift off the top case and carefully set it aside with the keyboard
facing downward.

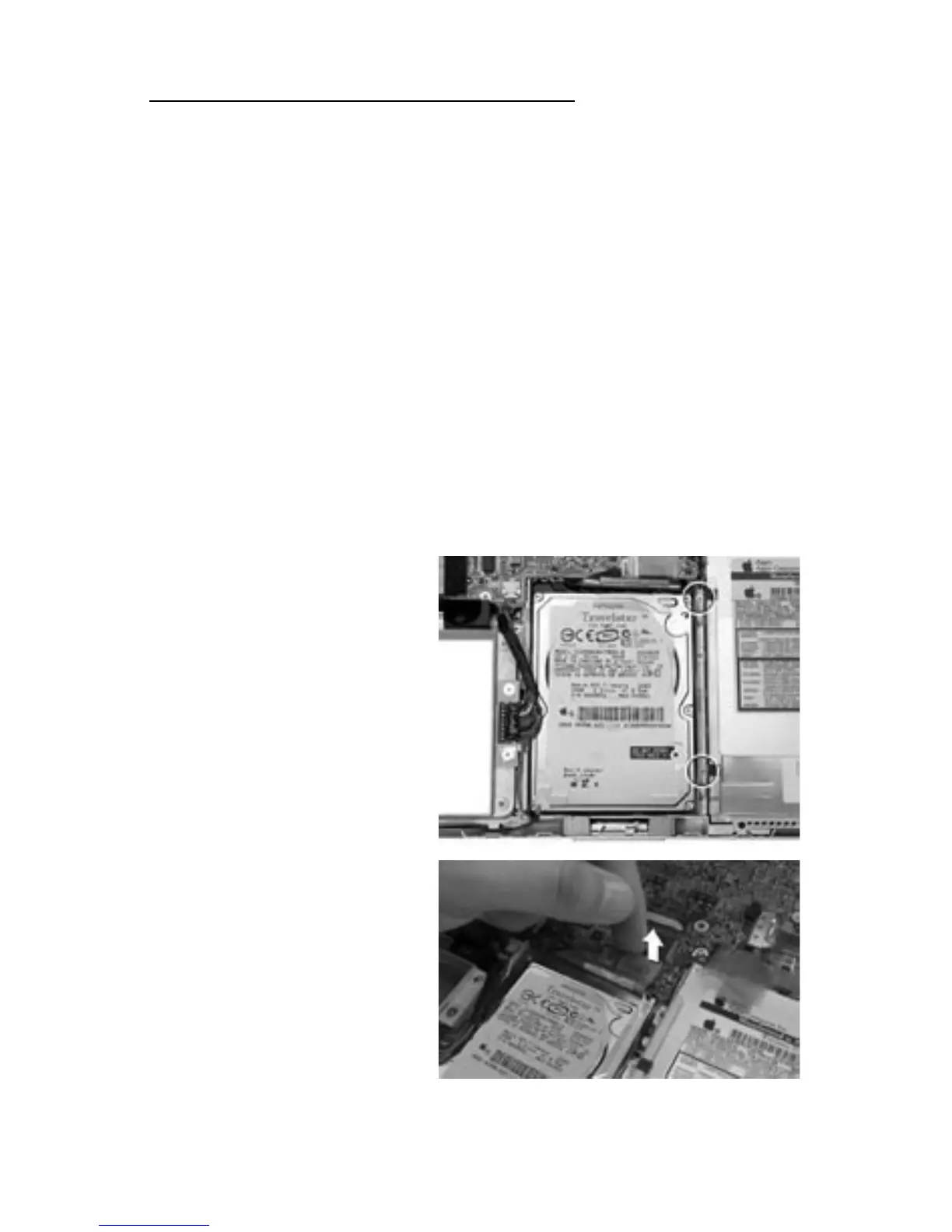

Step 18: Remove the two
screws securing the bracket
along the right edge of the hard
drive.
Step 19: Lift the bracket out of
its slot.
Step 20: Carefully peel back
the orange tape covering the
hard drive and its connector.
Step 21: Carefully disconnect
the hard drive cable from the
logic board by prying its con-
nector upward using a nger-
nail.
