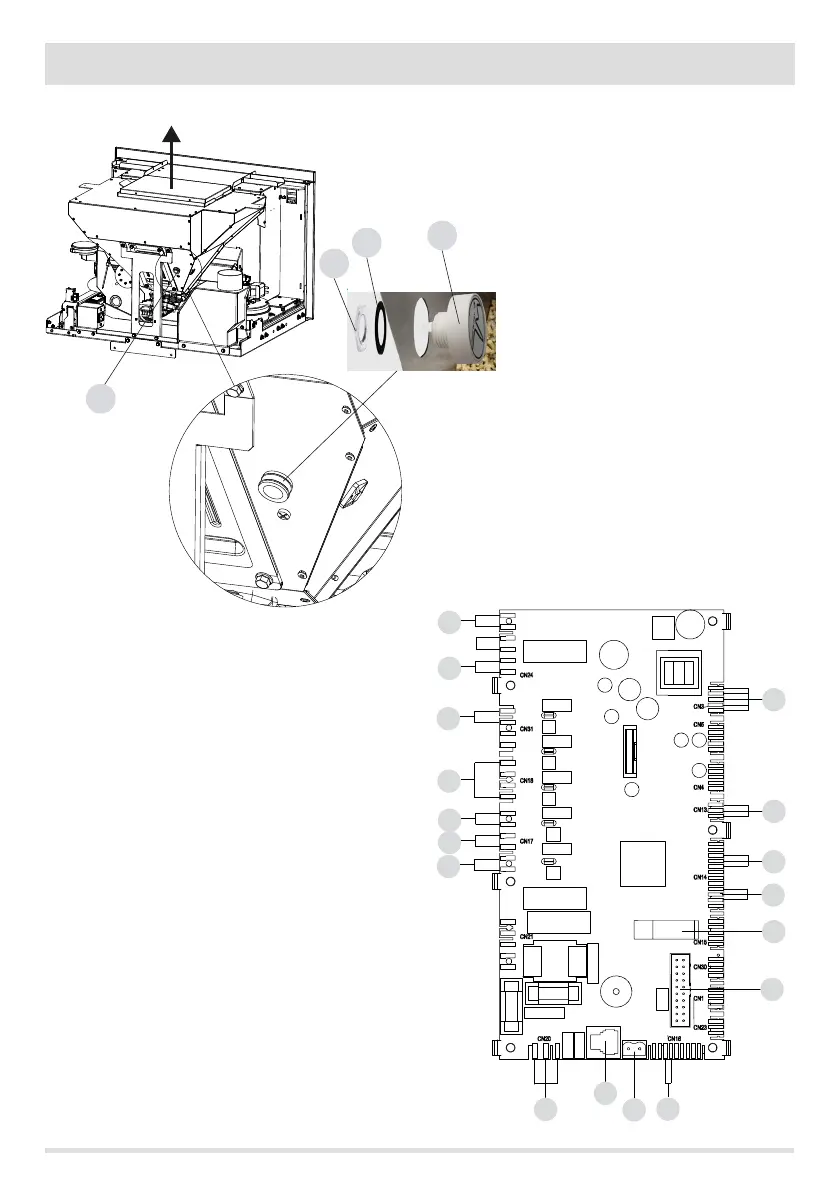

ASSEMBLING PELLET LEVEL SENSOR
The pellet sensor is a low fuel indicator that warns the user that the
pellets are nishing.
With the hopper empty, lift the pellet loading cover and manually
remove the cap “J” tted inside, then insert the pellet level sensor “K”
from inside the hopper.
The sensor is locked to the tank by externally mounting the seal “s” and
rmly securing it with the ring nut “t”.
The sensor must then be connected to position 16 on the circuit board
with the cable supplied.
