MCZ BOXTHERM 70 AIR 9 BASIC M1 - 35-Circuit Board

1
8
2
3
7
6
5
4
11
14
15
17
9
10
12
13
16
61

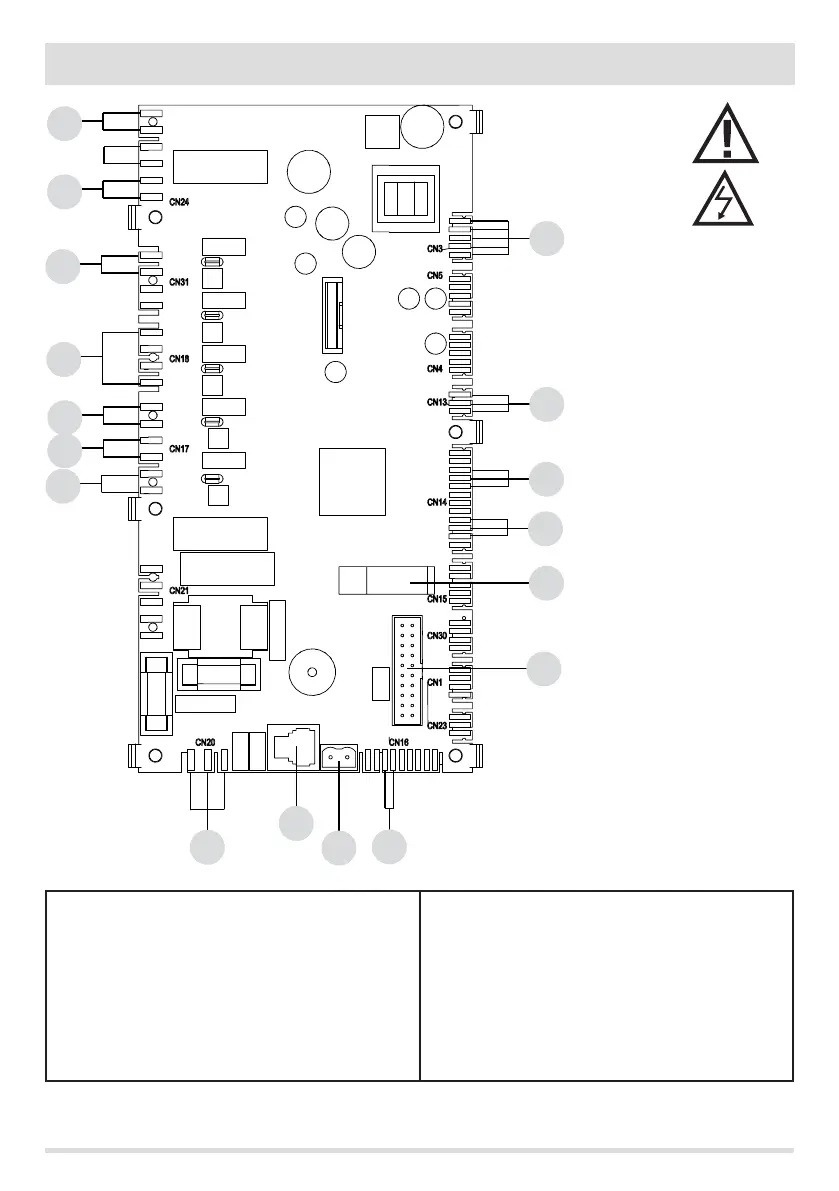

35-CIRCUIT BOARD
Technical Dept. - All rights reserved - Reproduction prohibited
KEY
1. KLIXON
2. AIR PRESSURE SWITCH
3. AIR FAN 3 (IF ANY)
4. AIR FAN 2 (IF ANY)
ROOM FAN (FAN 1)
5. FEED SCREW
6. SMOKE FAN
7. GLOW PLUG
8. BOARD POWER SUPPLY
9. MAESTRO CONTROL PANEL (OPTIONAL)
10. SMOKE TEMPERATURE PROBE
11. ROOM PROBE
12. EMERGENCY PANEL
13. SOFTWARE UPDATE (USB)
14. SMOKE FAN ENCODER
15. PRESSURE DIFFERENTIAL
16. PELLET SENSOR (OPTIONAL)
17. GEAR MOTOR
PLEASE NOTE The electrical wiring of individual components is tted with pre-wired connectors of dierent sizes.
LIVE ELECTRICAL CABLES
DISCONNECT THE POWER
SUPPLY CABLE 230V
BEFORE CARRYING OUT
ANY OPERATIONS ON THE
ELECTRICAL BOARDS
