CLEANING THE SMOKE DUCT AND FITTING

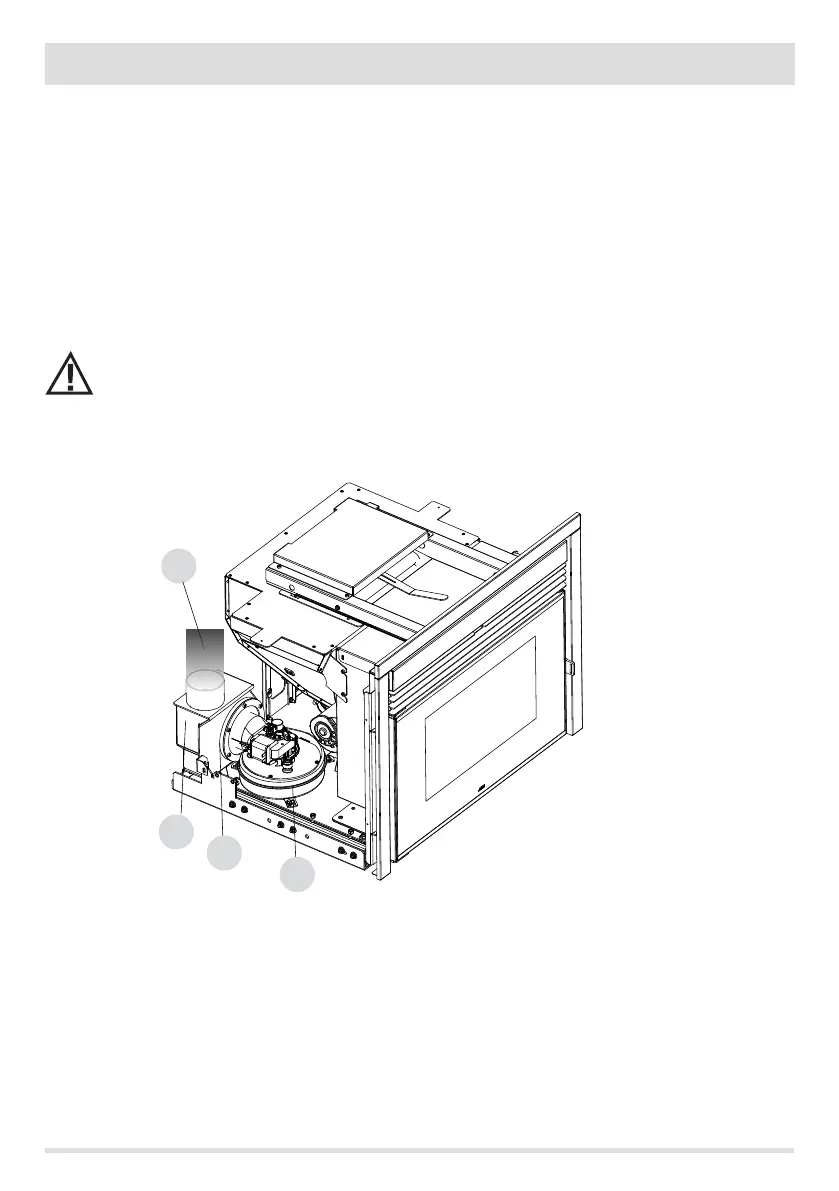

When the product has been extracted, it is possible to operate on the left side to clean and maintain the smoke fan (1). Clearly, the smoke
evacuation fan must be removed for such maintenance to be performed.
A gasket (3) is applied on the fan outlet, which guarantees the tightness with the smoke tting (2). Always ensure this gasket is intact and
if necessary, replace it. The gasket can also be adjusted via a screw. The pressure on the tting can be increased or decreased by loosening
the screw.
The ue connection is housed, with its ash collection compartment (4), on the rear/side of the product, where the fan outlet is. Also clean
this compartment with a vacuum cleaner by inserting the nozzle on the fan inlet hole.
Then clean the smoke exhaust system, especially around the ttings, curves and any horizontal sections. For information on cleaning the
ue, contact a chimney sweeper.
ATTENTION! The frequency with which the smoke exhaust system is cleaned depends on the use of the product and
the type of installation.
We recommend relying on an authorised service centre for end-of-season cleaning and maintenance, as they will
carry out all of the previously mentioned work and inspect the stove components.
OTHER CHECKS
All gaskets tted on components subject to maintenance (smoke extraction fan, inspection panels, etc...) must be replaced when these
parts are taken down for maintenance. Verify the tightness of the gaskets on the rebox door and if necessary, contact an authorized
service centre for them to be replaced.
