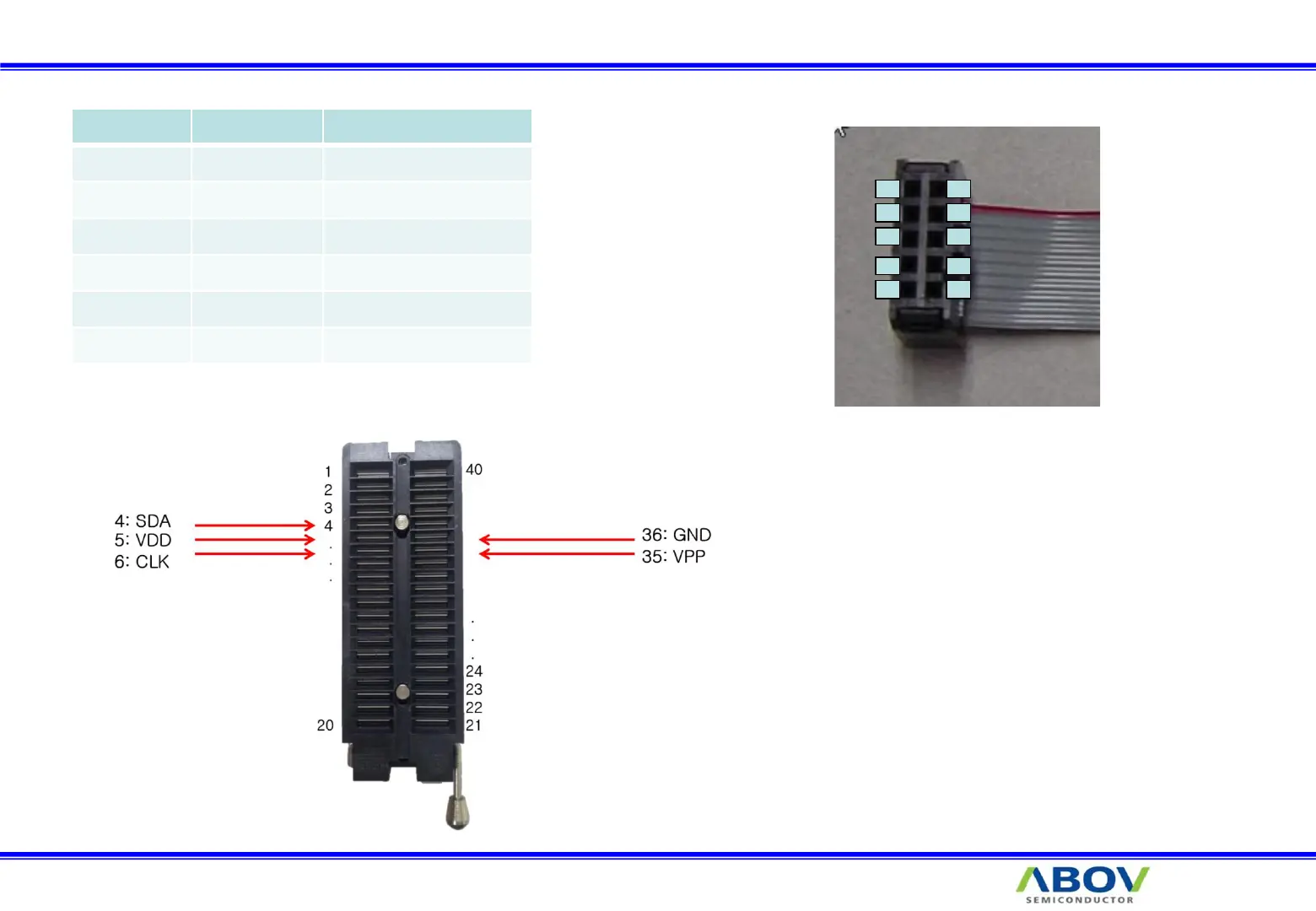

MDS E-PGM+ - Socket and ISP Connector Pinouts; Pin Mapping for Socket and ISP

MDS
7
2
4
6
8
10
1
3
5
7
9
1. MCU UART-RX
2. VDD
3. MCU UART-TX
4. GND
5. Run Flag or Boot Pin or ACK
6. Serial Clock
7. GND
8. Serial Data
9. N/A
10. VPP or Reset Pin
Signal Socket ISP connector
VDD 5 2
GND 36 4
CLOCK 6 6
DATA 4 8
VPP 35 10
Run Flag 7 5
4. Pin name of Socket and ISP connector
