MDS E-PGM+ - Device Connections: AC33 M Series UART; UART Connections for AC33 M Devices

MDS
8

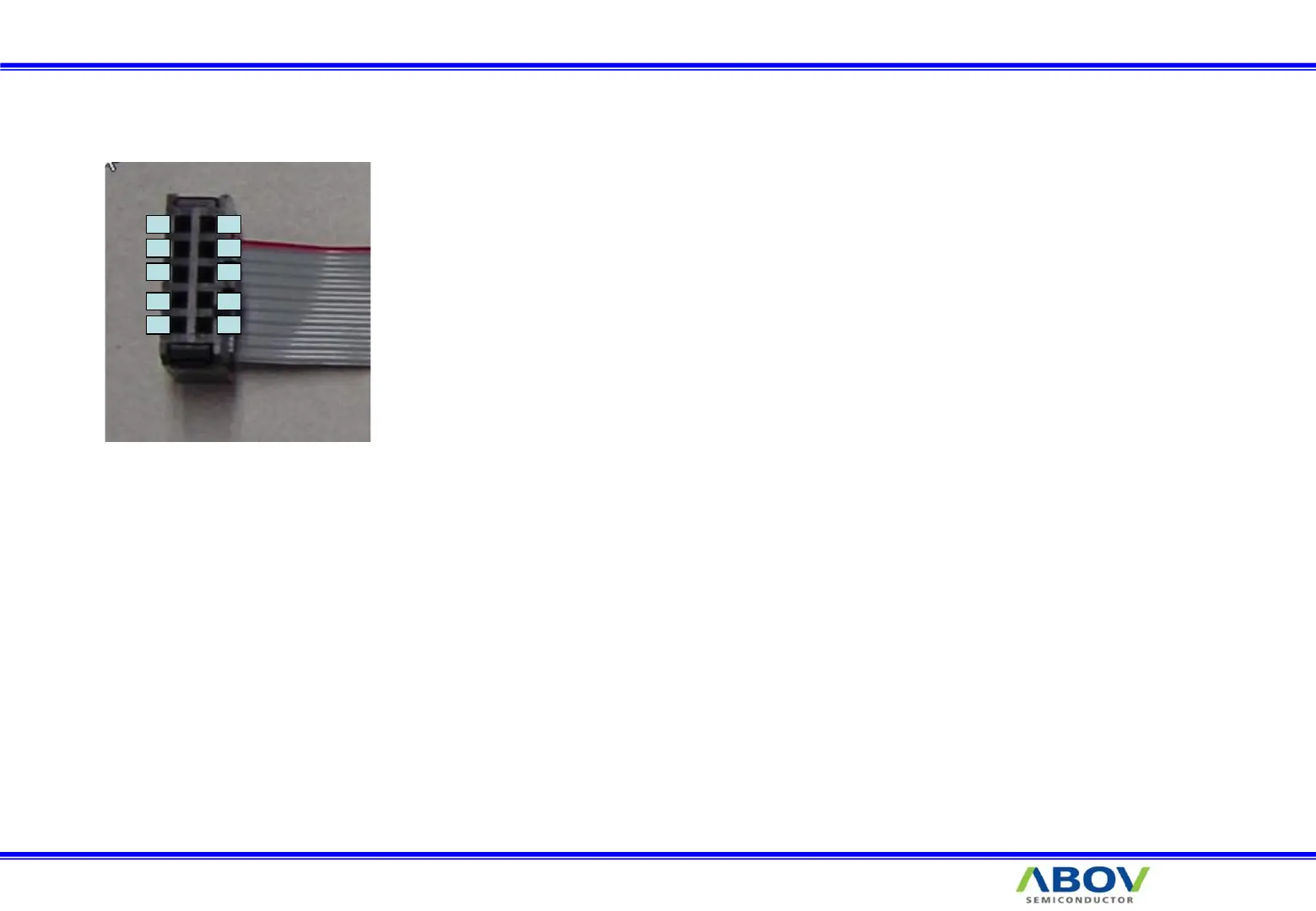

5-1. Device connections - AC33M6128/8128, AC33M3064/4064
2
4
6
8
10
1
3
5
7
9
1. MCU RX : connect to the uart rx0 pin of the device.
2. VDD
3. MCU TX : : connect to the uart tx0 pin of the device.
4. GND
5. Boot Pin
6. N/A
7. N/A
8. N/A
9. N/A
10. Reset
UART
Warning
The E-PGM+ supplies VDD with the target board.
* Do not turn on a user target board.
* The E-PGM+ can be damaged when the power of the target B/D is on.
