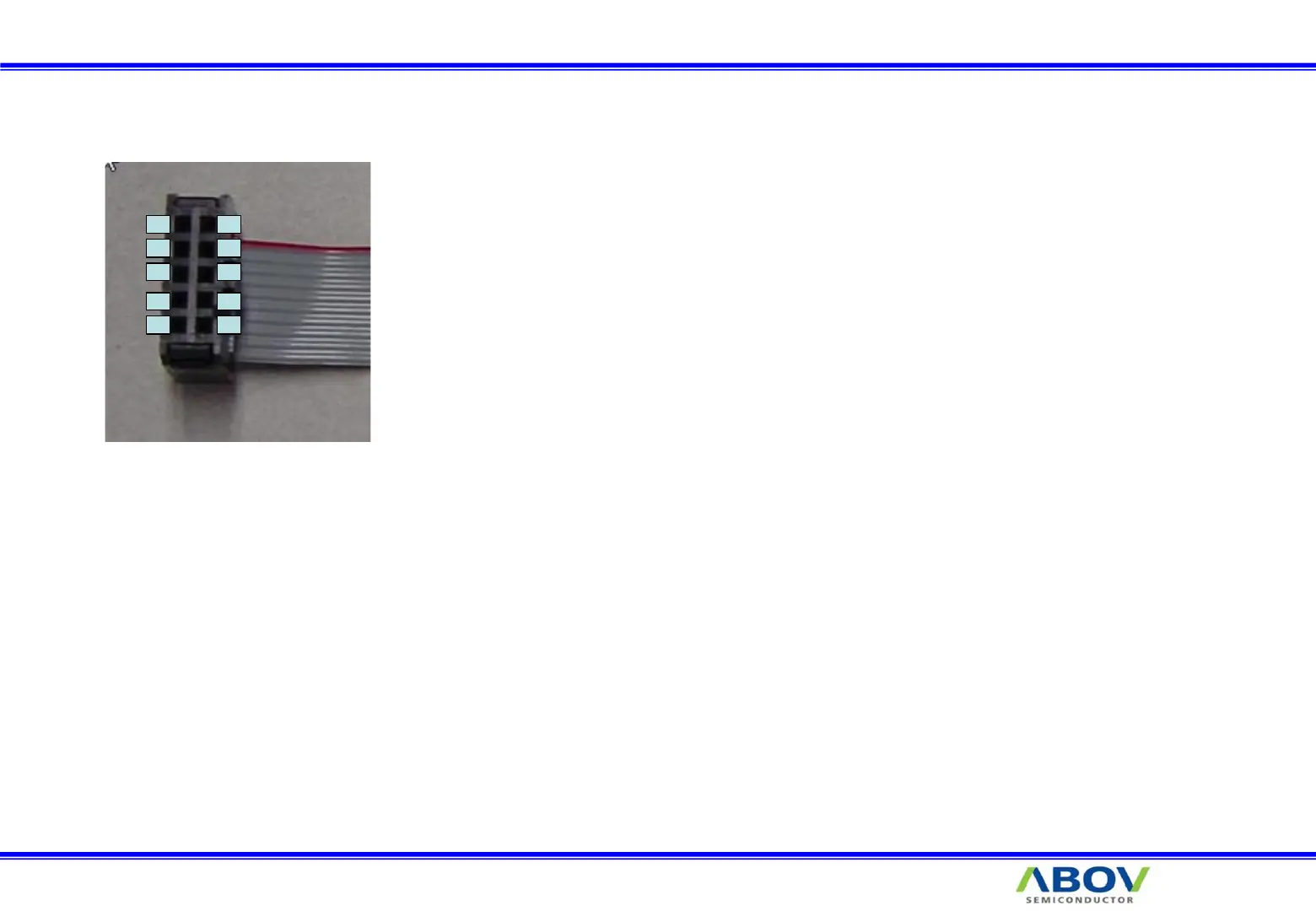

5-2. Device connections – MC80F7708 UART ISP
2
4
6
8
10
1
3
5
7
9
1. MCU RX : connect to the uart rx0 pin of the device.
2. VDD
3. MCU TX : connect to the uart tx0 pin of the device.
4. GND
5. ACK
6. N/A
7. N/A
8. N/A
9. N/A
10. Vpp
UART
Warning
The E-PGM+ supplies VDD with the target board.
* Do not turn on a user target board.
* The E-PGM+ can be damaged when the power of the target B/D is on.
