MDS E-PGM+ - Device Connections: 32-bit MCU SWD; SWD Interface Connections

MDS
10

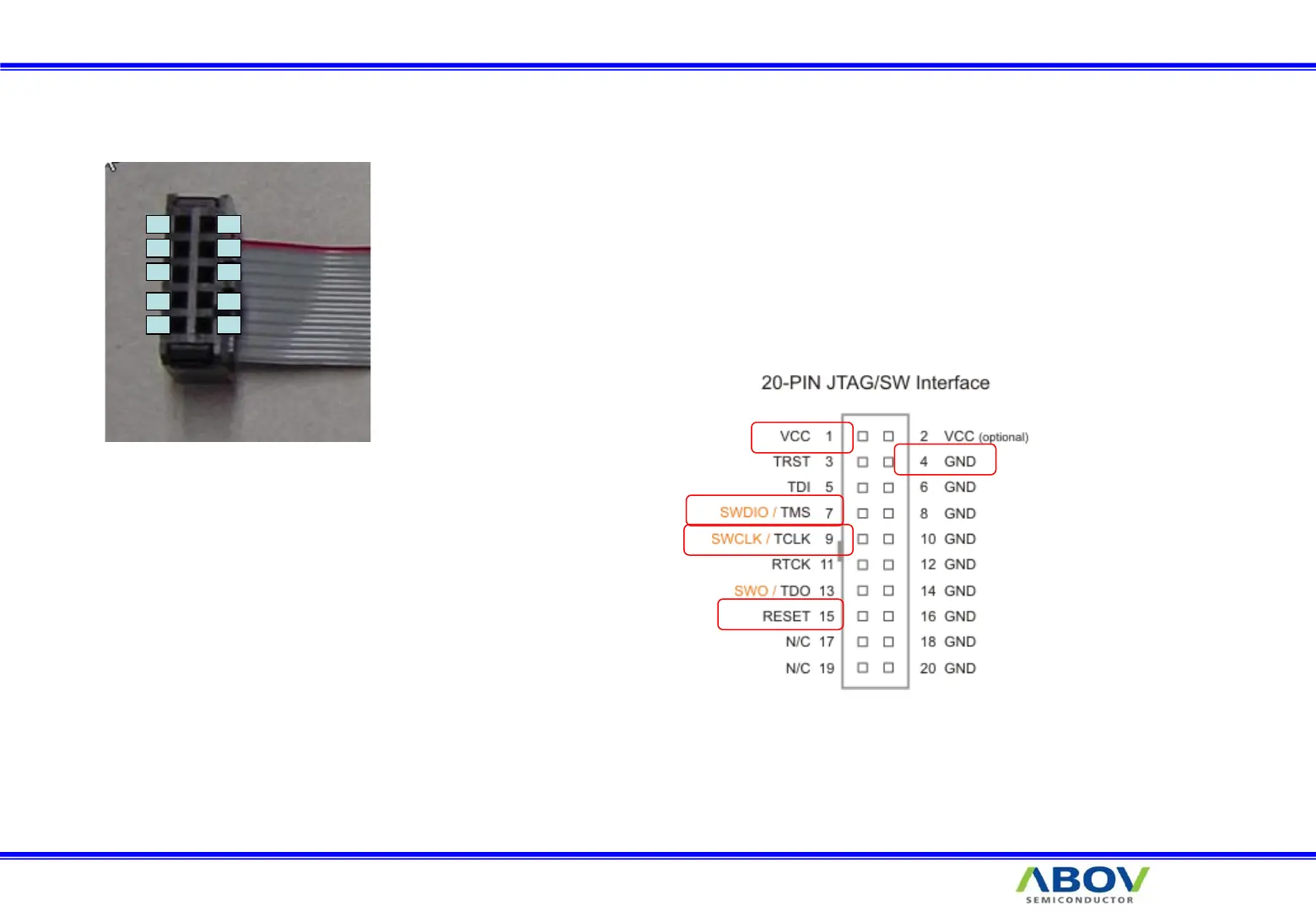

5-3. Device connections – 32bit MCU SWD interface
2
4
6
8
10
1
3
5
7
9
1. N/A
2. VDD
3. N/A
4. GND
5. N/A
6. SWCLK
7. N/A
8. SWDIO
9. N/A
10. Reset
* Reset : If the debug pins are disabled by a firmware, swd-connection is failed. To solve it, reset pin should be connected.
SWD(Serial Wire Debug)
Warning
The E-PGM+ supplies VDD with the target board.
* Do not turn on a user target board.
* The E-PGM+ can be damaged when the power of the target B/D is on.
