6．External view and display

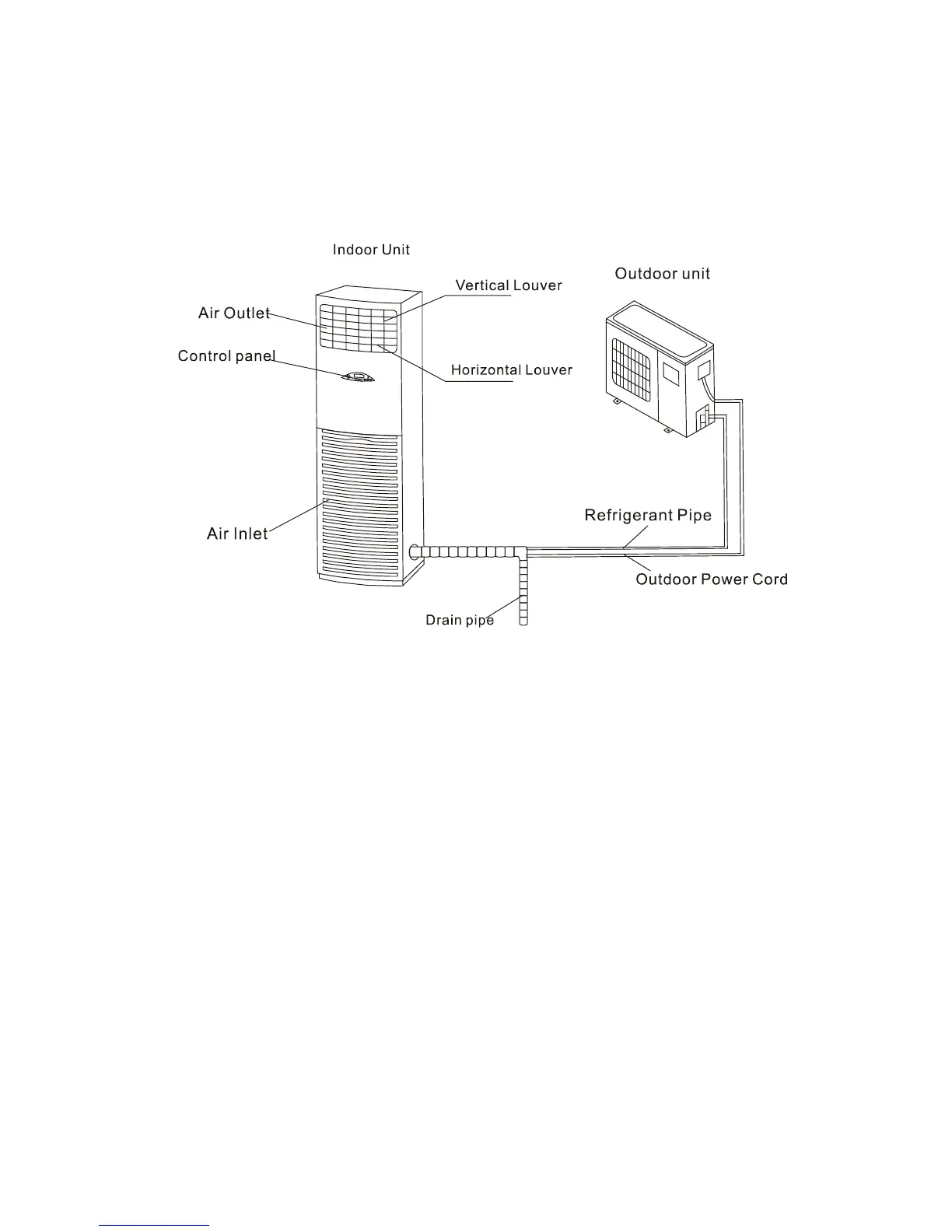

6.1 External view
This unit consists of indoor unit and outdoor unit.
Note:
The above air conditioner's outer shape is based on the standard model, so it may be
different from the one you purchased.
Air Outlet Let the conditioned air go out from it.
Control Panel(LCD) Consists of indicators and control buttons.
Air Inlet Where a filter is settled, absorbing the air in the room and clean it.
Drain Pipe From which the condensed water is drained.
Refrigerant Pipe In which the refrigerant passes through, connects the outdoor unit
with the indoor unit.
