PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3
3.
o
o
Verify that "PCMCIA adapters" is listed in the Device Manager. If you don’t find this entry, or if the
properties for the adapter indicate "this device is not working," you need to install or update your PCMCIA
adapter drivers.
If the PCMCIA adapter is not listed, use the
Add New Hardware Wizard to install PCMCIA support.
If the PCMCIA adapter is listed but not working, use the
Update Driver option to install the
appropriate drivers.
After performing the update procedure, reboot your PC and insert your card again.
Connecting the board for I/O operations
Connectors, cables – main I/O connector
The table below lists the board connector, applicable cables, and compatible accessory products.
Board connector, cables, and accessory equipment
Connector type 50-pin connector
CPCC-50F-39: 50-pin Micro connector to 50-pin female IDC, one-meter cable (39 inches).
Compatible cables
CPCC-50M-4: 50-pin Micro connector to 50-pin male IDC, 4 inch adapter cable.
and
C50FF-x: 50-
in IDC female to female cable. x = length in feet.
Compatible accessory
products
CIO-MINI50
CIO-SPADE50
CIO-TERM100
SCB-50
SSR-RACK24
CIO-ERB24
CIO-SERB24
Pin out – main I/O connector

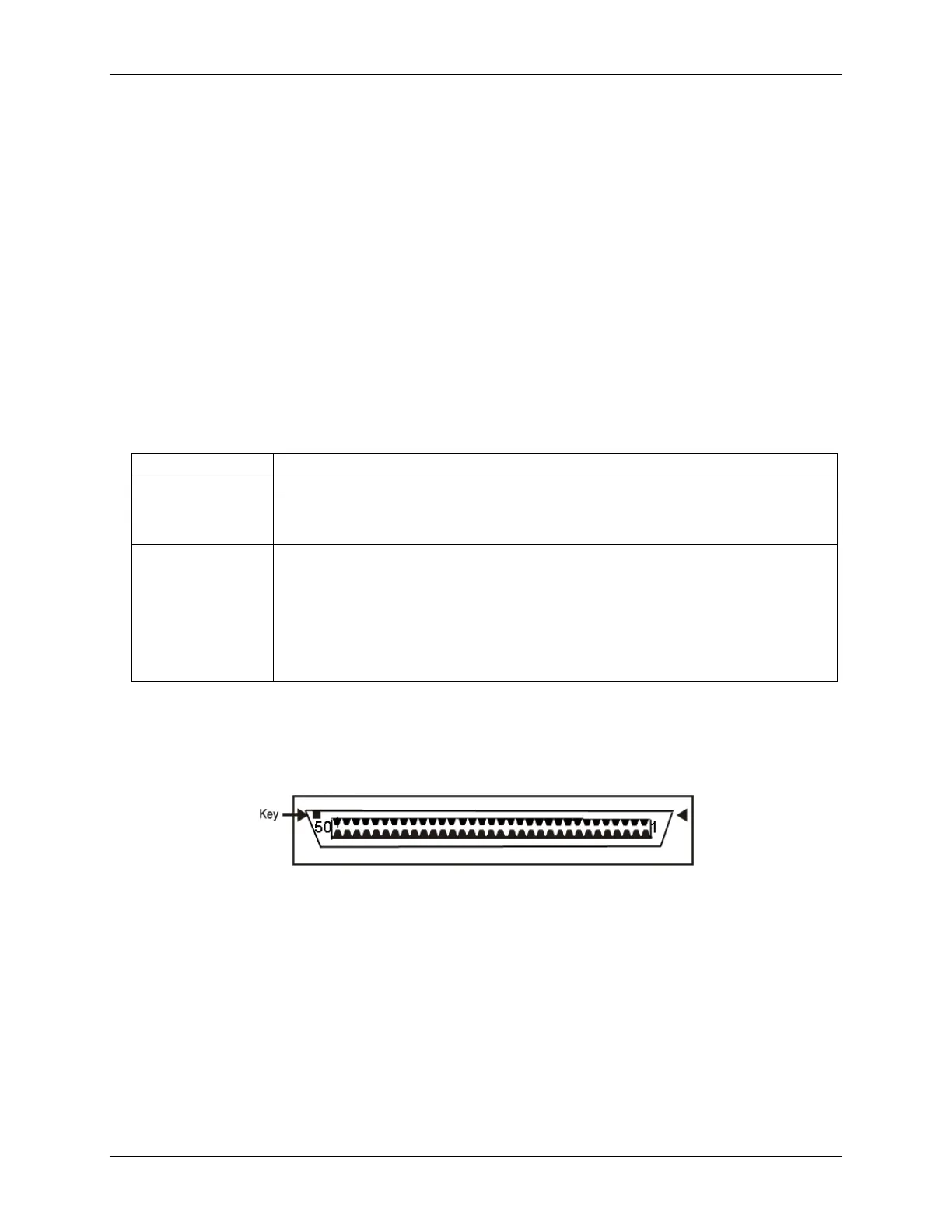

Figure 3
Figure 3. 50-pin I/O mini-connector
shows a PC-CARD-D24/CTR3 case looking into the male mini-connector. The connector is
mechanically keyed to insure that the cable is inserted correctly.
10
