PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3
Cabling
Measurement Computing offers two cables for connecting the PC-CARD-D24/CTR3 to a screw-type terminal
board or other signal conditioning interface board:
 The CPCC-50F-39 cable: 39 inches (990 mm) long; and compatible with standard 50-pin screw terminal
products.
 The CPCC-50M-4 cable: four-inch long adapter cable; required when using a C50FF-x series cable.
CPCC-50M-4 cable end
(connect to C50FF-x)
2GND
4GND
6GND
8GND
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 A6
28 A4
30 A2
32 A0
34 B6
36 B4
38 B2
40 B0
42 C6
44 C4
46 C2
48 C0
50 GND
Ext Int 1
Int Enable 3
CTR1 CLK 5
CTR1 Gate 7
CTR1 Out 9
CTR2 CLK 11
CTR2 Gate 13
CTR2 Out 15
CTR3 CLK 17
CTR3 Gate 19
CTR3 Out 21
1 MHz Out 23
A7 25
A5 27
A3 29
A1 31
B7 33
B5 35
B3 37
B1 39
C7 41
C5 43
C3 45
C1 47
+5V 49
1
50
PC-CARD end

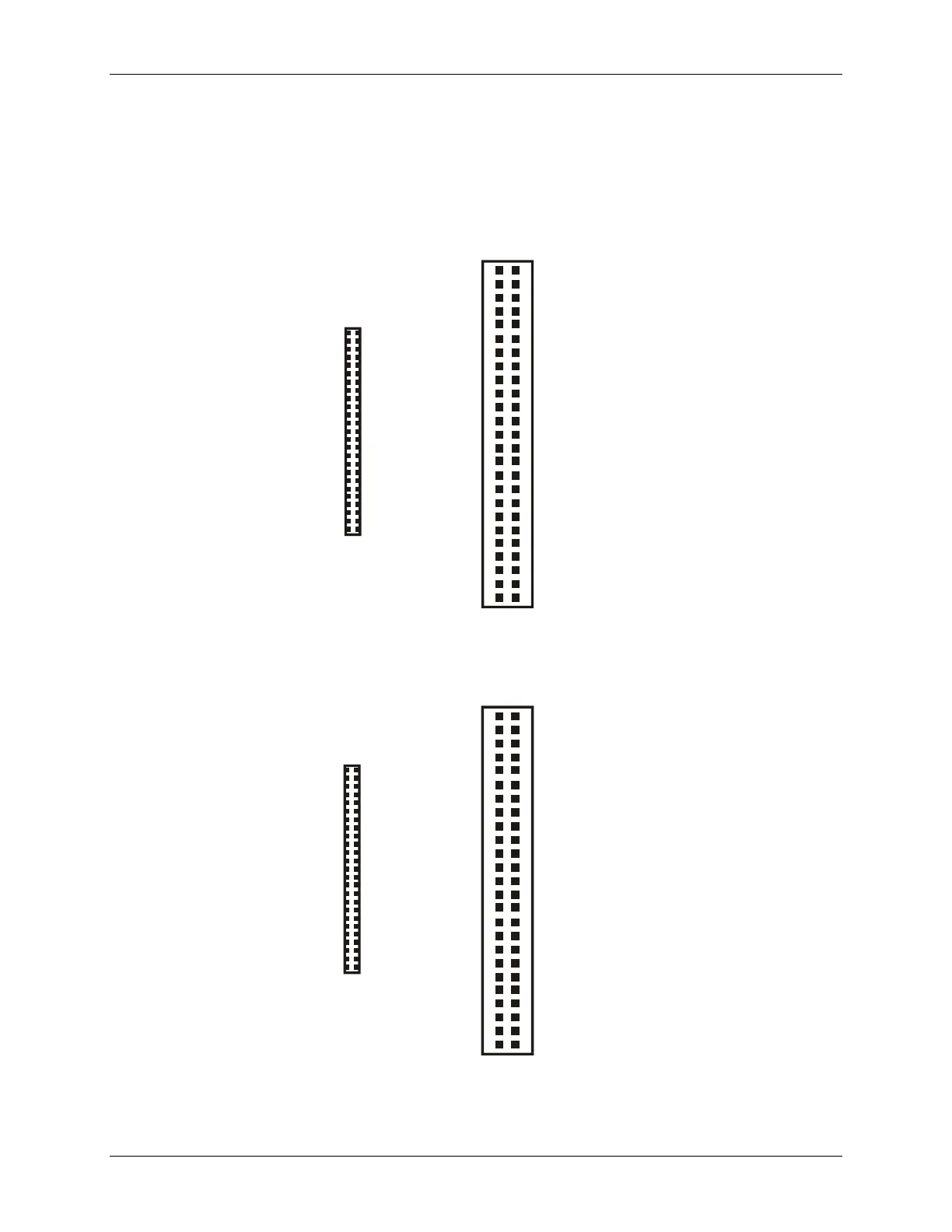

Figure 4. Cable map — PC-CARD to CPCC-50M-4
CPCC-50F-39 cable end
(connect to screw terminal or relay boards)
GND 2
GND 4
GND 6
GND 8
GND 10
GND 12
GND 14
GND 16
GND 18
GND 20
GND 22
GND 24
A6 26
A4 28
A2 30
A0 32
B6 34
B4 36
B2 38
B0 40
C6 42
C4 44
C2 46
C0 48
GND 50
1Ext Int
3Int Enable
5CTR1 Clk
7CTR1 Gate
9CTR1 Out
11 CTR2 Clk
13 CTR2 Gate
15 CTR2 Out
17 CTR3 Clk
19 CTR3 Gate
21 CTR3 Out
23 1 MHz Out
25 A7
27 A5
29 A3
31 A1
33 B7
35 B5
37 B3
39 B1
41 C7
43 C5
45 C3
47 C1
49 +5V
1
50
PC-CARD end
Figure 5. Cable map — PC-CARD to CPCC-50F-39
11
