Measurement Computing PC-CARD-D24/CTR3 User Manual

PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3
Figure 6

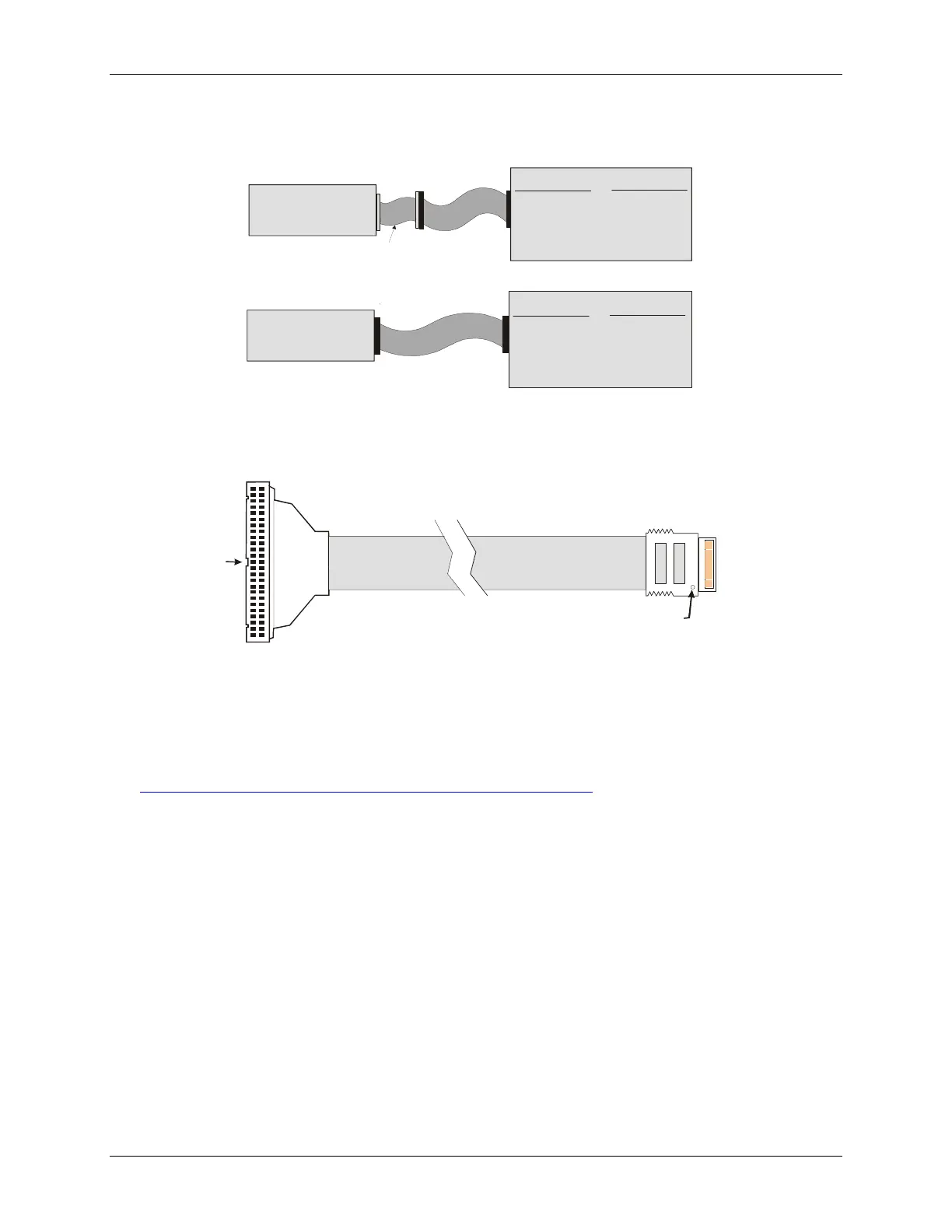

Figure 6. Connecting to screw terminal or relay boards
shows a map of the two methods of cabling the PC-CARD-D24/CTR3 to various screw terminal or
signal conditioning boards.
C50FF-#
TERMINALS
CIO-MINI50
CIO-SPADE 50
CIO-TERM100
SCB-50
RELAYS
SSR-RACK24
CIO-ERB24
CIO-SERB24
PC-CARD-D24/CTR3
CPCC-50M-4
TERMINALS
CIO-MINI50
CIO-SPADE 50
CIO-TERM100
SCB-50
RELAYS
SSR-RACK24
CIO-ERB24
CIO-SERB24
PC-CARD-D24/CTR3
CPCC-50F-39
OR
CPCC-50F-39
50-pin female IDC connector.
50
49
2
1
Dot
50-pin micro connector.
Connect to the I/O connector
on the PC-CARD
with the dot facing UP.
Key
50
1
Figure 7. CPCC-50F-39 cable connections
Details on the CPCC-50F-39 cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=105&pf_id=1379
.
12
