PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3
CPCC-50M-4
If your application requires a cable that is longer than one meter in length, use the CPCC-50M-4 four-inch
cable, and connect to a C50FF-x cable.
50-pin male IDC connector.
Connect to a C50FF-x cable.
49
50
1
2
50-pin micro connector.
Connect to the I/O connector
on the PC-CARD
with the dot facing UP.
Dot
50
1

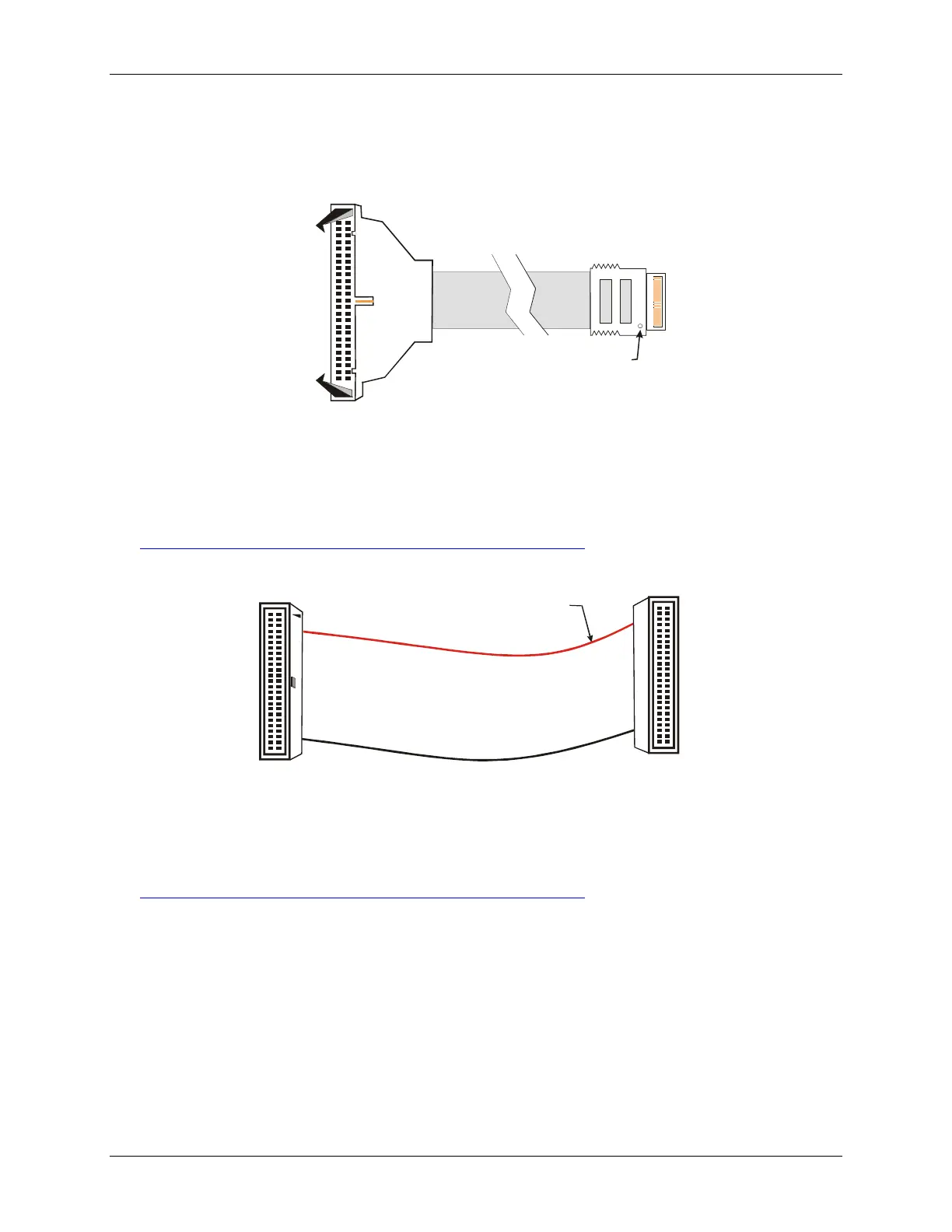

Figure 8. CPCC-50M-4 cable connections
Details on the CPCC-50M-4 cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=96&pf_id=1380
.
C50FF-x
The red stripe
identifies pin # 1
50-pin female
IDC connector
50-pin female
IDC connector
1
2
49
50
2
50
1
49
Figure 9. C50FF-x cable
Details on the C50FF-x cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=104&pf_id=136
.
13
