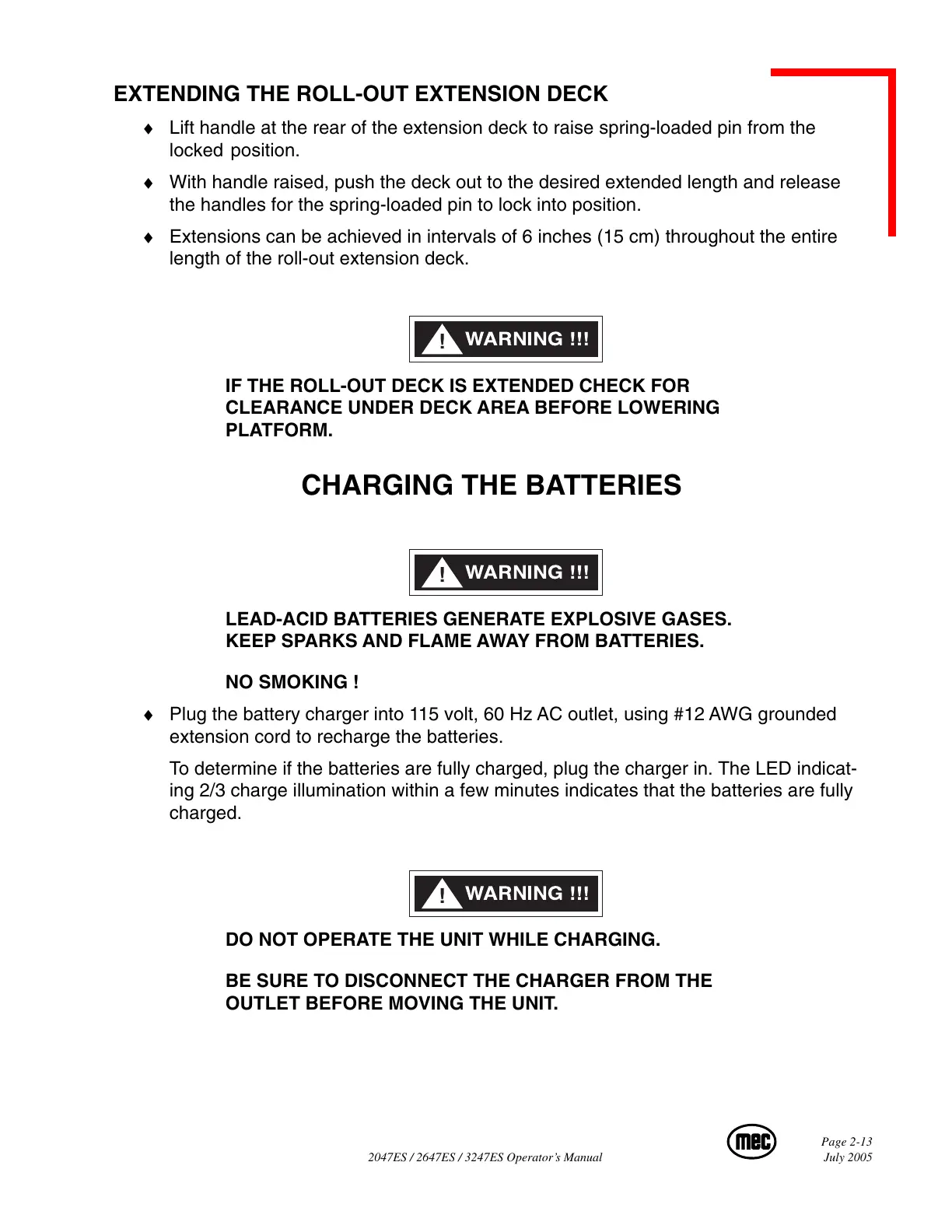

Page 2-13
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
EXTENDING THE ROLL-OUT EXTENSION DECK
♦ Lift handle at the rear of the extension deck to raise spring-loaded pin from the
locked position.
♦ With handle raised, push the deck out to the desired extended length and release
the handles for the spring-loaded pin to lock into position.
♦ Extensions can be achieved in intervals of 6 inches (15 cm) throughout the entire
length of the roll-out extension deck.
IF THE ROLL-OUT DECK IS EXTENDED CHECK FOR
CLEARANCE UNDER DECK AREA BEFORE LOWERING
PLATFORM.
CHARGING THE BATTERIES
LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES.
KEEP SPARKS AND FLAME AWAY FROM BATTERIES.
NO SMOKING !
♦ Plug the battery charger into 115 volt, 60 Hz AC outlet, using #12 AWG grounded
extension cord to recharge the batteries.
To determine if the batteries are fully charged, plug the charger in. The LED indicat-
ing 2/3 charge illumination within a few minutes indicates that the batteries are fully
charged.
DO NOT OPERATE THE UNIT WHILE CHARGING.
BE SURE TO DISCONNECT THE CHARGER FROM THE
OUTLET BEFORE MOVING THE UNIT.
