Page iv
July 2005 2047ES / 2647ES / 3247ES Operatorās Manual

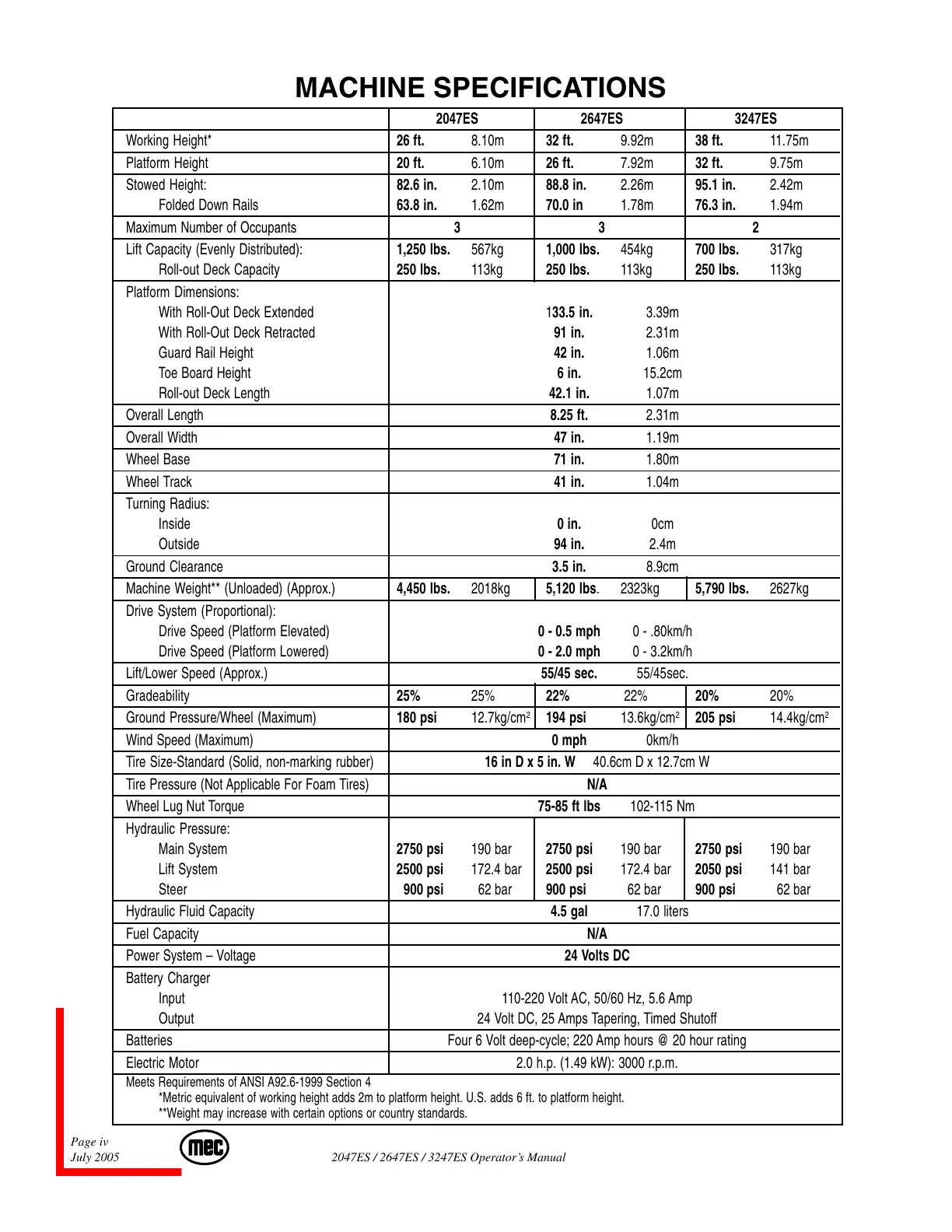

MACHINE SPECIFICATIONS
2047ES 2647ES 3247ES
Working Height* 26 ft. 8.10m 32 ft. 9.92m 38 ft. 11.75m
Platform Height 20 ft. 6.10m 26 ft. 7.92m 32 ft. 9.75m
Stowed Height: 82.6 in. 2.10m 88.8 in. 2.26m 95.1 in. 2.42m
Folded Down Rails 63.8 in. 1.62m 70.0 in 1.78m 76.3 in. 1.94m
Maximum Number of Occupants 33 2
Lift Capacity (Evenly Distributed): 1,250 lbs. 567kg 1,000 lbs. 454kg 700 lbs. 317kg
Roll-out Deck Capacity 250 lbs. 113kg 250 lbs. 113kg 250 lbs. 113kg
Platform Dimensions:
With Roll-Out Deck Extended 133.5 in. 3.39m
With Roll-Out Deck Retracted 91 in. 2.31m
Guard Rail Height 42 in. 1.06m
Toe Board Height 6 in. 15.2cm
Roll-out Deck Length 42.1 in. 1.07m
Overall Length 8.25 ft. 2.31m
Overall Width 47 in. 1.19m
Wheel Base 71 in. 1.80m
Wheel Track 41 in. 1.04m
Turning Radius:
Inside 0 in. 0cm
Outside 94 in. 2.4m
Ground Clearance 3.5 in. 8.9cm
Machine Weight** (Unloaded) (Approx.) 4,450 lbs. 2018kg 5,120 lbs. 2323kg 5,790 lbs. 2627kg
Drive System (Proportional):
Drive Speed (Platform Elevated) 0 - 0.5 mph 0 - .80km/h
Drive Speed (Platform Lowered) 0 - 2.0 mph 0 - 3.2km/h
Lift/Lower Speed (Approx.) 55/45 sec. 55/45sec.
Gradeability 25% 25% 22% 22% 20% 20%
Ground Pressure/Wheel (Maximum) 180 psi 12.7kg/cm
2
194 psi 13.6kg/cm
2
205 psi 14.4kg/cm
2
Wind Speed (Maximum) 0 mph 0km/h
Tire Size-Standard (Solid, non-marking rubber) 16 in D x 5 in. W 40.6cm D x 12.7cm W
Tire Pressure (Not Applicable For Foam Tires) N/A
Wheel Lug Nut Torque 75-85 ft lbs 102-115 Nm
Hydraulic Pressure:
Main System 2750 psi 190 bar 2750 psi 190 bar 2750 psi 190 bar
Lift System 2500 psi 172.4 bar 2500 psi 172.4 bar 2050 psi 141 bar
Steer 900 psi 62 bar 900 psi 62 bar 900 psi 62 bar
Hydraulic Fluid Capacity 4.5 gal 17.0 liters
Fuel Capacity N/A
Power System ā Voltage 24 Volts DC
Battery Charger
Input 110-220 Volt AC, 50/60 Hz, 5.6 Amp
Output 24 Volt DC, 25 Amps Tapering, Timed Shutoff
Batteries Four 6 Volt deep-cycle; 220 Amp hours @ 20 hour rating
Electric Motor 2.0 h.p. (1.49 kW): 3000 r.p.m.
Meets Requirements of ANSI A92.6-1999 Section 4
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
**Weight may increase with certain options or country standards.
