Contents of packaging
Baseplate
1x Baseplate with heel plate
4x M8x30 screw
4x M6x12 screw
4x M8 nut
8x Steel washer
4x Plastic washer
Throttle pedal
1x Throttle pedal
4x T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
+ Accesories
Hydraulic Brake pedal
1x Hydraulic brake pedal
1x Hydraulic pressure transducer cable
6x M6 T-Nut
4x M6x18
Pedal set a s s e m b ly
Place T-Nuts on designated positions into the baseplate
MECA EVO1 Setup Guide | Contents of packaging
MECA EVO 1 Setup Guide | Pedal set assembly
4x Steel washer
4x Plastic washer
Load-cell Brake pedal
1x Load-cell brake pedal
4x M6 T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
1x Set polyurethane bushings (2x Black,
2x Blue, 2x Orange)
Clutch pedal
1x Clutch brake pedal
4x T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
Accesories
1x Electronic box
2x M6 T-Nut
1x USB-C cable
1x Product manual with QR code
1x Long throttle face-plate*
* optional accesory to be bought separately
Only for slave cylinder bracket

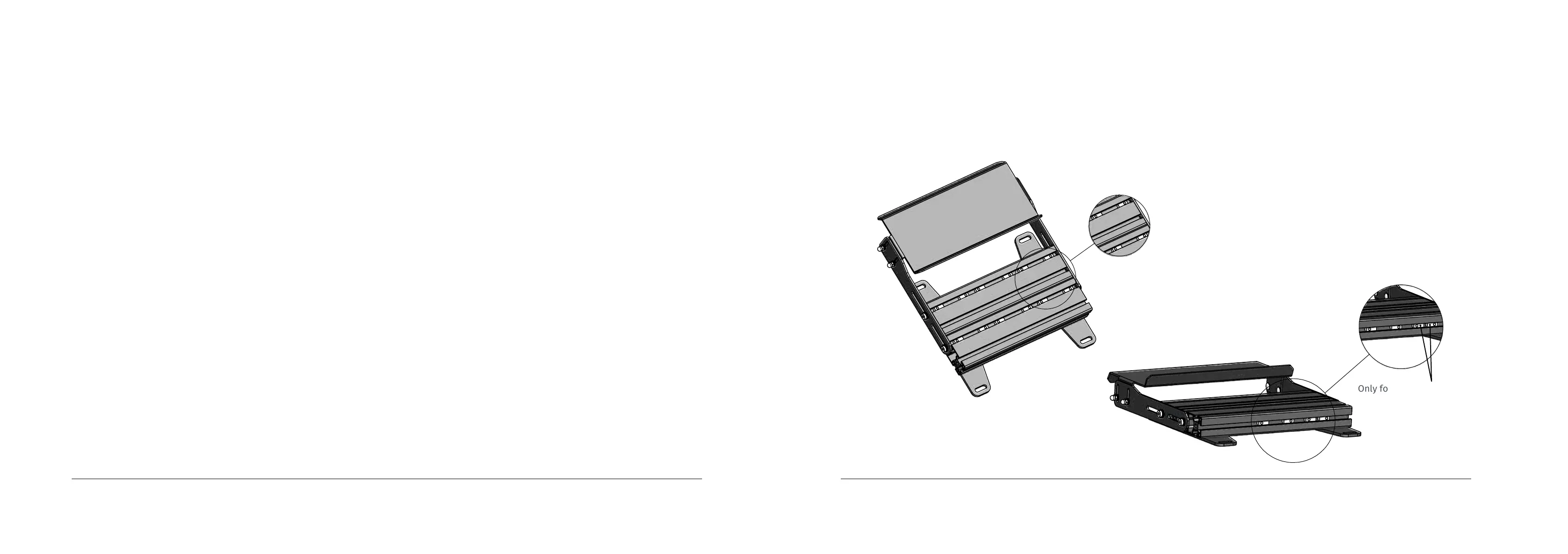

1 ) Bas e p lat e p r e -a s s e m b ly
