8 Mecmesin Assembly and Installation of –i System Test Stands
3.6.1 Limits after connection to the PC, with the software running

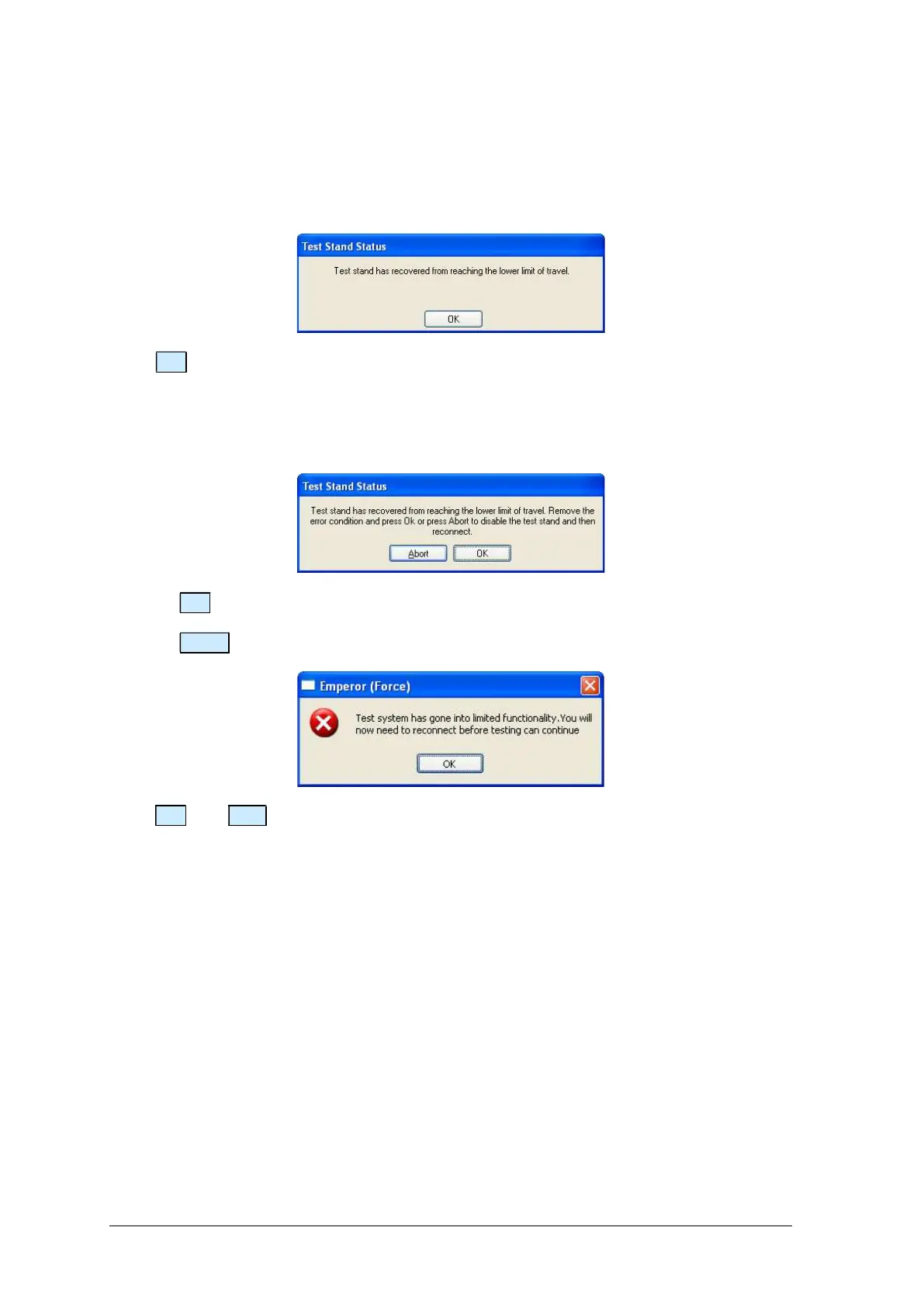

If the crosshead reaches a limit during a test, it will stop then reverse direction for
approximately 5 mm, then stop again. When this happens an onscreen warning message
will be displayed:
Click OK to acknowledge the warning and use the Jog buttons to move the crosshead so
that you can then check the position of the limit stops and re-set if required.
If a limit stop is reached while pressing one of the Jog buttons on the front panel of the
MultiTest-i a different warning message is displayed.
Clicking OK will allow you to correct the situation and continue.
Clicking Abort will disconnect the stand and display the following message:
Click OK then Exit to go to the Front Screen, this will reconnect the stand again.
