Mecmesin Tornado - Data Output Methods; Normal Mode Operation; Analogue Output; RS232 and Digimatic Output

page 9
Press the MAX key again and the display will show the
maximum clockwise torque identified by its symbol.
Press the MAX key again and the display will show the
maximum counter-clockwise torque identified by its
symbol.

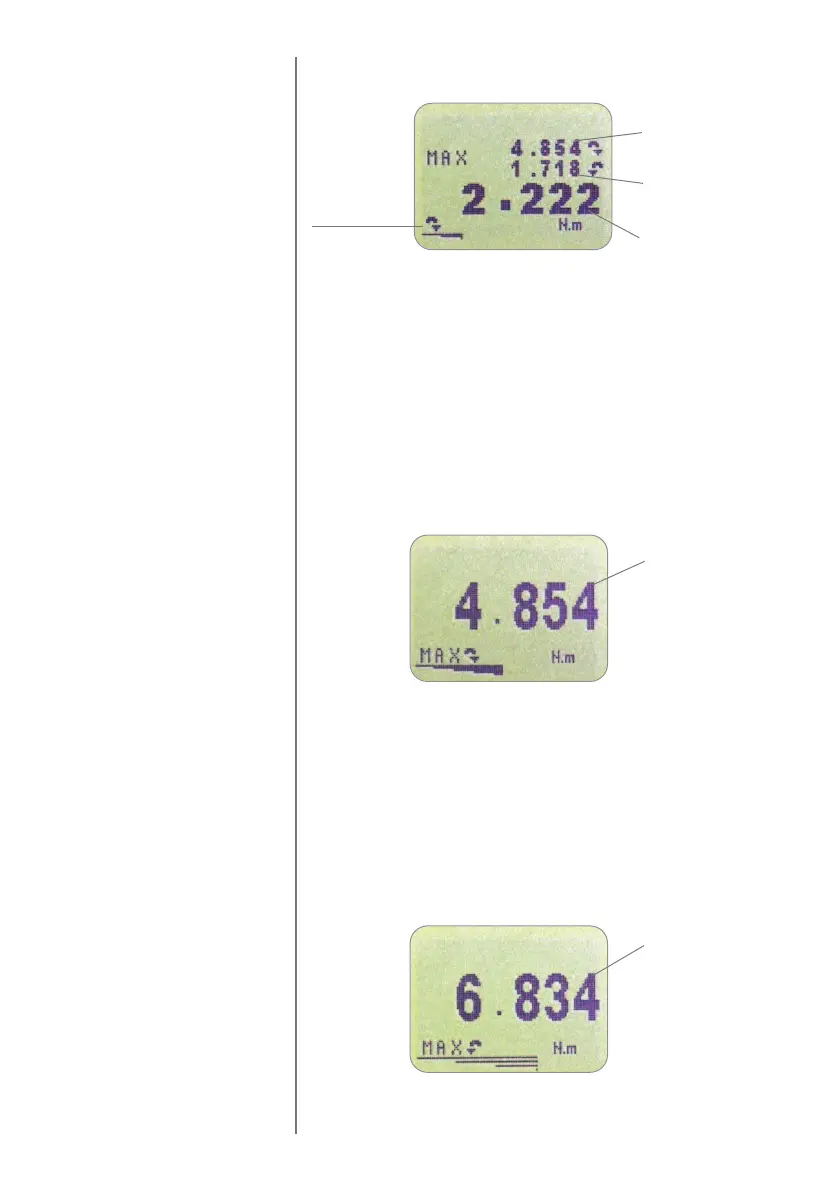

Fig. 4b
Max
counter-clockwise
reading
Fig. 4a
M
ax clockwise
reading
Max counter-
clockwise reading
T
orque currently
applied
Dual max
Max clockwise torque
Max counter-clockwise
torque
Note: When % TAMP EV function
is enabled, different max modes
are shown, see page 19.
Direction of
torque
currently
applied
Max clockwise
reading
Fig. 4c
