MEDCAPTAIN HP-60 - Dismantling the Rear Panel Socket Assembly; Dismantling the Loudspeaker and Ac Socket

Disassembly and Assembly
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 52 / 93
4. Press the fastener on the battery connector to separate the plug and socket, and take out the
battery (4).

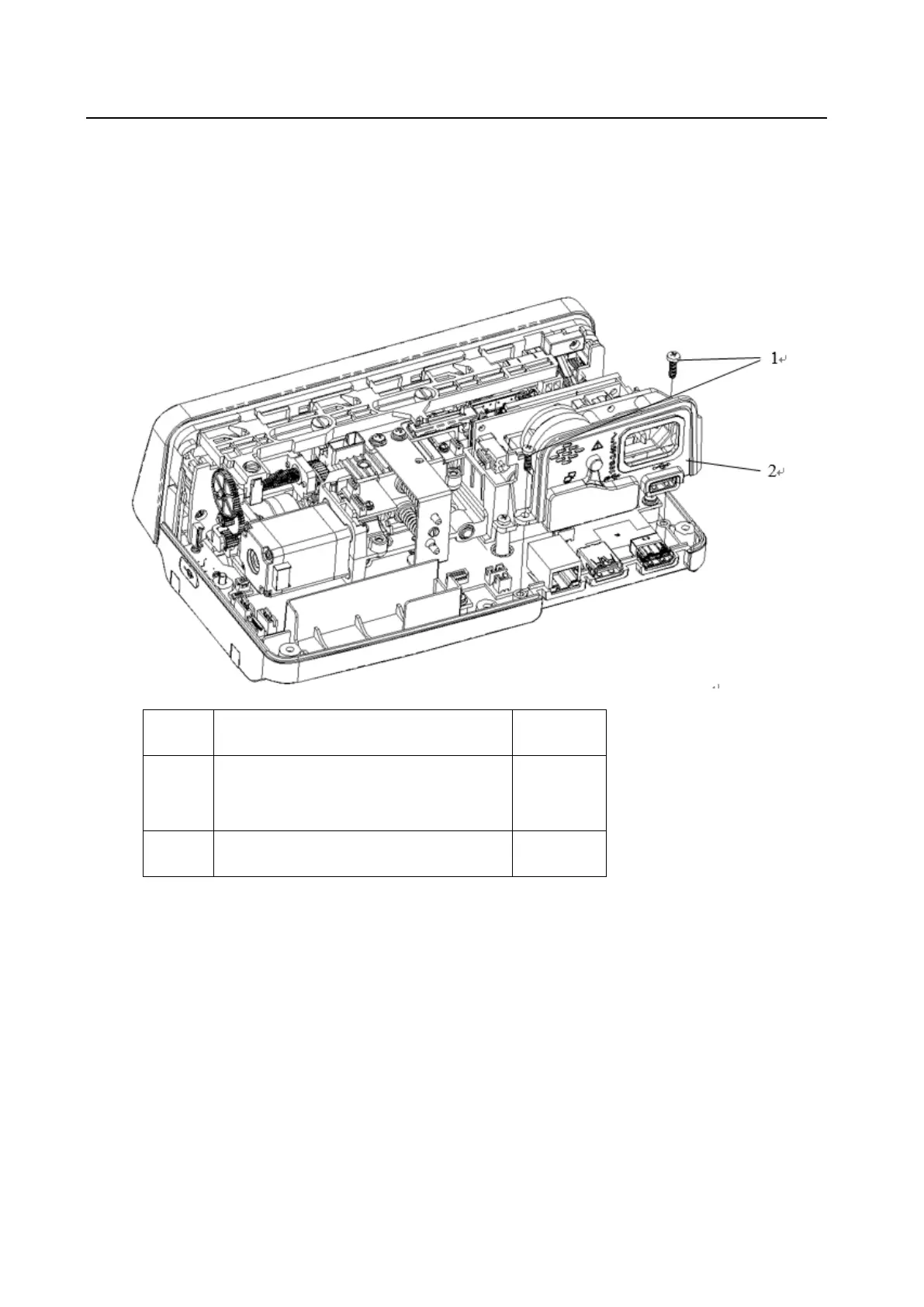

1.1 Dismantling the Rear Panel Socket Assembly
No.
Part Name
Quantity
1
PT3*8 cross recessed pan head drilling PT
thread tapping screw
2
2
HP-60 rear panel socket assembly
1
1. Remove the AC power supply connection cable, ground wire, and loudspeaker connection
cable.
2. Use a Phillips screwdriver to remove the two PT3*8 cross recessed pan head drilling PT thread
tapping screws (1).
3. Take down the rear panel socket assembly.
1.2 Dismantling the Loudspeaker and AC Socket
