Disassembly and Assembly
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 73 / 93
No.
Part Name
Quantity
1
PT2.3*6 cross recessed pan head drilling PT
thread tapping screw
2
2
HP-60 drop sensor interface PCBA
1
3
HP-60 middle plate assembly
1
4
HP-60 pump door assembly
1
1. Take down the HP-60 middle plate assembly (3) and HP-60 pump door assembly (4) according
to the method in section 8.17.
2. Remove the two PT2.3*6 cross recessed pan head drilling PT thread tapping screws (1).
3. Take down the HP-60 drop sensor interface PCBA (2).

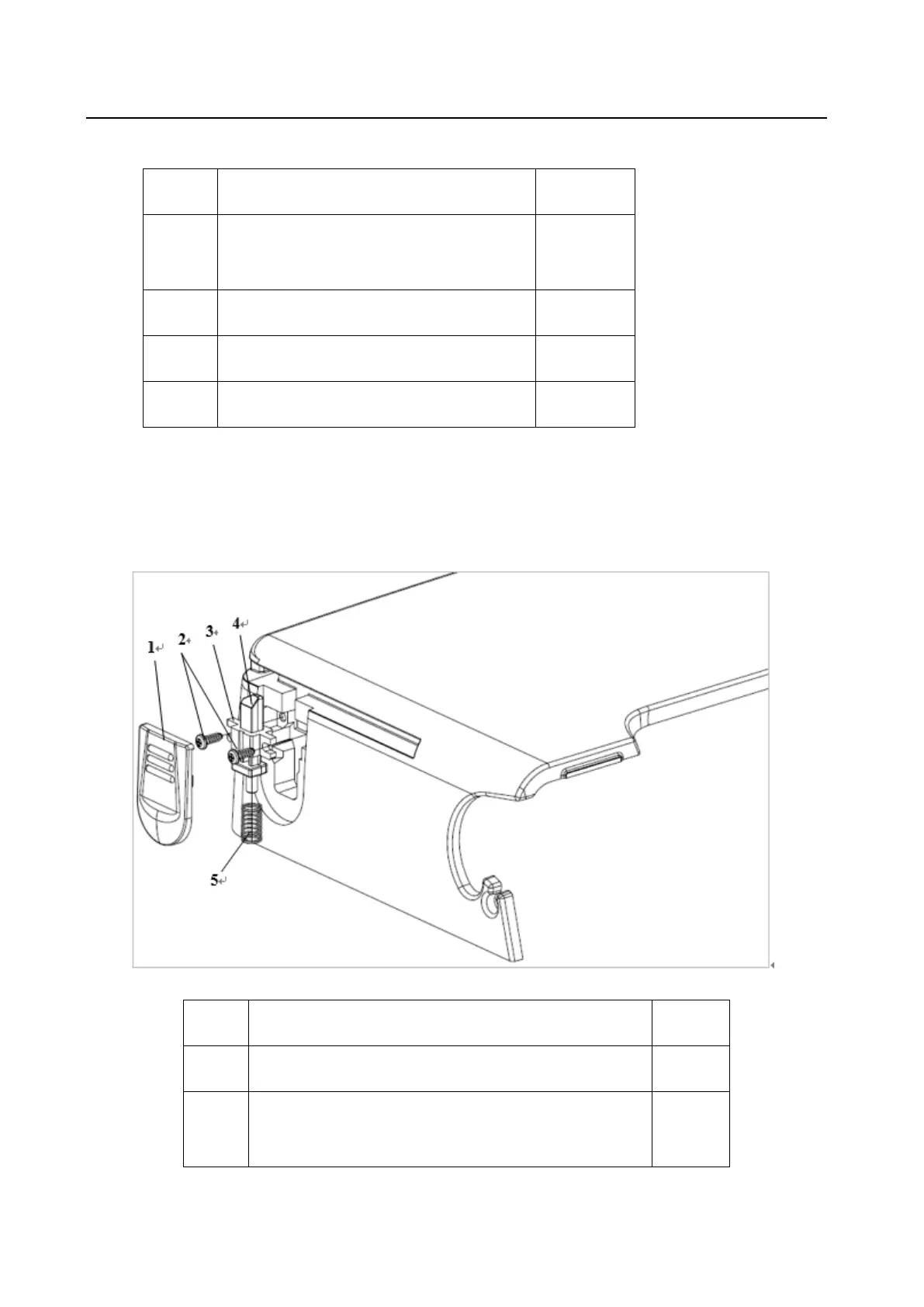

1.18 Dismantling the Fastener Assembly
No.
Part Name
Quantity
1
HP-60 shifting block plate
1
2
PT2.3*6 cross recessed pan head drilling PT thread
tapping screw
2
