Disassembly and Assembly
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 64 / 93

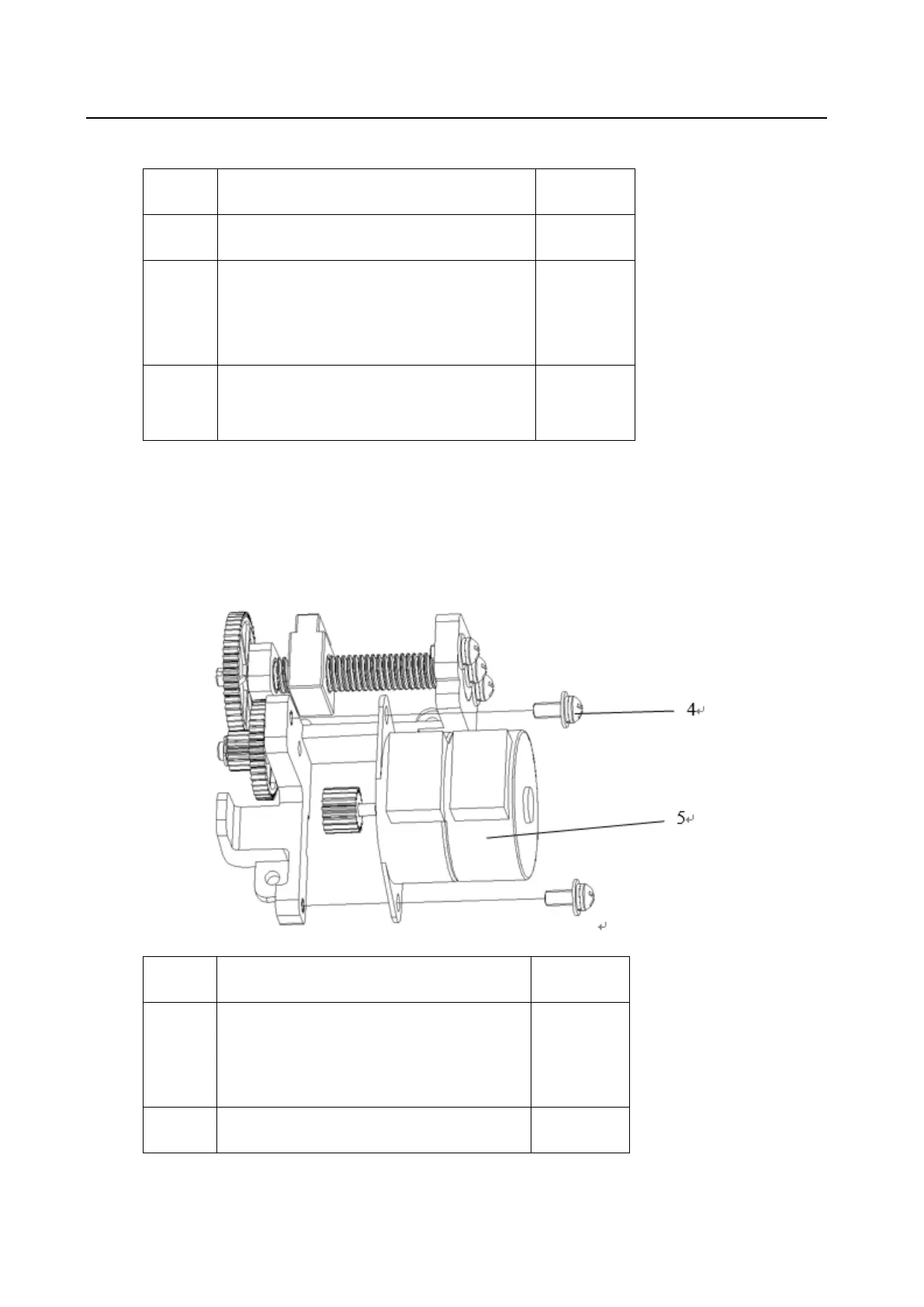

No.
Part Name
Quantity
1
Door drive assembly
1
2
Cross recessed pan head, spring washer, and
flat washer combination screw M2x6 GB
9074.4
2
3
PT2.3*6 cross recessed pan head drilling PT
thread tapping screw
1
1. Remove the two cross recessed pan head, spring washer, and flat washer combination screws
M2x6 GB 9074.4 (2) and the PT2.3*6 cross recessed pan head drilling PT thread tapping screw
(3).
2. Remove the motor connection cable, and take down the door drive assembly.
No.
Part Name
Quantity
4
PM2.5*6 cross recessed small pan head
machine thread screw+spring washer+flat
washer assembly
2
5
HP-60 door control two-layer motor
1
3. Remove the two PM2.5*6 cross recessed small pan head machine thread screw+spring
